Chapter 3 - Hardware Installation

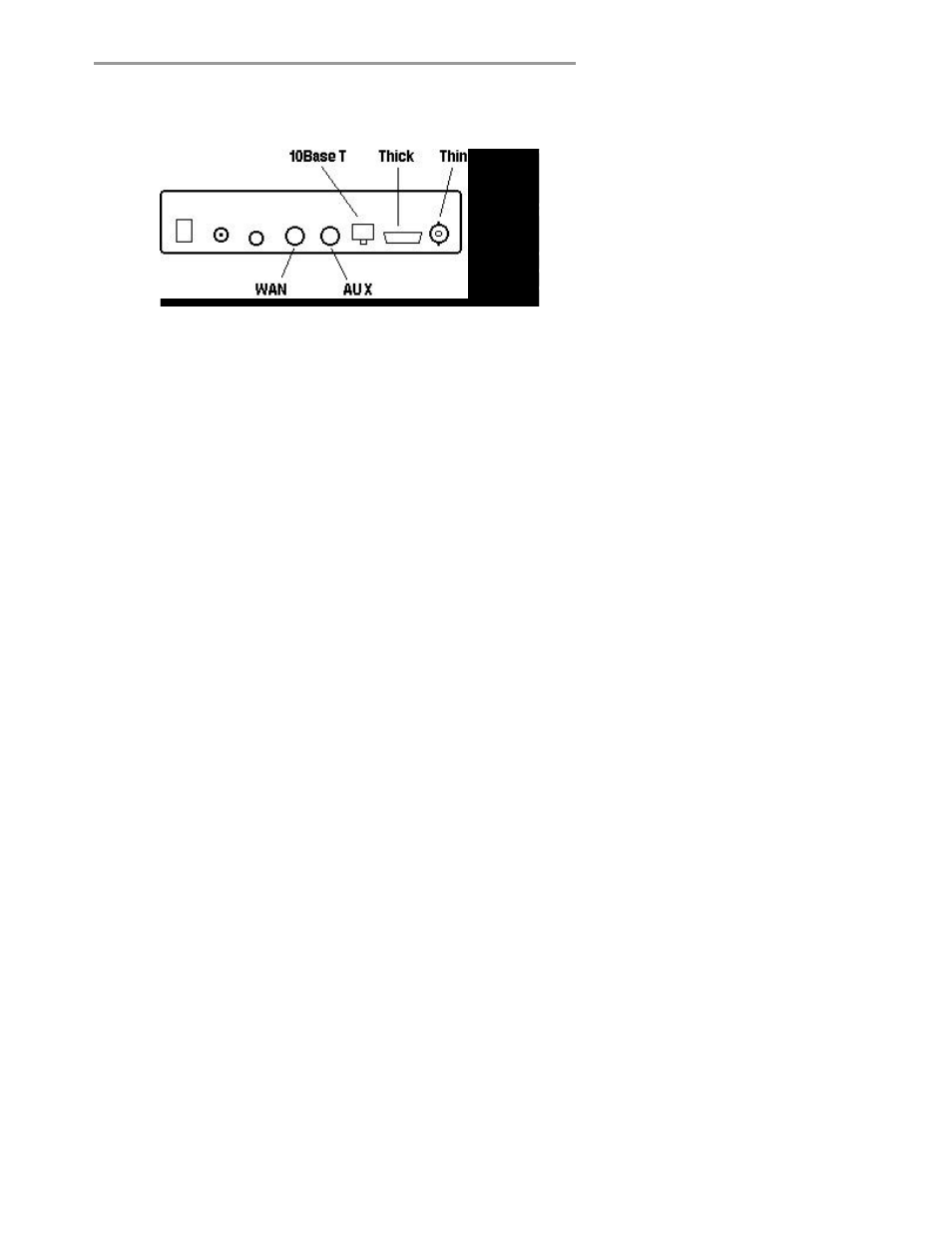

BR Router Back Panel

This section of the manual describes how to connect the BR Router to your Ethernet
network and your wide area communications device. In summary, the steps for
installation are:

1.

Make sure the router is powered down and the power supply is not plugged
in to the wall.

2.

Wall mount the router, if required.

3.

Connect the router to the Ethernet network.

4.

Connect the router to the wide area line communications device.

5.

Power up the line communications device.

6. Plug in the power supply and power up the router.

Mounting the Router

The BR Router can be left standalone on a desktop or equipment table, or can be
wall mounted.

v

Note

:

Wall mounting requires a wall-mount bracket kit (part number A00-0987)

from DCB.

For wall mounting, follow the instructions included with the wall-mount bracket
kit.
