1. Outline
The M32192T2-PTC is a converter board for featuring the debugging function such as real-time tracing when using the SDI emulator,
M32170T-SDI, M32100T-SDI-E, M32100T2-SDI-E, M32100T3-SDI-E or M32100T5-SDI-E with the M32192FxxFP.
Compared with the M32100T3-SDI-E or M32100T5-SDI-E, more loss of trace information occurs when using with the
M32170T-SDI, M32100T-SDI-E or M32100T2-SDI-E.
For the M32192T2-PTC, using with the M32100T3-SDI-E or M32100T5-SDI-E is recommended.
2. Package Components

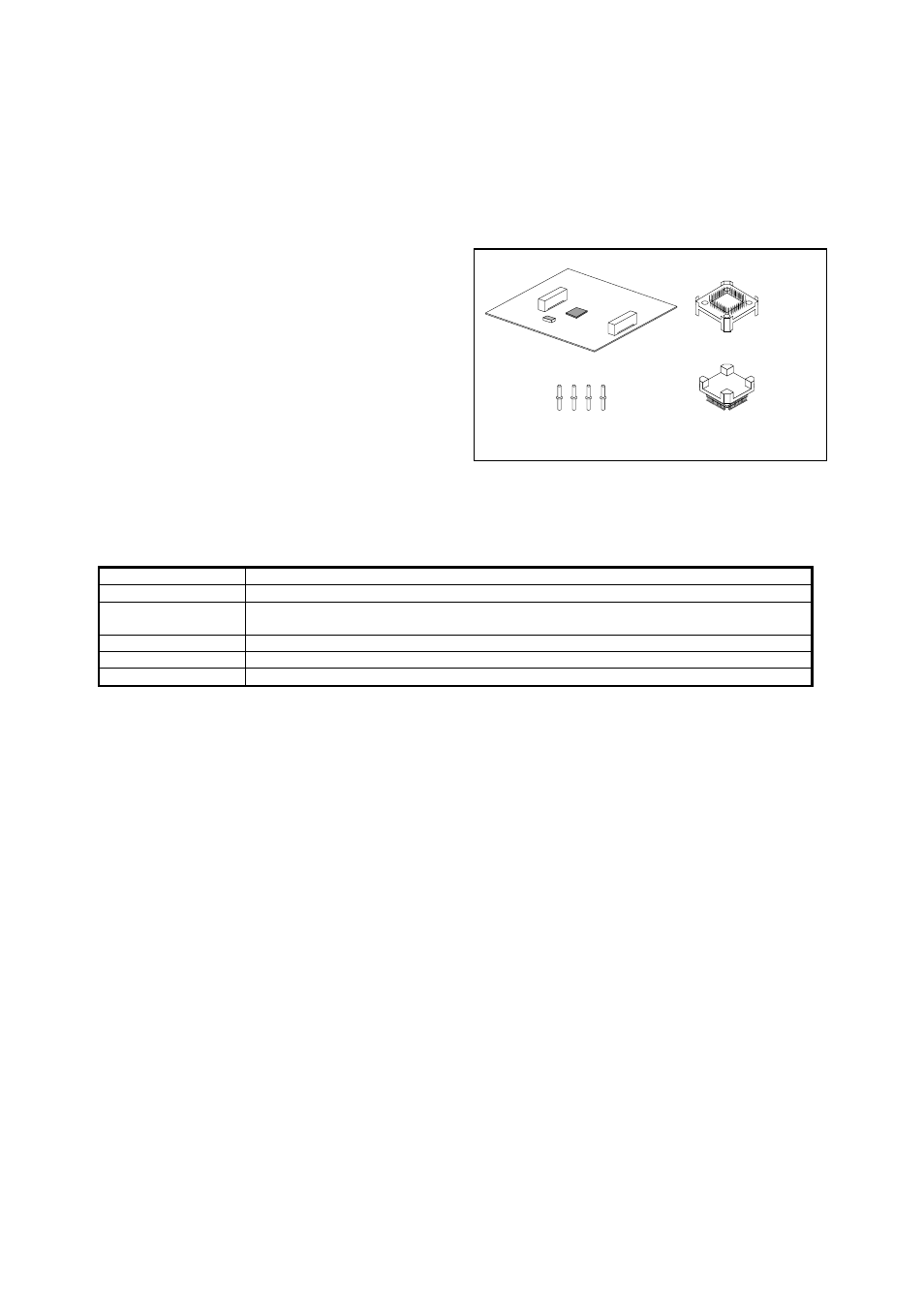

Figure 2.1 Package components
NQPACK144SD-ND
YQPACK144SD
M32192T2-PTC
YQ-GUIDE(x4)
(1) M32192T2-PTC converter board
(2) YQPACK144SD (made by Tokyo Electech Corporation)
(3) NQPACK144SD-ND (made by Tokyo Electech Corporation)
(4) YQ-GUIDE x 4 (made by Tokyo Electech Corporation)
(5) M32192T2-PTC User’s Manual (This manual)
(6) M32192T2-PTC User’s Manual (Japanese)
3. Specifications
Table 3.1 Specifications
Applicable package 144-pin LQFP (PLQP0144KA-A, previous code 144P6Q-A)
Applicable MCU M32192FxxFP
Supported emulator M32170T-SDI, M32100T-SDI-E, M32100T2-SDI-E, M32100T3-SDI-E or M32100T5-SDI-E
With the M32170T-SDI or M32100T-SDI-E, separately available M3T-PTC-CNV is required.
Mounted MCU M32192F8VWG
Clock 20MHz
MCU power supply
Supplied from the user system
4. Usage
The M32192T2-PTC can be used for debugging and on-board evaluation in common by mouting the NQPACK144SD-ND on the
user system.
(1) For debugging
Mount the NQPACK144SD-ND (included with the M32192T2-PTC) on the 144-pin QFP foot pattern of the user system. Then
connect the M32192T2-PTC via the YQPACK144SD. As the M32192F8VWG is mounted on the M32192T2-PTC, all functions
of the emulator such as real-time tracing can be used.
Before using the M32192T2-PTC, be sure to read “8. Precautions” on page 6.
(2) For on-board evaluation
Mount the M32192FxxFP and the HQPACK144SD (separately available) in that order on the NQPACK144SD-ND on the user
system.
(2/6)
