Audio

L

R

Audio

L

R

Y

Pb

Pr

Video

HDMI

The output panel of other device

Back Panel Connections

Connecting YPbPr Component device (Better Video Quality)

To connect a component device, such as a DVD player, follow these steps:
1. Connect the COMPONENT IN 1,2 Y/Pb/Pr jack on the back of TV to the video output jacks of device via video cable (green,
blue and red).
2. Connect the COMPONENT IN 1,2 R-AUDIO-L jacks on the back of TV to the audio output jacks of device via audio

cable. Notice the left channel jack and plugs are white and the right channel jack and plugs are red.

Component Video Connection

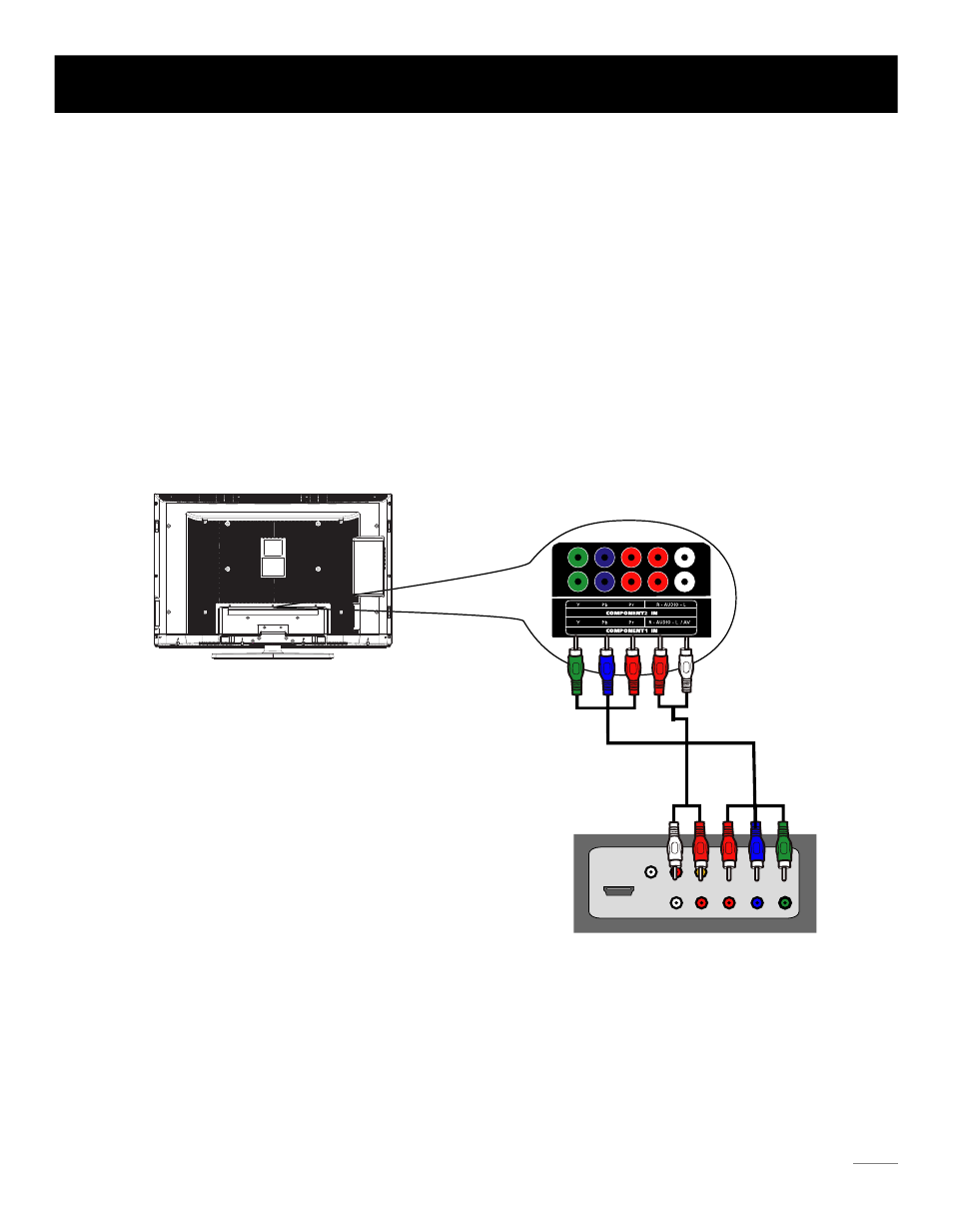

The picture below is an example of a connection using the component video jack.

Note: Y/Pb/Pr jacks are component video. This kind of video signal has better display quality.

The back of TV

13

English-
