P10.pdf, Back panel connections, English-12 – RCA 42PA30RQ User Manual
Page 13: The back of tv the output panel of other device, Composite video connection
Audio
L
R
Audio
L
R
Y
Pb
Pr
Video
HDMI
Back Panel Connections
Connecting AV Composite device (Good Video Quality)
To connect an composite AV device, such as a DVD player, follow these steps:
1. Connect the Video In jack on the back of TV to the video output jacks of device via video cable (yellow).
2. Connect the R-AUDIO-L/AV jacks on the back of TV to the audio output jacks of device via audio cable.
Notice the left channel jack and plugs are white and the right channel jack and plugs are red.

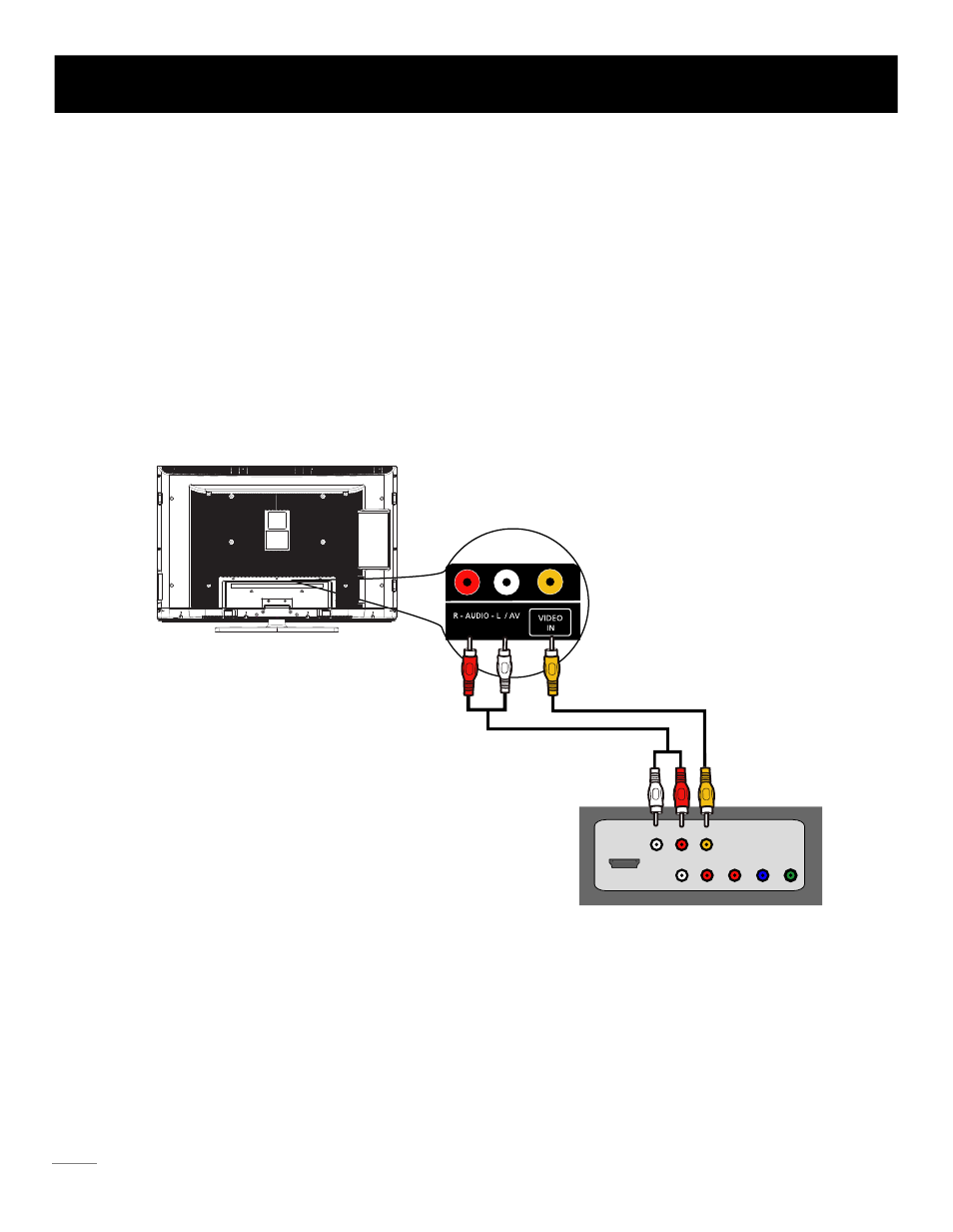

Composite Video Connection
The picture below is an example of a connection using the composite video jack.
Note: AV signal belongs to composite video. This kind of video signal has regular good display quality.
The back of TV
The output panel of other device
English-12
