16
Connect Components
(continued)

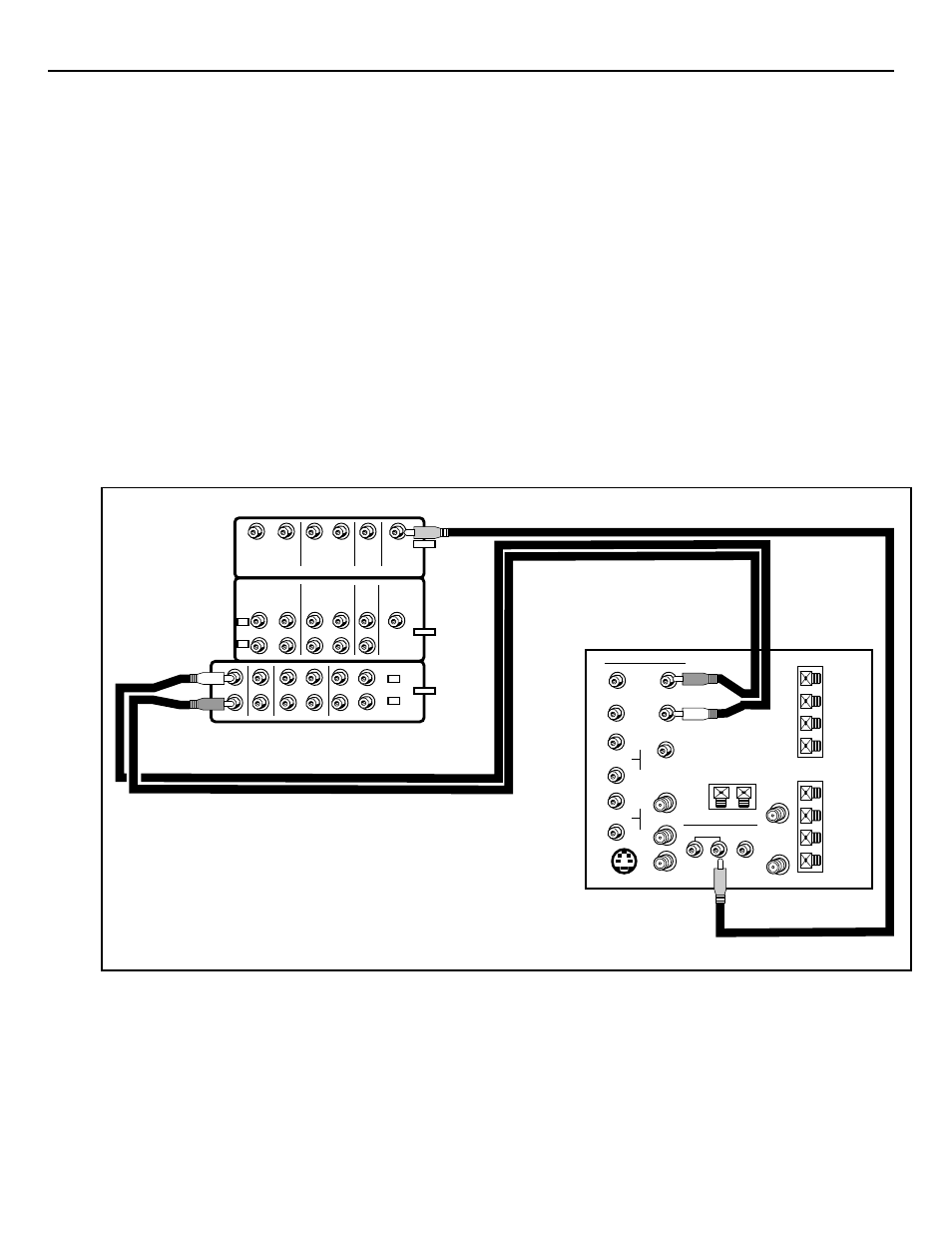

➤ Connect Audio/Video Receiver
The audio/video receiver should not be plugged in until all of the
wires and cables are connected – including the speaker wires. To
connect the audio/video receiver, use one six foot three-wire
audio/video cable and speaker wire from the accessory kit.
❑
1
. Attach one end of the three-wire audio/video cable to the
audio/video receiver by inserting the yellow plug into the VIDEO
MONITOR OUT
jack, the red plug into the AUDIO TV R jack and the
white plug into the AUDIO TV L jack.
❑
2.
Attach the other end of the three-wire audio/video cable to the jack
panel extension cable by inserting the yellow plug into the VIDEO
INPUT 2
jack, the red plug into the AUDIO SELECT OUT R/MONO
jack and the white plug into the AUDIO SELECT OUT L jack.
L
R
VCR 1
VCR 2/LD
DSS
MONITOR
OUT
VCR 1
DSS
VCR 2/LD
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
TV
CD
TAPE 1/DAT
TAPE 2/MONITOR
VIDEO
AUDIO
R
L
AUDIO
R/
MONO
SELECT OUT
HI-FI OUT
R/
MONO
INPUT 1
R/
MONO
INPUT 2
L
L
L
S-VIDEO
VIDEO
INPUT
SELECT
OUT
2
1
CONVERTER
ANT B
ANT A
CABLE/ANTENNA
L
R
+
–
–
+
FRONT
L
R
+
–
–
+
SURROUND
IN FROM
ANT
OR
CABLE
CENTER
+
–
Jack Panel
Extension Cable
A/V Receiver
V
SUB WOFFER
OUT
L
R
AUDIO
V
L
R
SUBWOOFER
OUT
IN FROM
DSS ANT
(continued on next page)
