RIGID PIPE VENTING SYSTEMS
BASIC HORIZONTAL & VERTICAL TERMINATIONS

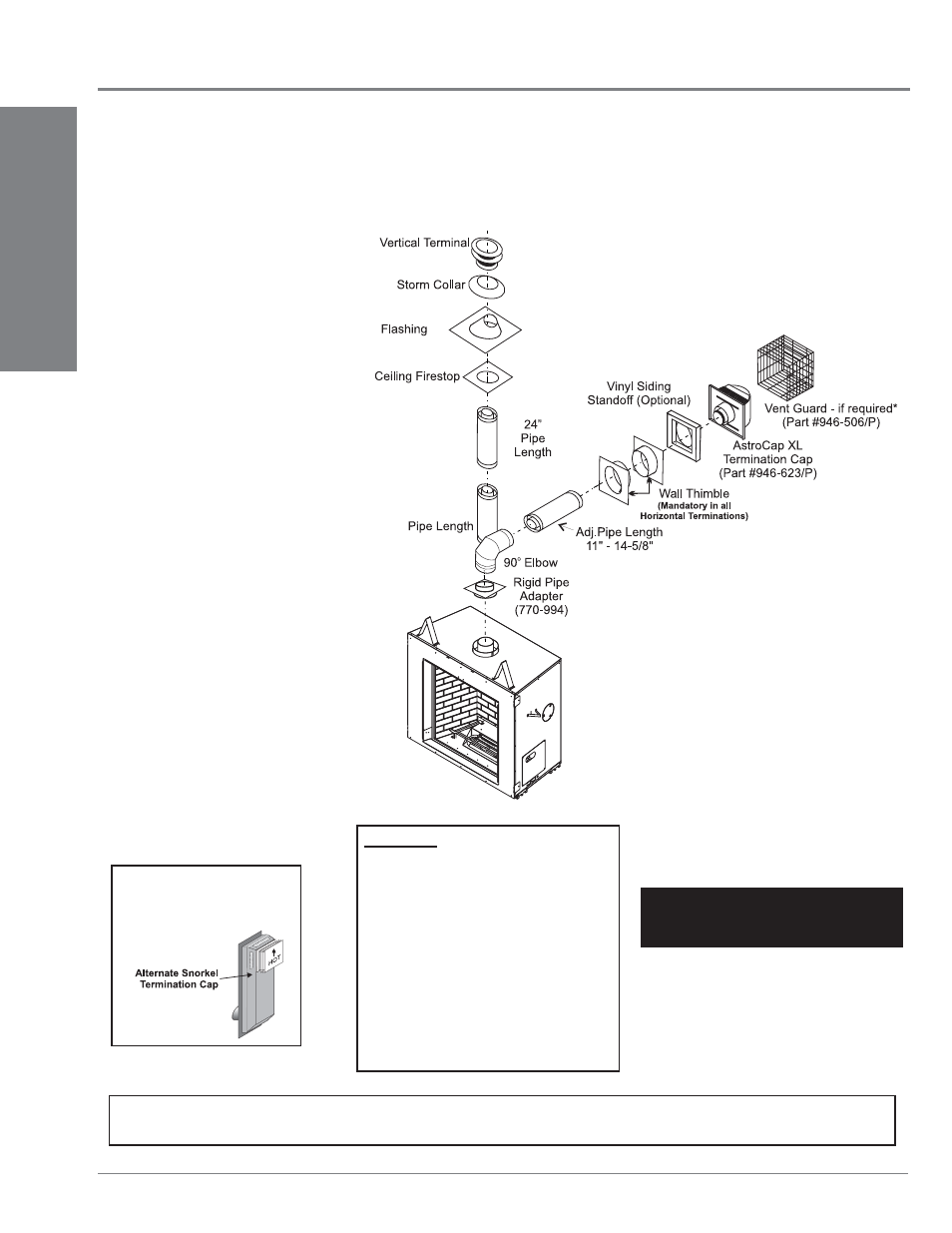

Rigid Pipe Vent Systems offer a complete
line of component parts for installation of both
horizontal and vertical installations. Many items
are offered in decorative black, as well as gal-
vanized fi nish.
The minimum components required for a basic
horizontal termination are:
1 AstroCap XL
1 90 o Elbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
The minimum components required for a basic
vertical termination are:
1 Vertical Termination Cap
1 Rigid Pipe Adaptor
1 Lengths of pipe to adequately
penetrate
roof
1 Ceiling Firestop
1 Flashing
1 Storm
Collar
Wall thickness is measured from the back
standoffs to the inside mounting surface of
termination cap. For siding other than vinyl
furring strips may be used, instead of the vinyl
siding standoff, to create a level surface to
mount the vent terminal. The Terminal must
not be recessed into siding. Measure the wall
thickness including furring strips.
If a Vinyl Siding Standoff is required (it must
be used with vinyl siding), measure to outside
surface of wall without siding and add 2
inches.
Alternate
Horizontal Termination
Caps
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
The FPI AstroCap XL TM is certifi ed for installations using FPI venting systems as well as Simpson Dura-Vent ® Direct Vent Pro and Selkirk Direct-Temp.
AstroCap XL TM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary
trademarks of Simpson Dura-Vent Co. Inc.
This product has been evaluated by Intertek
for using a Rigid Pipe Adaptor in conjunction
with Simpson DV Pro, Metal-Fab Sure-Seal
and Selkirk Direct-Temp systems. Use of these
systems with the Rigid Pipe adaptor is deemed
acceptable and does not affect the Intertek WHI
listing of components.
WARNING:
Do not combine venting components from
different venting systems.
Expection: However, use of the the AstroCap
XL
TM is acceptable with all systems.
INSTALLATION
Part # 5DT-ST14 (14")
Part # 5DT-ST36 (36")
