Page 11
11

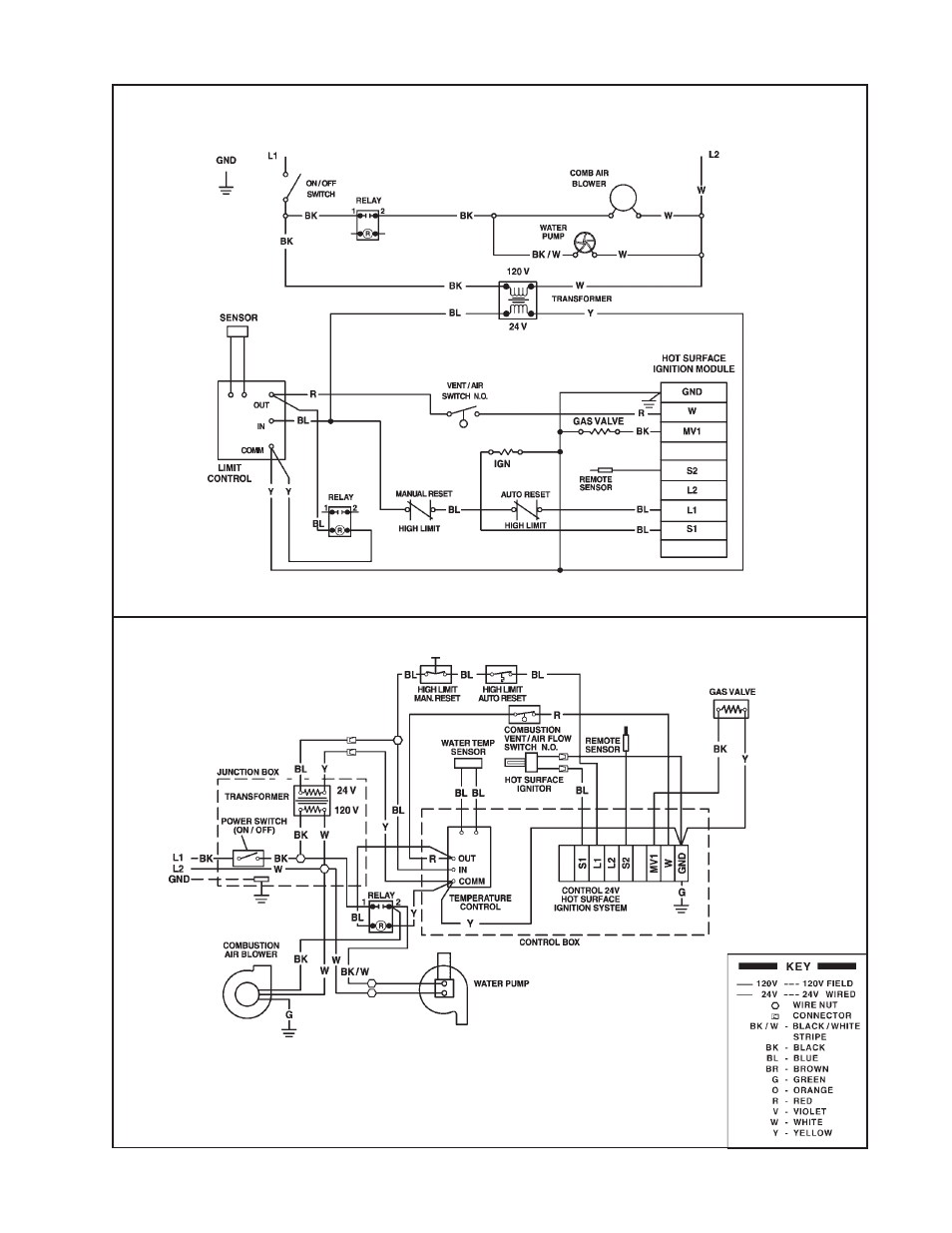

LADDER DIAGRAM
CONNECTION DIAGRAM
DANGER: SHOCK HAZARD
Turn off electrical power to boost heater before servicing any
component in the heater to prevent equipment damage or
personal injury.
NOTE:
If it is necessary to replace any of the original wiring, it
must be replaced with 105°C rated wire or its equivalent.
