7. Lay the DP-900's keyboard onto the stand and
secure it with the screws (in four places).
Place the keyboard so that it is centered, both front to
back and left to right.
* Take care not to allow your hands to become caught when
holding the keyboard.

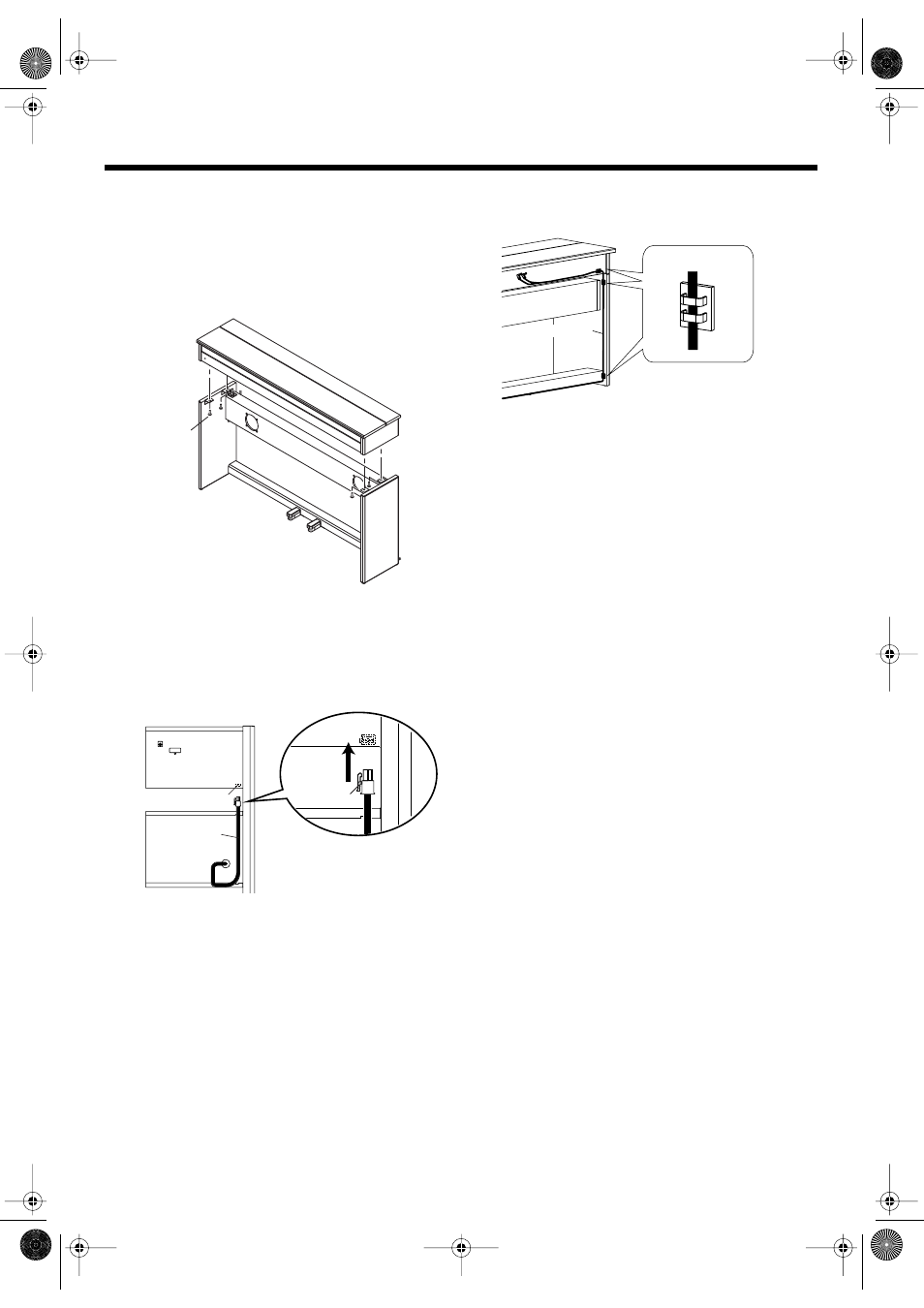

fig.st7.e
8. Connect the speaker cable extending from the
rear of the speaker box to the DP-900’s speaker
connector.
Press the speaker cable completely into the connector so
that it is securely fastened.
fig.st8.e
9. Connect the pedal cables to the Pedal [Damper]
jack and [Soft] jack.
Connect the brown plug to the Damper jack, and the
black plug to the Soft jack.
10. As necessary, affix cord clamps as shown in
the diagram to fasten the pedal cable.
fig.st9.e
When Moving the Instrument
Disconnect the AC cord and cables from the DP-900.
Then lift the piano while keeping it level, and move it with
care, so that you do not drop it on your feet, or get your hands
caught.
Check the stability of the pedal, and make adjustments as
necessary.
When Disassembling
Disassemble the unit by carrying out assembly Steps 1-10 in
reverse order.
When Changing the Orientation of the
Speaker Box
Be sure to completely disassemble the unit, change the
speaker box orientation, then reassemble it.
Attachment
screws
DP-900 Rear
Clip Portion
Hold and insert the cable so that
the clip portion extends into the
stand and is securely connected.
Speaker Connecter
Speaker cable
Cord Clamps
Pedal Cord
