Location of Controls
CHANNEL
POWER VCR TIMER RECORD
REW PLAY FWD RECORD POWER STOP•EJECT PAUSE TV•VCR
TRACKING
Hi-Fi STEREO SAP
CHANNEL or TRACKING up or down
Selects next higher or lower channel in the
VCR’s channel memory.
Adjusts tracking during playback.
FWD (Fast Forward)
Fast forwards the tape when the VCR is
stopped.
Searches the picture forward during
playback.
PAUSE
Pauses the tape for stop-action viewing
during playback.
Pauses the tape during recording to
prevent recording unwanted material.
PLAY
Plays a tape.
Press with RECORD to start the
VCR recording.
POWER
Turns the VCR on or off.
RECORD
Press RECORD and PLAY at the same time
to start the VCR recording.
Used for express recording.
Remote Sensor
Receives signals from the remote control.
Aim the remote at this sensor with no
objects between them.
REW
Rewinds the tape when the VCR is
stopped.
Searches the picture in reverse during
playback.
STOP•EJECT
Stops the normal functions such as record,
playback, rewind, fast-forward, or pause.
Press when the VCR is stopped to eject the
cassette.
TV•VCR
Switches the picture signal so that it either
comes from the VCR or the TV channel.

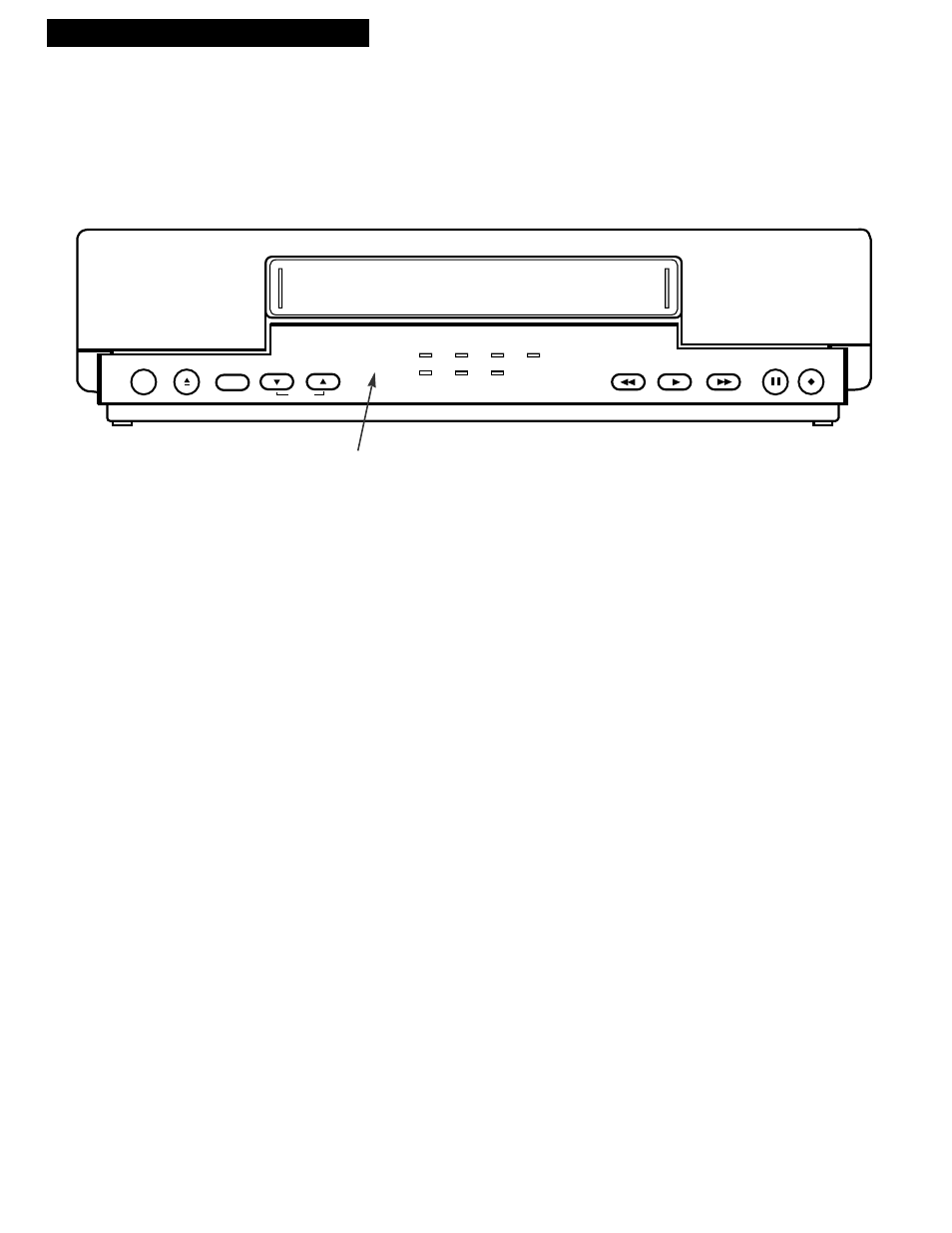

Front Panel
Tape Compartment
Remote Sensor
