User Guide 5

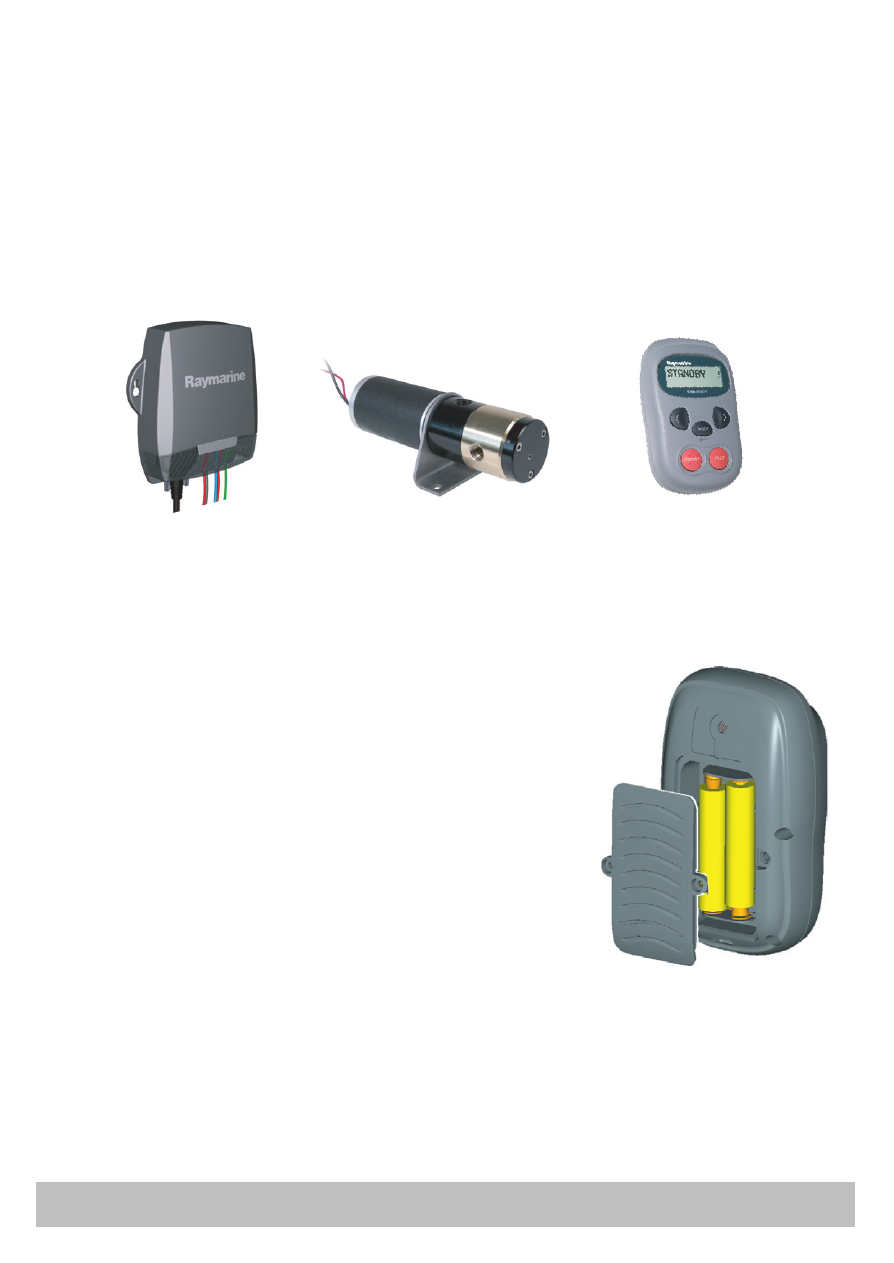

System Components
The S1000 system is comprised of a Course Computer, Controller and
Hydraulic Pump. Please ensure that these have been installed and
commissioned correctly using the S1000 Installation Guide. Finally, check
that your system is receiving a good GPS signal through the NMEA or
SeaTalk connection.
Changing the Controller batteries
The S100 Controller is powered by 2 AAA
batteries which are located in the back of the unit.
Ensure that only good quality alkaline batteries
are used. Do not use rechargeable batteries.
A small cross-head screwdriver will be required to
undo the battery cover screws.
Remove the batteries from the unit if you do not
intend using it for more than a month.
Follow the battery manufacturers’s instructions
for proper care and disposal of used batteries.
D7640-1
S100
Controller
Hydraulic
Pump
S1000 Course
Computer
D7641-1
