Rover Mowers Limited Ride-on Mower Grass Catcher
3.8 Outlet Chute Installation
WARNING
When working on the cutterhead
the mower must be:
•
Stationary with the park brake
applied
•
The engine switched off
•
The ignition key removed.
1. Raise the stone guard (A) fitted to the mower
cutterhead and slip the tongue (B) of the
outlet chute between the stone guard and the
mower cutterhead.
(Refer Figure 3.7)
2. Lower the cutterhead stone guard (A) and slide
the outlet chute rod (C) into the tongue of
the outlet chute.
3. Retain the outlet chute rod by fitting the small
spring clip (D) into the eye of the rod.

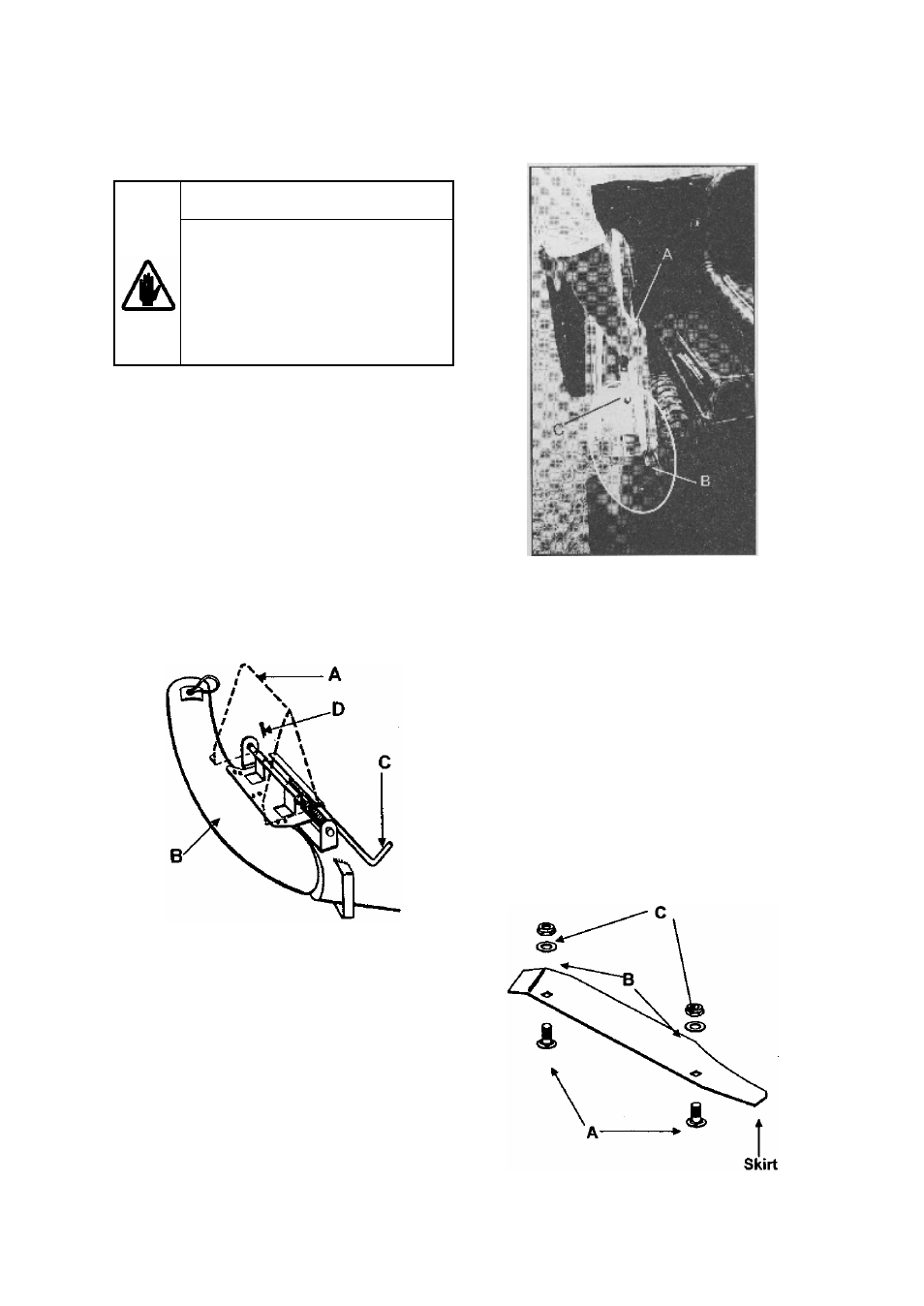

Figure 3.7 – Outlet Chute Installation
3.9 Grass Transfer Tube
1. Hold the grass transfer tube by the handle (A)
and slide the tube into the opening in the front
panel of the grass catcher front plate. Then
slide the tube forward over the open end of
the outlet chute till it engages with the stop on
the outlet chute.
(Refer Figure 3.8)
2. Retain the tube by clipping the elasticised strap
(B) on the outlet chute over the retaining
button on the transfer tube (C).
(Refer Figure 3.8)
Figure 3.8 - Fitting the Transfer Tube
3.10
Skirt Installation –
(Model 198 cutterhead only)
1. Raise the cutterhead of the mower to the
highest cut position.
2. Position the skirt on the underside of the front
of the cutterhead and attach using the two
5/16” x 3/4“ cuphead bolts (A), pushed in
from the underside of the cutterhead so that
the flat washer (B) and nyloc nut (C) are on
the top side of the cutterhead.
(Refer Figure 3.9)
Figure 3.9 - Skirt Installation
