Rover Mowers Limited Ride-on Mower Grass Catcher
3.5 Mounting the Grass Catcher
The grass catcher is supported off the rear towbar of
the Rover Rancher, Raider and Lawn King ride-on
mowers. Refer figure 3.3.
l. Lift the grass catcher assembly onto the mower,
positioning the support saddles on the rear
towbar on the mower.
2. Secure the grass catcher to the support bracket by
two 3/8" x 1" unc bolts and 3/8" unc nycloc nuts.
Placing a 3/8" flat washer under the nut and bolt
head.
Grass Catcher
Model 108 8109

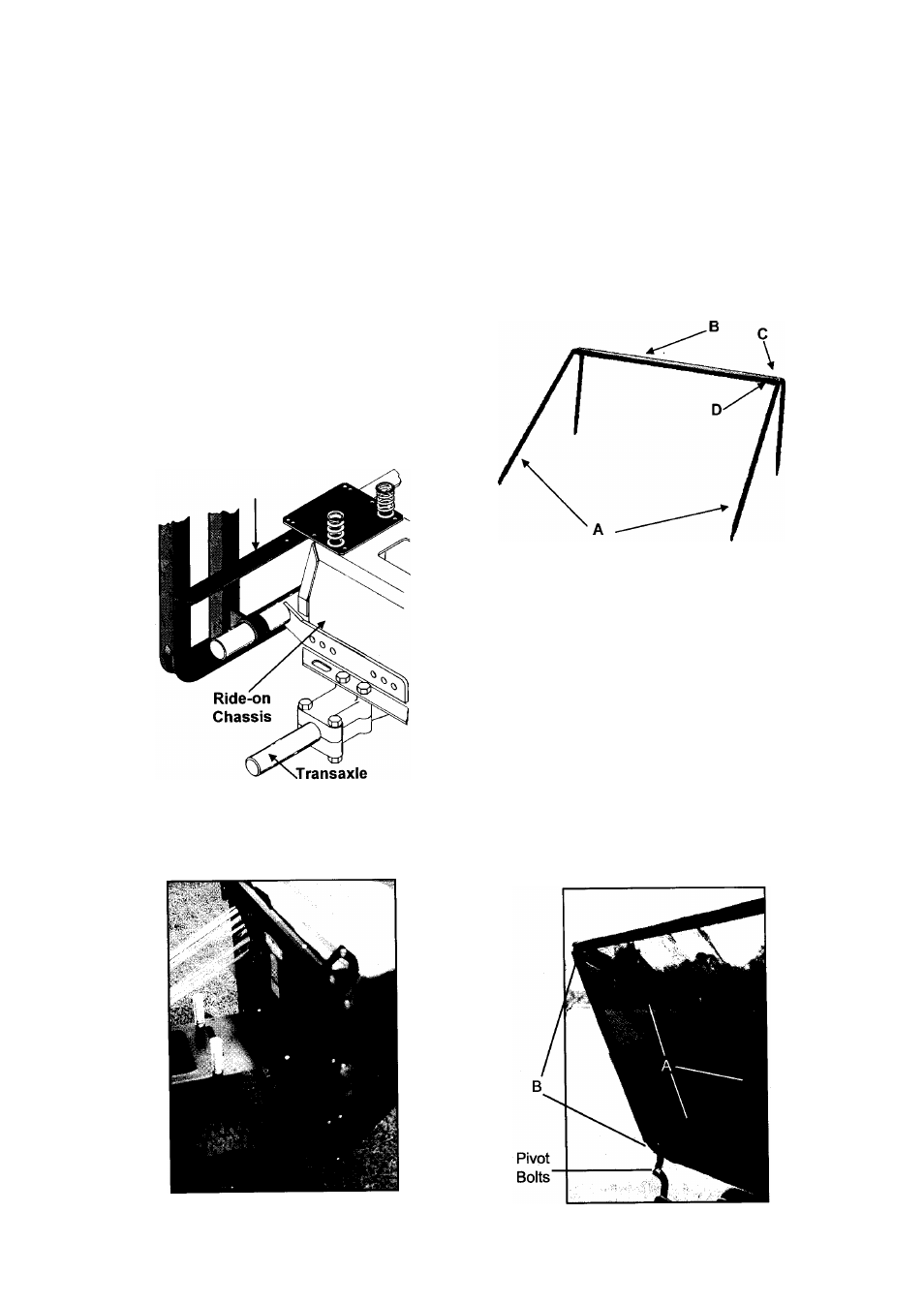

Figure 3.3 - Grass Catcher Support
Figure 3.4 - Mounting the Catcher Assembly
3.6 Frame Assembly
The internal frame assembly consists of the two side
frames (A) and spreader plate (B)
These components are fastened together using '/,6' x 1
" round head screws (C) and '/16" unc. nyloc nuts (D)
(Refer Figure 3.5).
Figure 3.5 - Internal Frame Assembly
3.7 - Frame Installation
1. With the grass catcher assembly mounted on the
mower, open up the grass catcher fully. To hold
the grass catcher open, tighten the pivot bolts.
(Refer Figure 3.6)
2. Insert the internal frame assembly (A) into the
grass catcher, aligning the mounting holes on the
internal frame over the locating bolts on the
catcher assembly.
3. Secure using four I/4" nyloc nuts (B). (Refer
Figure 3.6).
4. Loosen the two pivot bolts so that the catcher bag
assembly swings easily.
Figure 3.6 – Frame Installation
