RF-500WPS2

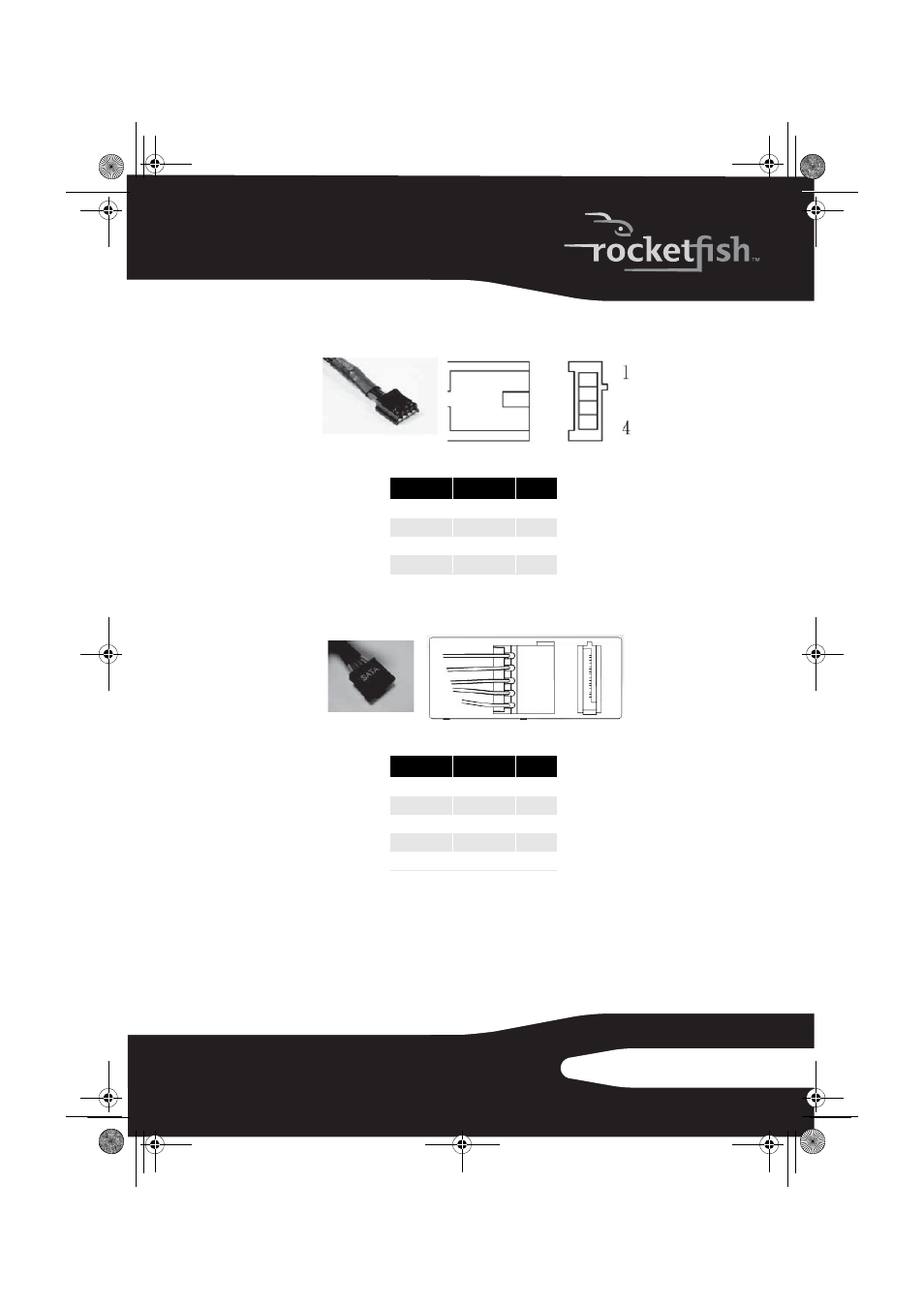

Floppy drive connector
SATA power connector
Color
Signal
Pin
Red
+5 VDC
1
Black
Com
2
Black
Com
3
Yellow
+12 VDC
4
Color
Signal
Pin
Yellow
+12 VDC
1
Black
Com
2
Red
+5 VDC
3
Black
Com
4
Orange
+3.3 VDC
5
