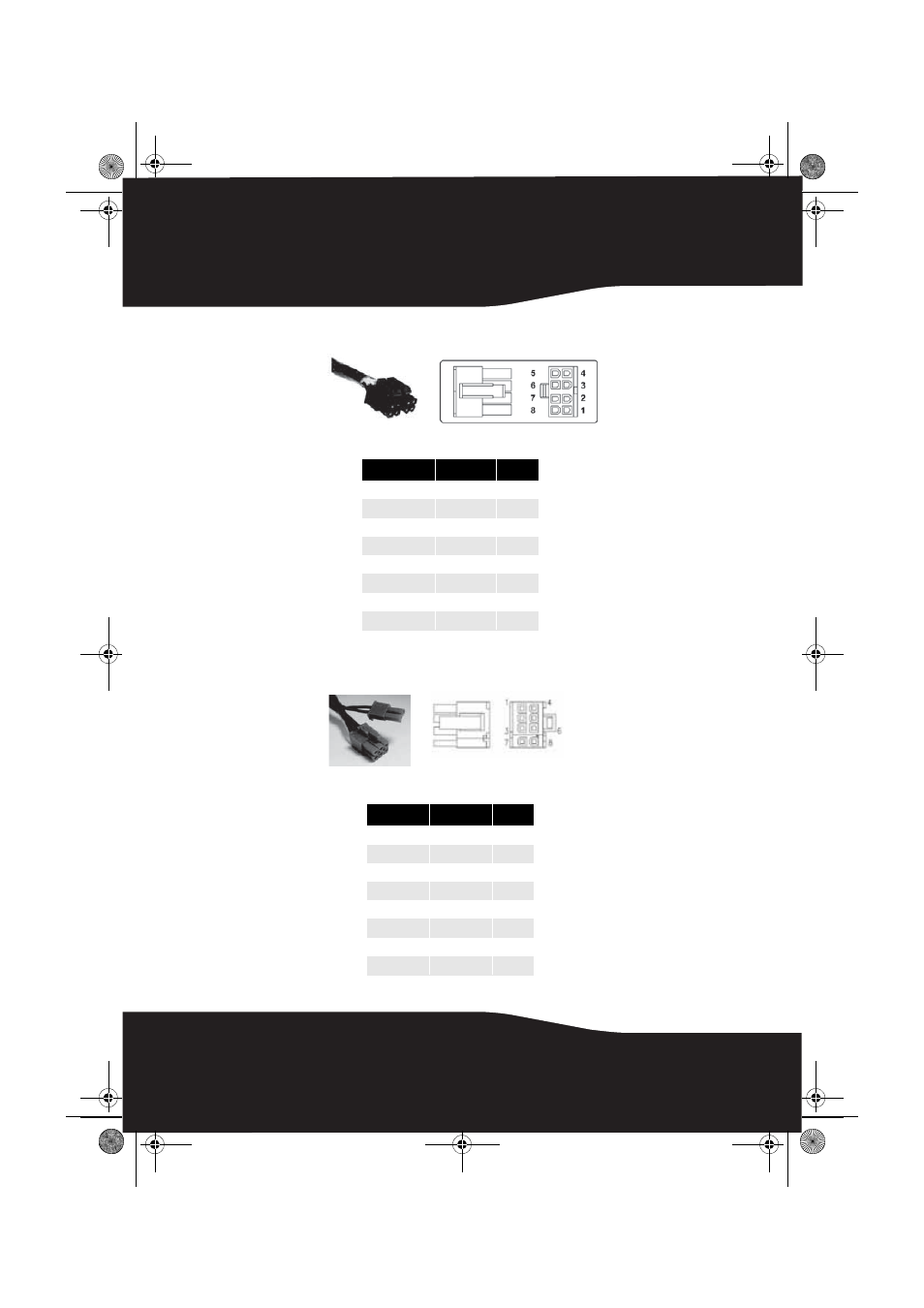

+12 V connector 8 (4+4)-pin
PCI Express connector
Color Signal Pin
Black Com 1
Black Com 2
Black Com 3
Black Com 4
Yellow/Black +12 VDC 5
Yellow/Black +12 VDC 6
Yellow/Black +12 VDC 7
Yellow/Black +12 VDC 8
Color Signal Pin
Yellow +12 VDC 1
Yellow +12 VDC 2
Yellow +12 VDC 3
Black Com 4
Black Com 5
Black Com 6
Black Com 7
Black Com 8
