Appendix

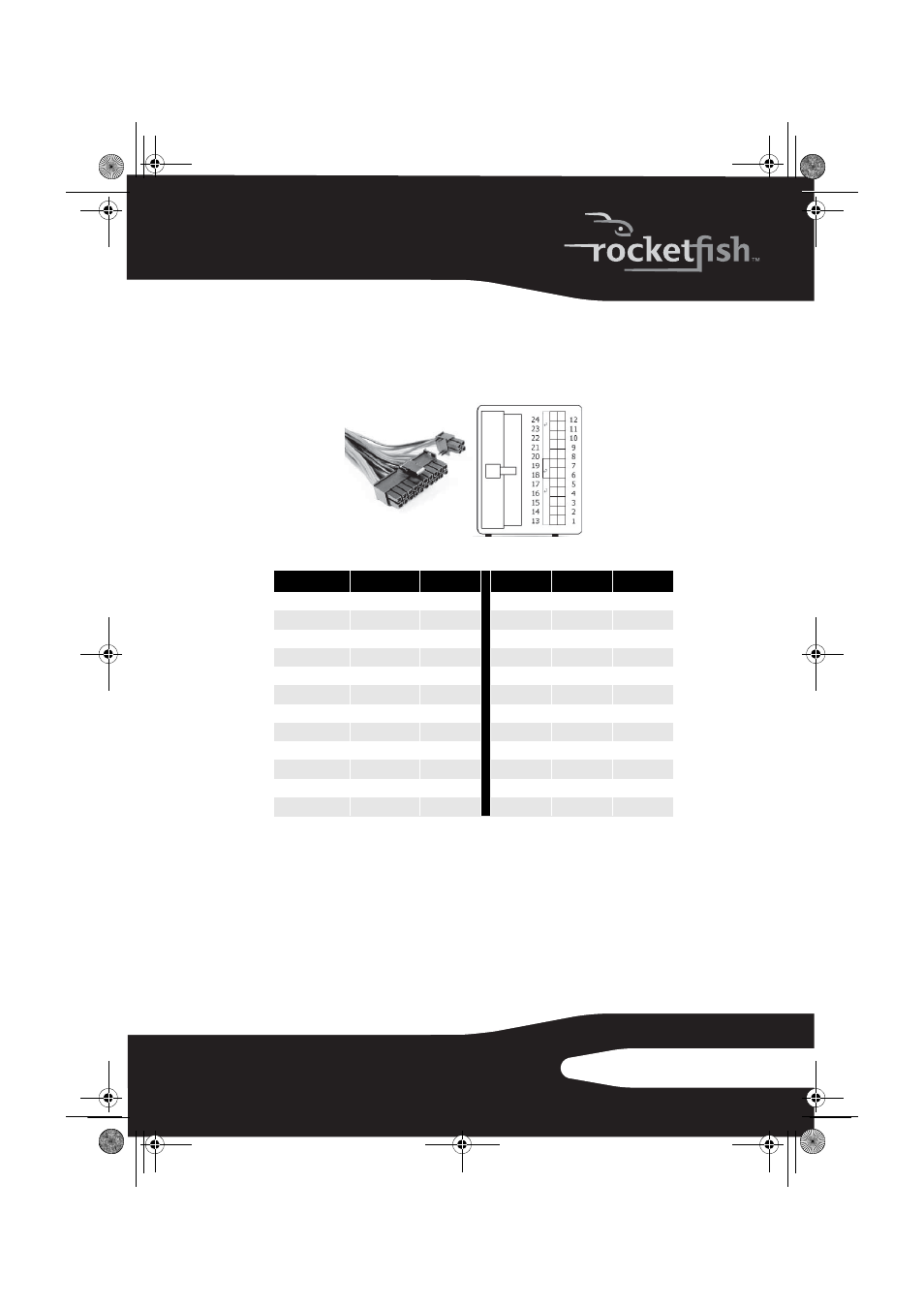

Main power connector
Voltage Color Pin Pin Color Voltage
Com Black 24 12 Orange +3.3 V
+5V Red 23 11 Yellow +12 DC
+5 V Red 22 10 Yellow +12 DC
+5 V Red 21 9 Purple +5 Vsb
N/C N/C 20 8 Gray PWR_ON
Com Black 19 7 Black Com
Com Black 18 6 Red +5 V
Com Black 17 5 Black Com
PS_ON Green 16 4 Red +5 V
Com Black 15 3 Black Com
-12 V Blue 14 2 Orange +3.3 V
+3.3 V Orange 13 1 Orange +3.3 V
