Replacing Parts
5
1
Replacing Parts

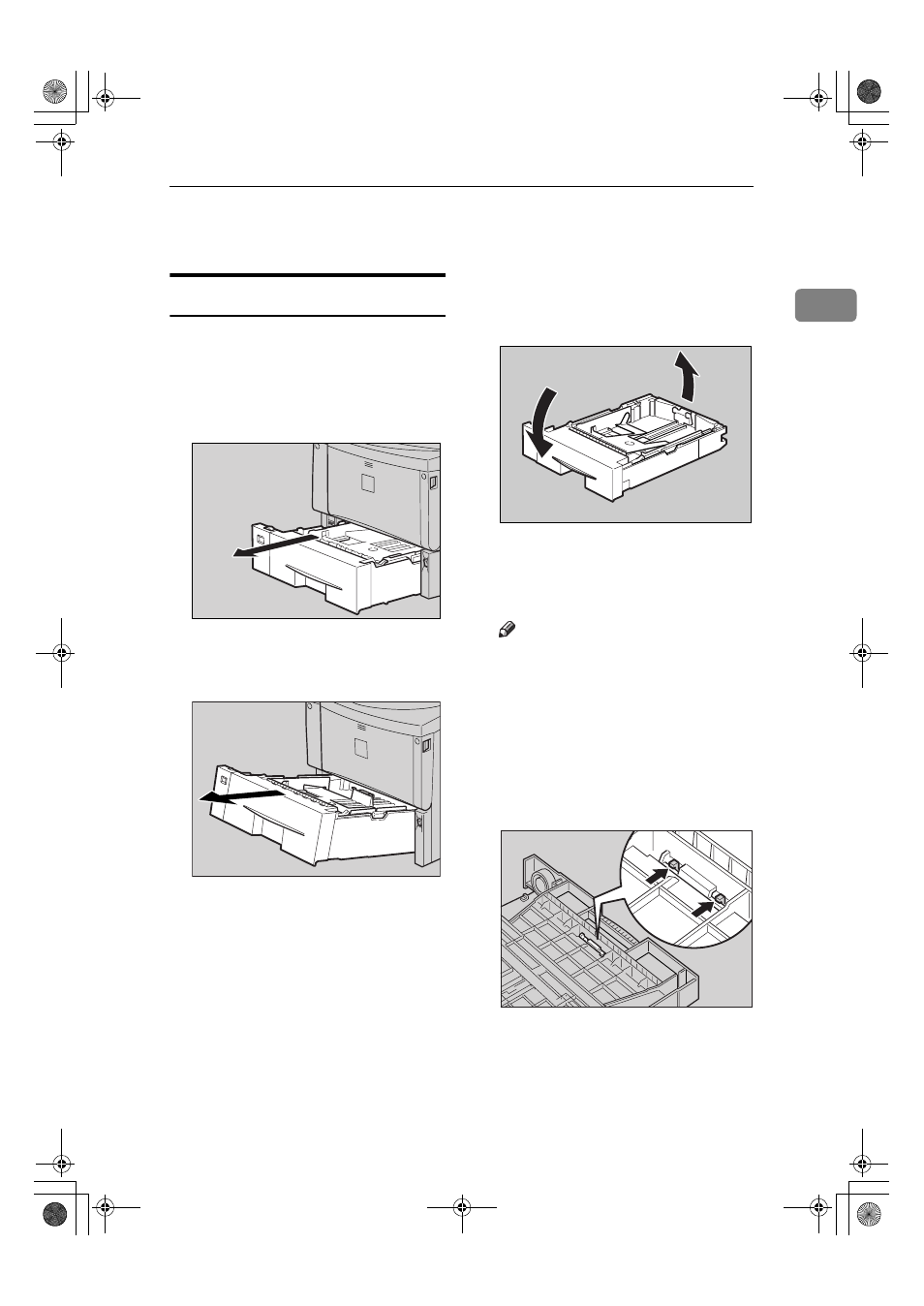

Replacing the Friction Pad
Replace all the friction pads in the
tray. The following procedure shows
how to replace the tray's friction pad
(Tray1).
AAAA
Pull out the paper tray until it stops.
BBBB
While lifting the front side of the
tray, pull it out of the printer.
CCCC
Remove paper from the paper
tray. Place the tray upside down
on a flat surface.
DDDD
Use a sharp-pointed item like a
ball-point pen, to release the two
catches that lock the friction pad.
Note
❒ The friction pad may fall off
when the catches are released.
Place your hand over the fric-
tion pad while releasing the
catches.
❒ The friction pad spring may
come off. Be careful the spring
does not fall off and become
lost.
ZKDX270J
ZKEY140E
ZKEM160E
ZKEM170E
