Replacing Parts
9
1
Important
❒ Do not insert the roller on the
back of the socket, or the printer
might be damaged.
❒ Insert the metallic part of the
roller on the socket. If you insert
the sponge part of the roller, the
roller might be damaged.
GGGG

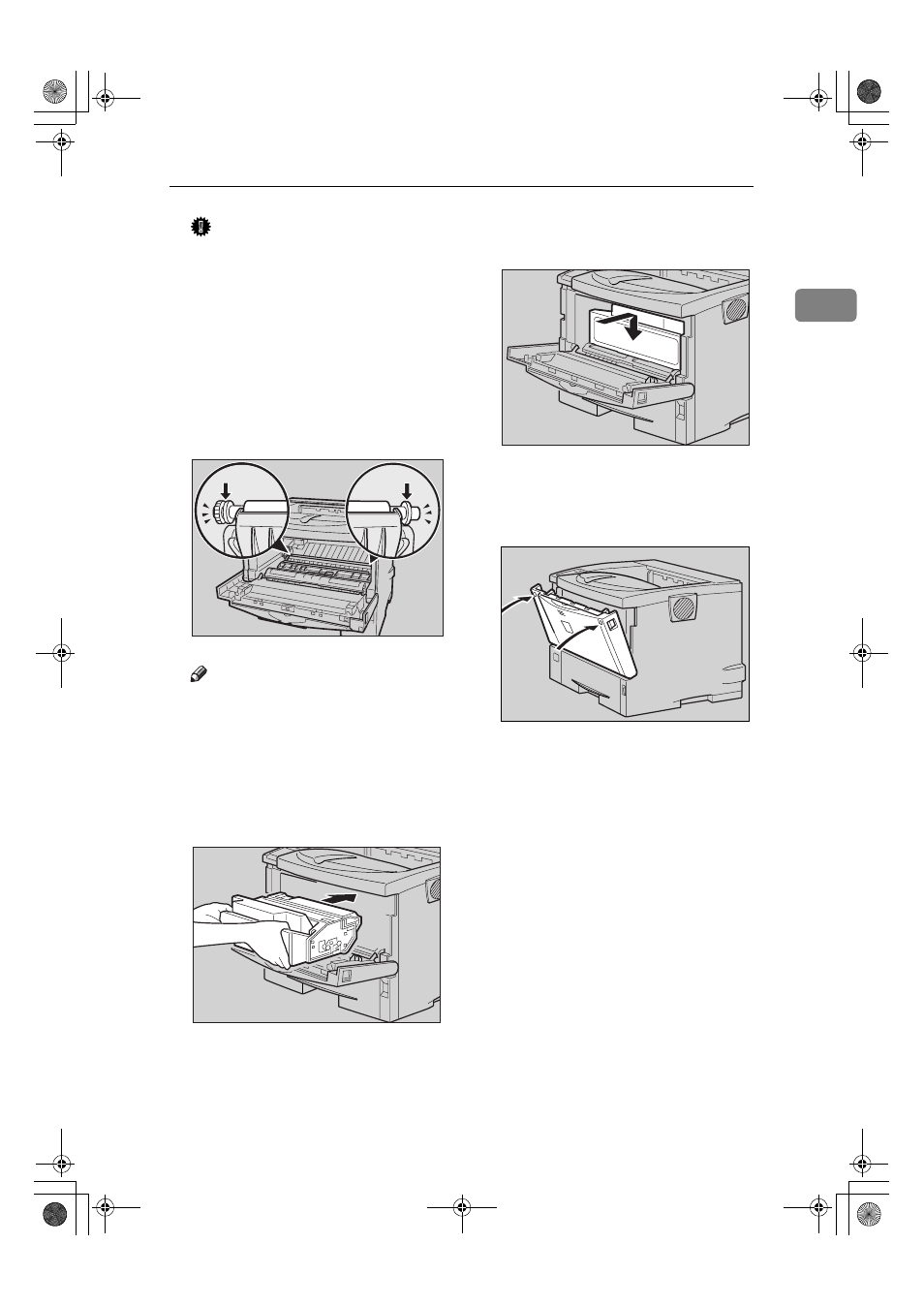

Push down the green parts of
both sides of the roller until it
clicks as shown in the illustration.
Note
❒ When the transfer roller is set,
the transfer roller cover will re-
turn to its original position au-
tomatically.
HHHH
Holding the grips of the toner car-
tridge, insert it into the printer
until it stops.
IIII
Lower the toner cartridge when it
touches the back.
JJJJ
Close the front cover by pressing
the left and right side indenta-
tions.
KKKK
Take the gloves off and go to p.10
“Replacing the Fusing Unit”.
ZKEM221E
ZKET120E
ZKET140E
ZKEH130E
