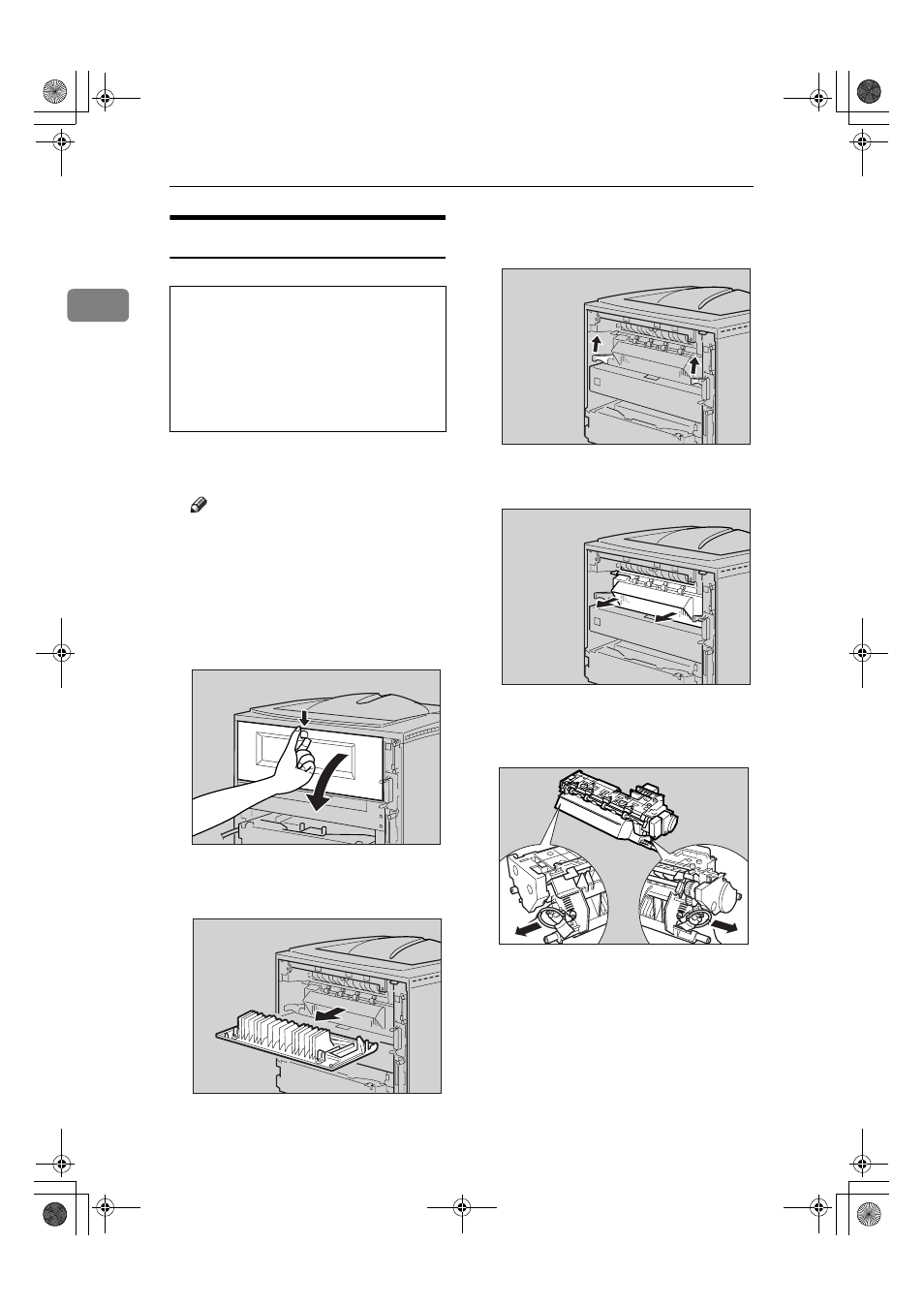

Replace Maintenance Kit

Replacing the Fusing Unit

R CAUTION:

AAAA

If the rear cover is attached to the
printer, remove it.

Note

❒ Proceed to step

if the optional

Duplex Unit was removed in
step

, "Replacing the Paper

Feed Rollers".

A Place a finger in the printer's

rear cover finger hole (upper
center) and pull it open.

B Remove the rear cover in a hor-

izontal direction.

BBBB

Lift the lock levers of the fusing
unit as shown in the illustration.

CCCC

Pull the fusing unit out.

DDDD

Pull out the pins on both sides of
the new fusing unit.

• The fusing unit becomes very

hot. When installing the new fus-
ing unit, turn off the printer and
wait about an hour. After that, in-
stall the new fusing unit. Not
waiting for the unit to cool down
can result in a burn.

ZKEX210E

ZKEX220E

ZKEX222E

ZKEX223E

ZKEM010E
