Section 1 Configuration
CAUTION
Use an CSPACK112A1110H01 socket (socket
(manufactured by Tokyo Eletech Corporation) for the
TBP-112 package IC socket on the user system.

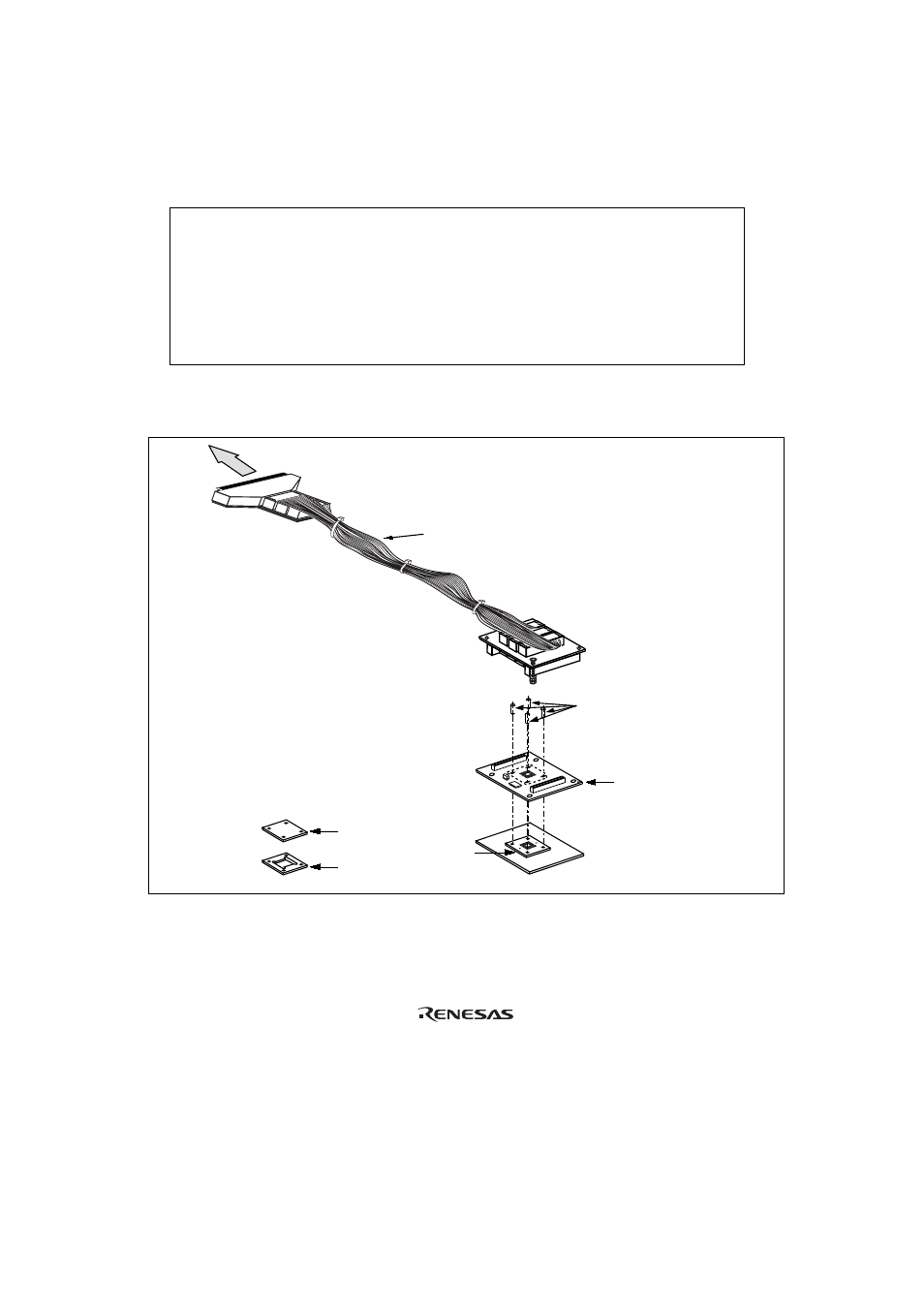

Figure 1 shows the configuration of the HS2214ECB61H user system interface cable for the
TBP-112 package.
User system
IC socket
To emulator station
Cable body
Cable head
Screws (M1.6 x 8 mm)
Cover
(for fastening cable head)
Spacer
Figure 1 HS2214ECB61H User System Interface Cable
1
