2.3

Recommended Dimensions for User System Mount Pad

Figure 7 shows the recommended dimensions for the mount pad (footprint) for the user system with
an IC socket for an TBP-112 package (CSPACK112A1110H01: socket (manufactured by Tokyo
Eletech Corporation). Note that the dimensions in figure 7 are somewhat different from those of the
actual chip's mount pad.

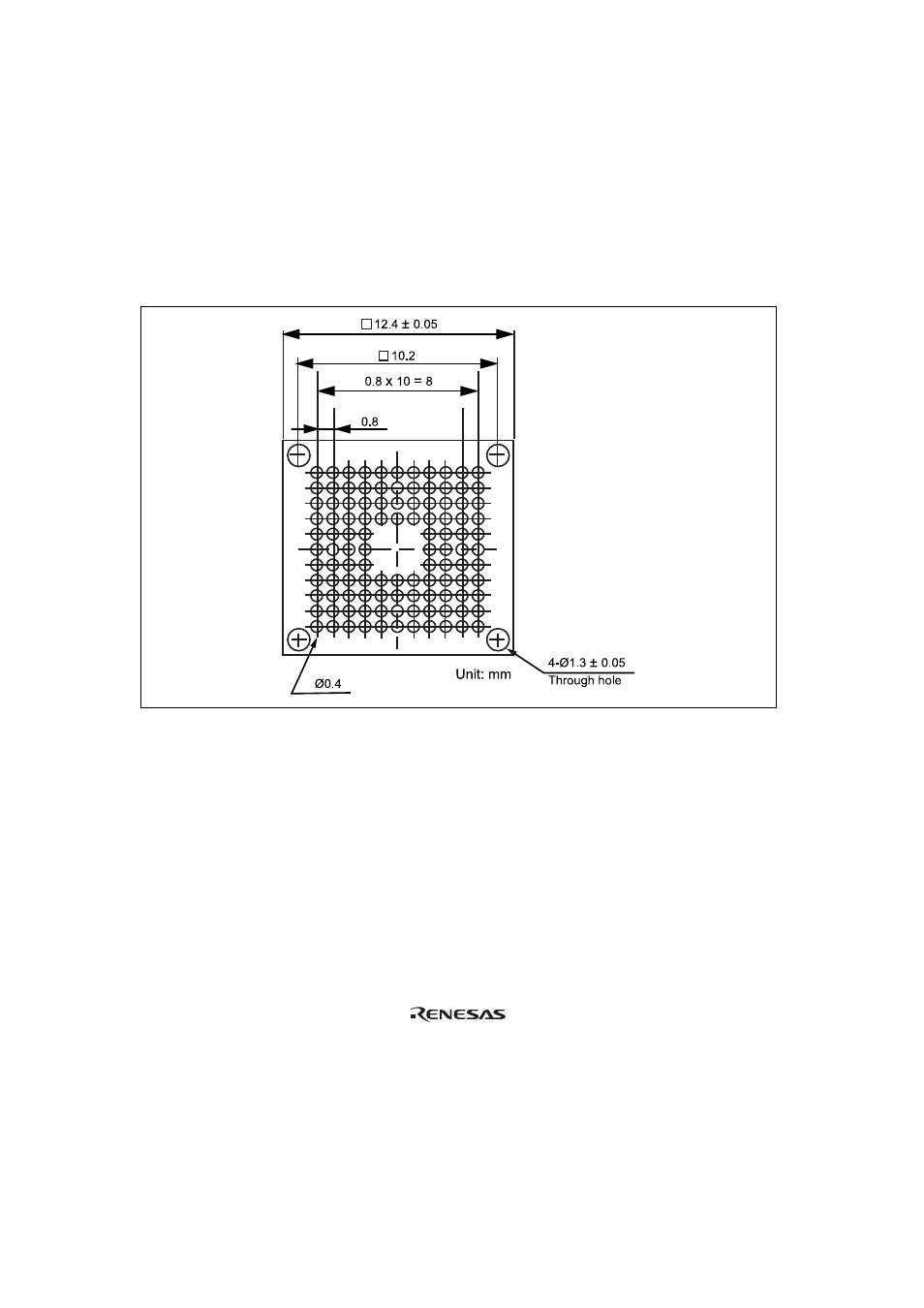

Figure 7 Recommended Dimensions for Mount Pad
