(4/4)

7. Oscillator Circuit


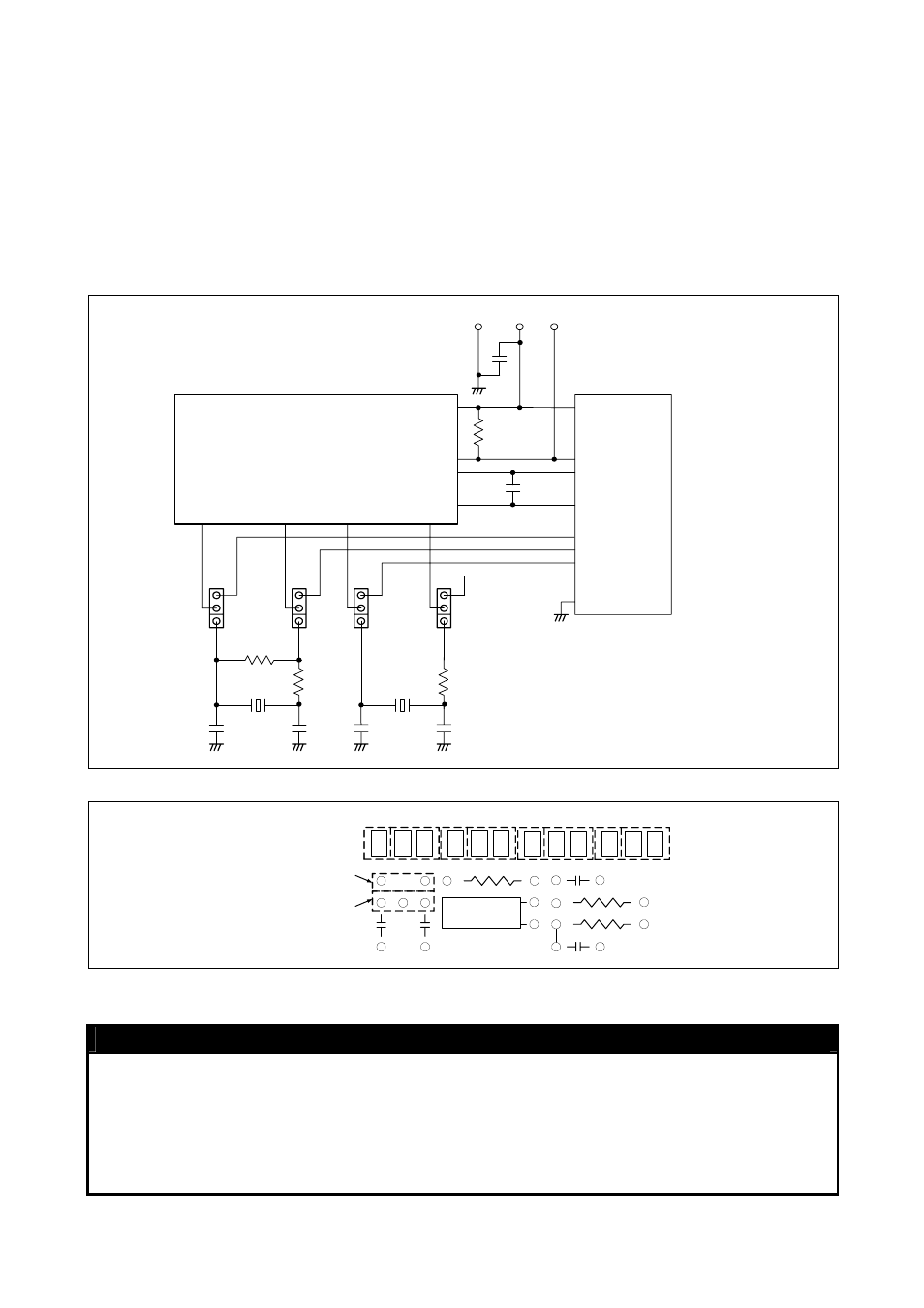

This product has two oscillator circuit patterns for the main clock XIN and sub-clock XCIN. Figures 6 and 7 show the oscillator
circuit diagram and oscillator circuit pattern, respectively. Select one of them according to the oscillator circuitry of the user system.

(1) When using the internal oscillator circuit of the MCU:

The oscillator circuit on the user system may not oscillate because a converter board is used between the emulator MCU and the
user system. In this case, set the jumper switch to INT and mount an oscillator circuit on the M38D29T2-RLFS’s oscillator
circuit pattern. When using the oscillator circuit on the user system, be sure to set the jumper switch to EXT.

(2) When using an oscillator module IC etc. (self-oscillation):

It is not necessary to mount an oscillator circuit on the M38D29T2-RLFS’s oscillator circuit pattern.

XCIN

XCOUT

XIN

XOUT

+

Vref

AVss

RESET

*

VCC

CN1 - 12b ( AVss)

CN1 - 12a ( Vref )

CN2 - 2b (RESET*)

CN2 - 5b (VCC)

CN1,CN 2

CN2 - 3b ( P61 / Xcin )

CN2 - 3a ( P62 / Xcout )

CN2 - 4b ( Xin )

CN2 - 5a ( Xout )

CN2 - 4a ( Vss)

EXT

INT

EXT

INT

EXT

INT

EXT

INT

JP1

JP2

JP 3

JP 4

C1

C 2

C 3

C4

X 1

X 2

R4

R3

R 2

R 1

C 5

IC1

TP1

RESET

TP 2

GND

TP 3
VCC

C 6

Figure 6 Oscillator circuit diagram

X1

C1

C2

R2

JP2 XOUT

JP1 XIN

JP3 XCIN

JP4 XCOUT

X2

C4

R3

R4

C3

INT EXT

INT EXT

INT EXT

INT EXT

For 3-terminal oscillator

For 2-terminal oscillator

Figure 7 Oscillator circuit pattern

8. Precautions

IMPORTANT

Notes on This Product:

z We cannot accept any request for repair.
z When using the oscillator circuit on the M38D29T2-RLFS, check the output waveform of pins Xout and Xcout by

an oscilloscope.

z When mounting an oscillator circuit on the M38D29T2-RLFS, make sure that 2 mm or more of a DIP pin does not

appear on the rear face (solder side). It may be short-circuited with the DIP pin of the converter board.

z For inquiries about the product or the contents of this manual, contact your local distributor.
