1. Outline
The M38D29T2-RLFS is an emulator MCU board for the 38D2 Group.
2. Package Components
(1) M38D29T2-RLFS 1 pc.
(2) M38D29T2-RLFS User's Manual (This manual) 1 pc.
(3) M38D29T2-RLFS User's Manual (Japanese) 1 pc.
The M3T-F160-64NSA is included with the M38D29T2-RLFS-FP.
The M3T-F160-64NSD is included with the M38D29T2-RLFS-HP.
For details on the M3T-F160-64NSA and M3T-F160-64NSD, refer to each user’s manual.
3. Specifications
Table 1 Specifications
Emulator
M38000T2-CPE
PC4701 + M38000TL2-FPD
Operation mode Single-chip mode
Max. operating
frequency
Vcc = 4.5 to 5.5V: 12.5MHz (frequency/2 mode)
Vcc = 4.0 to 5.5V: 8.0MHz (frequency/2 mode)
Vcc = 2.0 to 5.5V: 4.0MHz (frequency/2 mode)
Vcc = 1.8 to 5.5V: 2.0MHz (frequency/2 mode)
Vcc = 4.5 to 5.5V: 16.0MHz (frequency/4 mode)
Vcc = 3.1 to 5.5V: 12.5MHz (frequency/4 mode)
Vcc = 2.0 to 5.5V: 8.0MHz (frequency/4 mode)
Vcc = 1.8 to 5.5V: 4.0MHz (frequency/4 mode)
Vcc = 4.5 to 5.5V: 16.0MHz (frequency/8 mode)
Vcc = 2.0 to 5.5V: 12.5MHz (frequency/8 mode)
Vcc = 1.8 to 5.5V: 8.0MHz (frequency/8 mode)
Vcc = 1.8 to 5.5V: Low-speed mode
Operating power
voltage
1.8 to 5.5 V
4. Connecting the User System

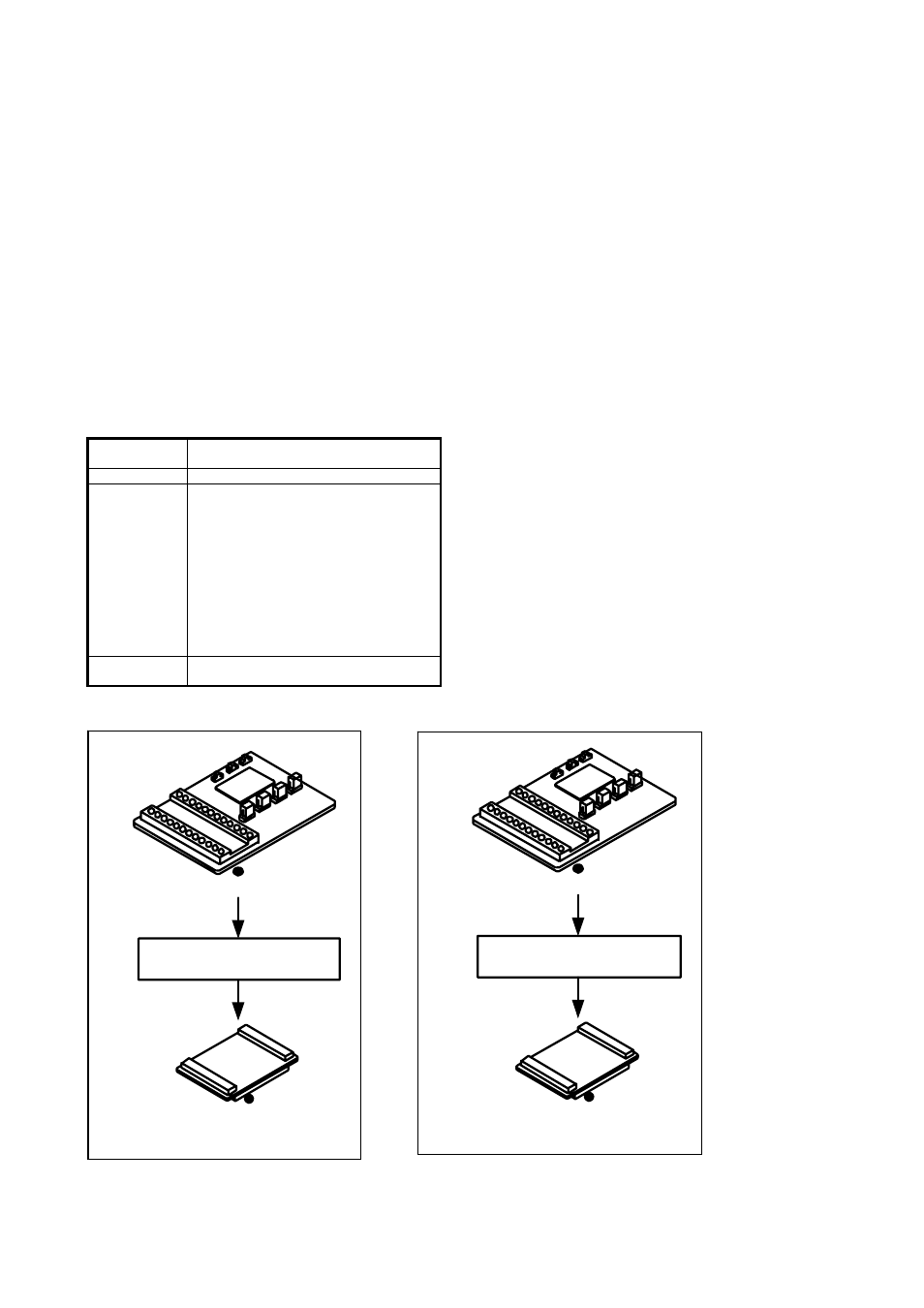

Figure 1 M38D29T2-RLFS-FP Figure 2 M38D29T2-RLFS-HP
M3T - F 160 - 64NSA
64-pin 0.8mm pitch
(included)
M38D29T2-RLFS
M3T - F 160 - 64NSD
64-pin 0.5mm pitch
(included)
M38D29T2-RLFS
(2/4)
