ST80 Navigator Keypad Operation Manual 5

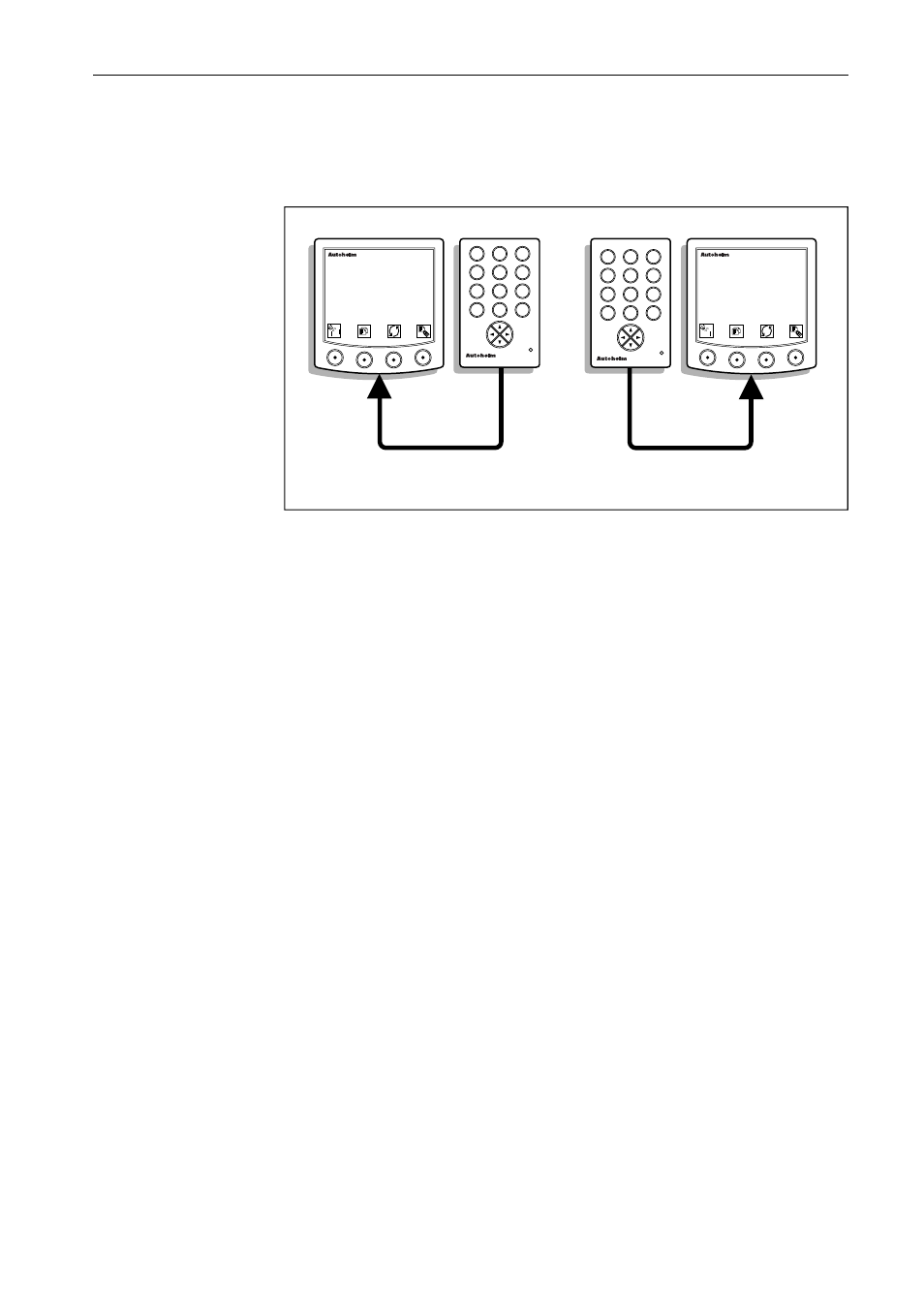

For users with more than one Masterview, the Navigator can be
configured so that it is dedicated to just one Masterview – this is
referred to as linking.
2
def
3
ghi
1
abc
5
mn
6
opq
4
jkl
8
uvw
9
xyz
7
rst
0 del ins
navigator
2
def
3
ghi
1
abc
5
mn
6
opq
4
jkl
8
uvw
9
xyz
7
rst
0 del ins
navigator
D2370-1
LINKED INSTRUMENTS & NAVIGATOR KEYPAD
masterview masterview
SINGLE WP
020o23.82 N
052o04.02 E
SINGLE WP
020o23.82 N
052o04.02 E
For details on how to link Navigator and Masterview modules, please
refer to the Masterview setup chapter.
2.2 General Operating Information
• A short beep is emitted when a key is pressed.
• The small red LED glows when the keypad is operational.
• The brightness of the keypad illumination and power LED is
governed by the system illumination setting.
