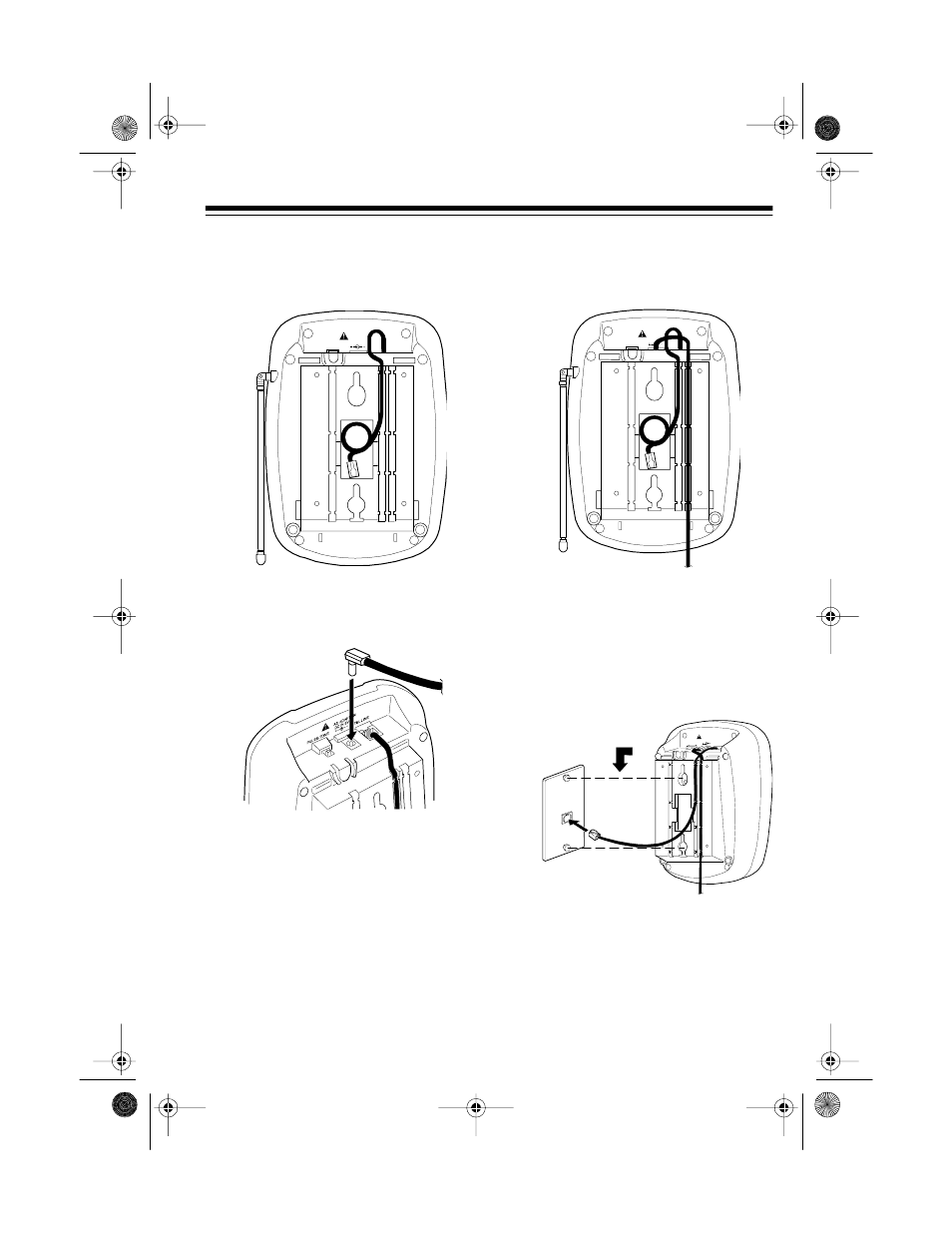

3. Route the modular cord through
the wide right groove on the bot-
tom of the bracket.
4. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack
on the back of the base.
AC ADAPTOR
DC IN 9V
PULSE-TONE TEL LINE
5. Route the adapter’s cord through
the narrow groove on the bottom
of the bracket.
6. Plug the short modular cord into
the wall plate jack, press the
excess cord into the slot in the
center of the bracket, then align
the bracket’s keyhole slots with
the wall plate studs and slide the
base downward to secure it.
7. Plug the adapter into a standard
AC outlet.
8. Lift the base’s antenna to a verti-
cal position.
