Notes:

• If you connected a fax/data modem (one that receives

both fax

and

data calls), be sure to set the AFX-300 to

route data modem calls to the

FAX

jack (see “Special

Features” on Page 26).

• To ensure optimum compatibility with the AFX-300

and avoid disconnected fax calls due to lengthy con-
nection time:

Set the connected fax machine/fax modem’s ring

number feature to its minimum setting (typically 1
ring).

If the connected fax machine/fax modem has a

delayed ring (or answer) feature, turn it off or set
it to the minimum delay setting.

3. To connect a TAD to the AFX-300, plug the TAD’s modu-

lar plug into the AFX-300’s

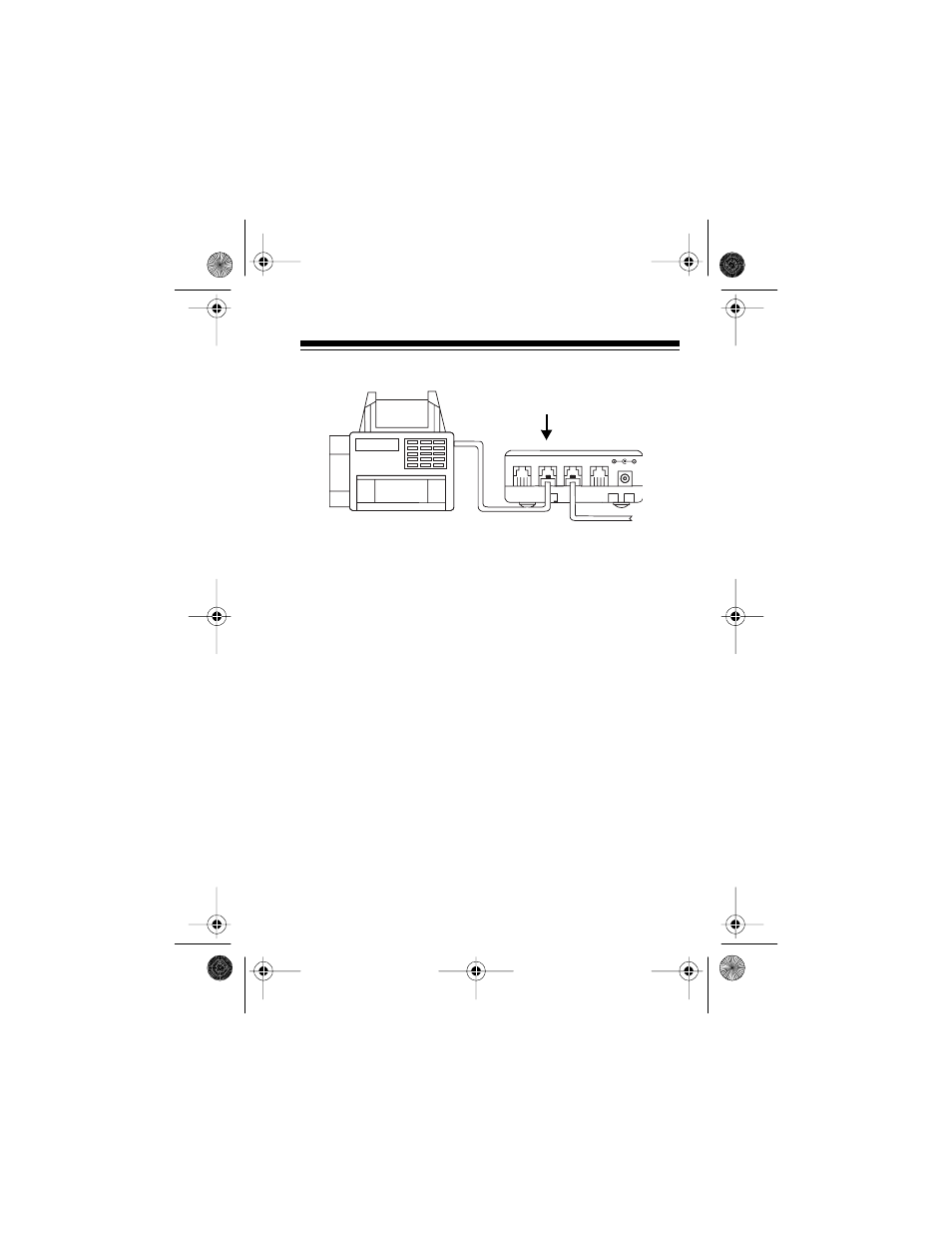

TAD

jack. Also, see “Prepar-

ing a TAD for Use with the AFX-300” on Page 15.

TAD
