NaviTrack ® II

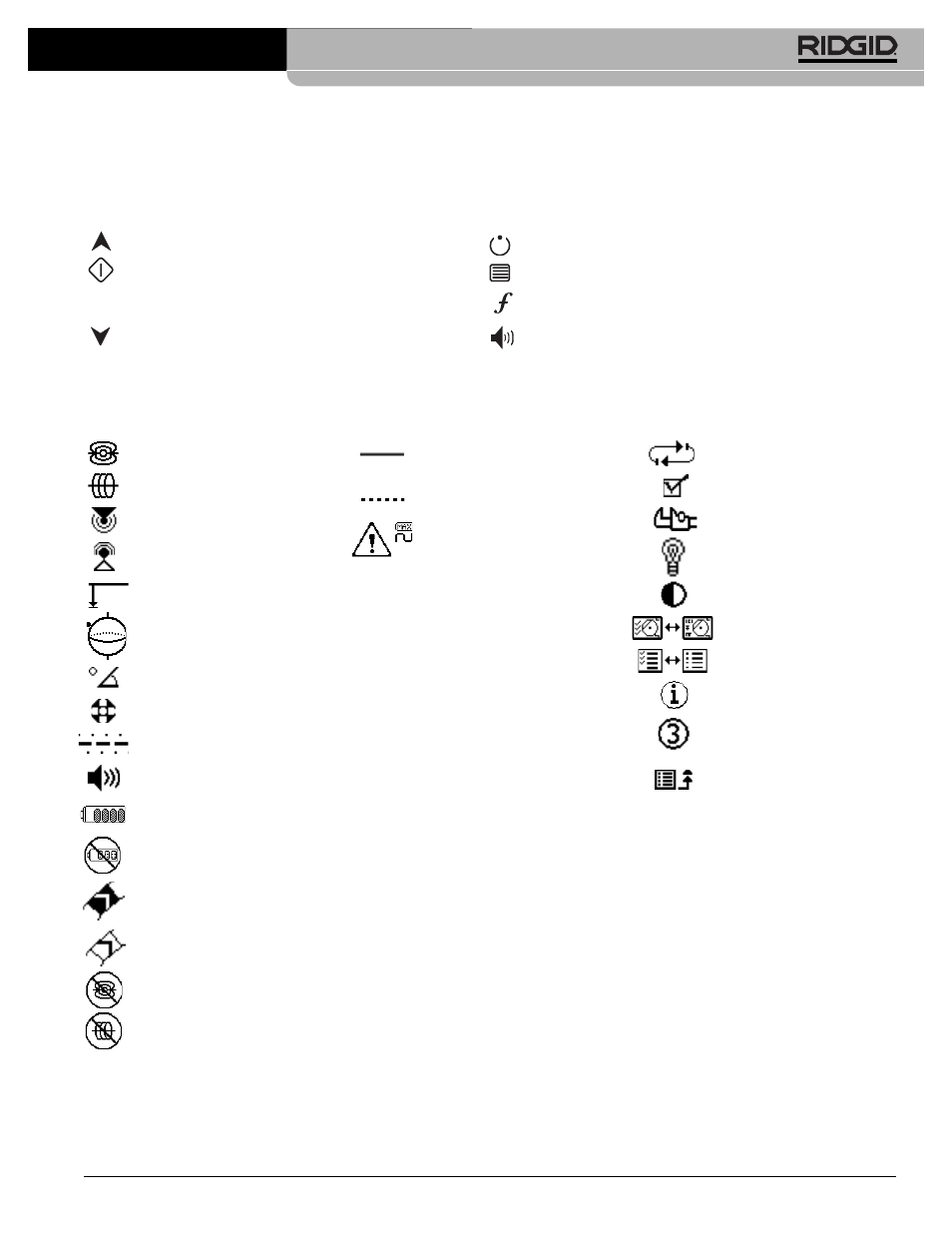

Icon Legend
Display Icons
Keypad Icons
Sonde Frequency
Active Trace Frequency
Proximity Signal
Signal Strength
Battery Level
Measured Depth/Distance
Signal Angle Indicator
(Sonde Mode)
Signal Angle Indicator (Trace Mode)
Pole Icon
Sonde Equator Line
Up Key – Menu Navigation
Select Key – Menu Select
Sonde Mode: Force Depth/Re-center Audio
Line Trace Mode: Force Map Display on if Signal
Strength is centered, Re-center Audio
Power ON/OFF Key
Menu Key
Frequency Key
Sound Key
Audio Level
Down Key – Menu Navigation
Menu Icons
Low Battery Warning
(Flashing)
Level Pointer
(Signal Strength)
Tracing Line
(Lower Antenna Signal)
No Trace Signal Present
No Sonde Signal Present
Water Mark
(Signal Strength)
Distortion Line
(Upper Antenna Signal)
Factory Default Reset
Menu Check Box
Signal Clipping
Tools Menu
Backlight Settings
Screen Contrast Adjust
Screen Setup
Menu Setup
Information Screen
Auto Exit Menu
Timeout Counter
Exit/Go Up One Level
(Press Menu Key)
