3.3 Connecting M30200T-RPD-E
The emulation pod for M30220 and M30221 Group MCUs consists of the M30200T-RPD-E and the
M30220T-PRB. Figures 3.3 and 3.4 show how to connect the M30220T-PRB pod probe, and how
to remove it, respectively.
Figure 3.4 Removing the M30220T-PRB pod probe
CAUTION
Notes on Connecting the Pod Probe:
• Be sure to turn off the power before making connections. Otherwise, the internal
circuits may be damaged.
• The small connectors (J3 and J4) of the M30220T-PRB are guaranteed for only 50
insertion/removal iterations.
• The small connectors (J3 and J4) of the FLX64-PRB and the small connectors (J1
and J2) of the M30220T-PRB are guaranteed for only 50 insertion/removal iterations.

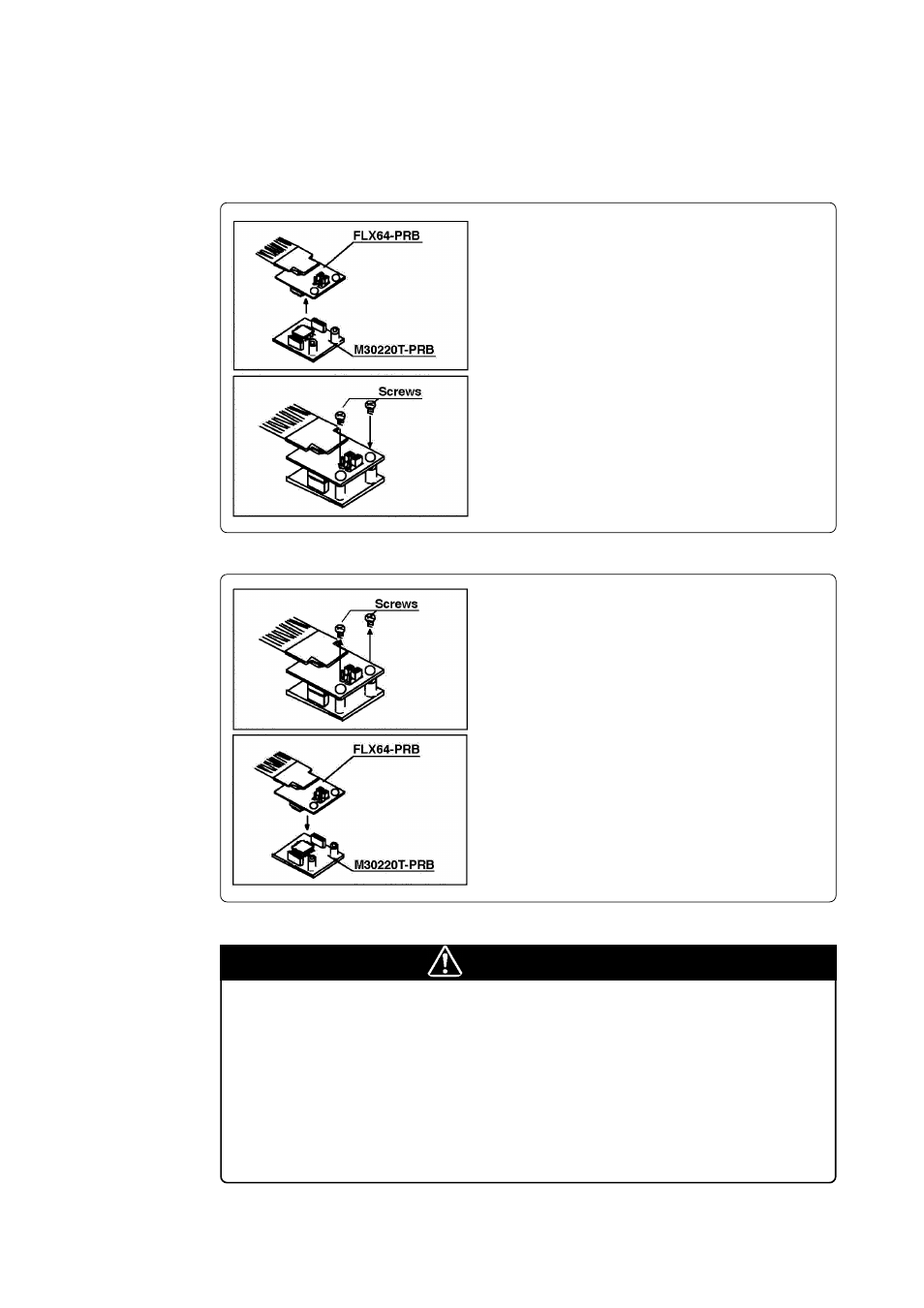

Figure 3.3 Connecting the M30220T-PRB pod probe
(1) Attach the J1 and J2 connectors of the M30220T-
PRB to the J3 and J4 connectors of the FLX64-PRB
respectively.
(2) Secure the FLX64-PRB with the included two screws.
(1) Unscrew the two screws of the M30220T-PRB.
(2) Lift off the M30220T-PRB from the FLX64-PRB.
Pull the M30220T-PRB straight down carefully.
Applying a twist to them may cause damage to the
connectors.
