8
INSTALLATION
MOUNTING THE PHONE
You can place the TAD-797’s base on a
desk or table, mount it on a standard
wall plate, or mount it directly on a wall.
Choose a location that is:
• near an AC outlet
• near a modular telephone line jack
• out of the way of normal activities
• away from electrical machinery,
electrical appliances, metal walls or
filing cabinets, wireless intercoms,
alarms, and room monitors
• away from other cordless phones
The base’s location affects the phone’s
range. If you have a choice of several lo-
cations, try each to see which provides
the best performance.
Caution: You must use a Class 2
power source that supplies 9
volts DC and delivers at least 500 mA.
Its center tip must be set to positive and
its plug must fit the TAD-797's
DC IN 9V
jack. The supplied AC adapter meets
these specifications. Using an adapter
that does not meet these specifications
could damage the TAD-797 or the
adapter.
Notes:
• Your telephone connects directly to
a modular telephone line jack. If
your phone line jack is not a modu-
lar jack, you can update the wiring
yourself, using jacks and adapters
available at your local RadioShack
store. Or, you can let the phone
company update the wiring for you.
!
• The USOC number of the jack to be
installed is RJ11C (RJ11W for a wall
plate).

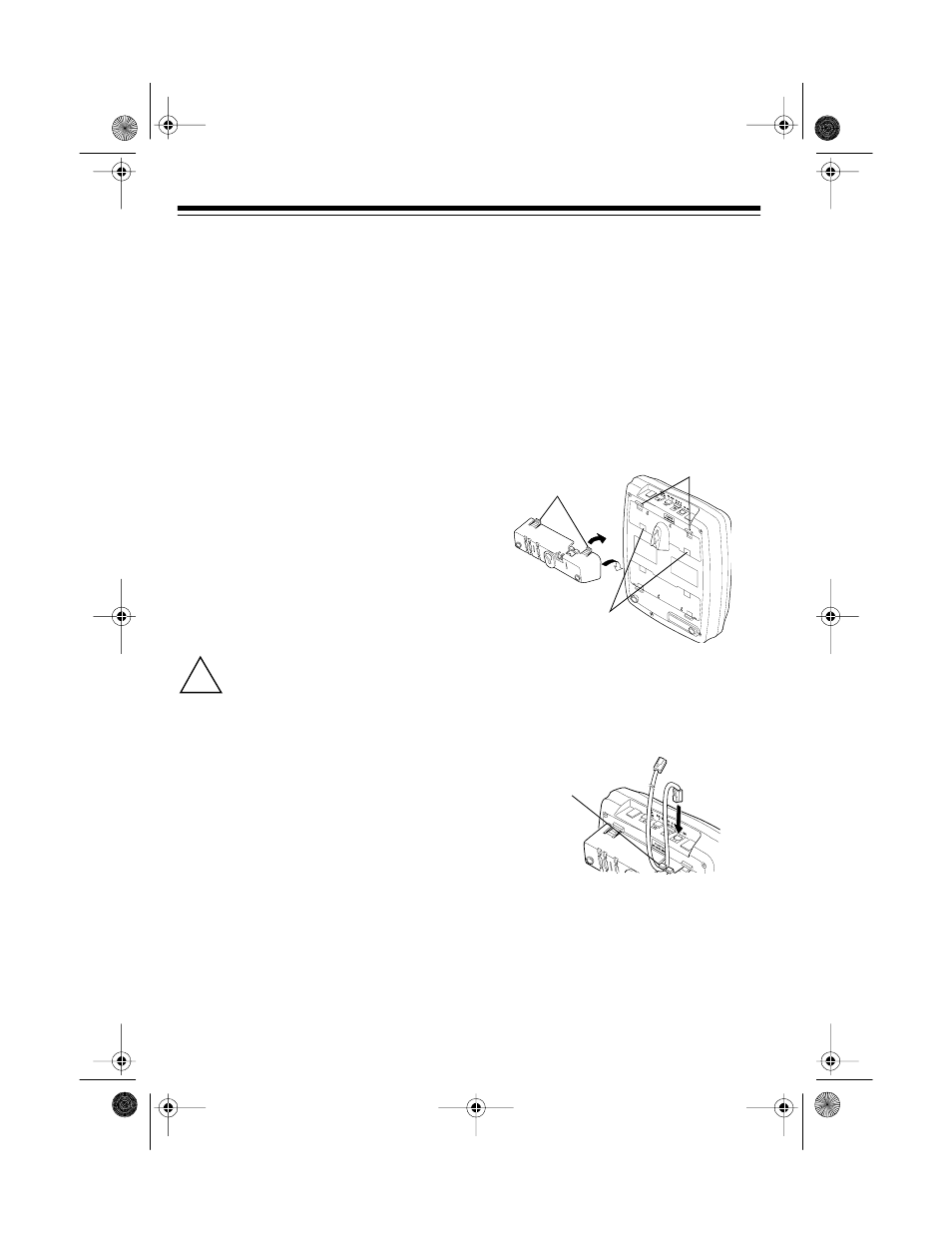

On a Desk Top
1. Insert the bracket’s tabs into the
base’s upper tab slots as shown,
then press down on the bracket’s
clips and insert them into the upper
clip slots.
2. Route the supplied long modular
cord through the strain relief slot on
the side of the bracket, then plug the
cord into the
TEL LINE jack on the
back of the base.
3. Plug the modular cord’s other end
into a modular telephone line jack.
Clips
Upper
Upper Tab Slots
Clip Slots
Strain
Relief
Slot
