Ount, Nstallation – RCA 2-9398 User Manual

Page 7

ALL

OUNT

NSTALLATION

LOWER

THIS END UP FOR W

ALL USE

THIS END UP FOR DESK USE

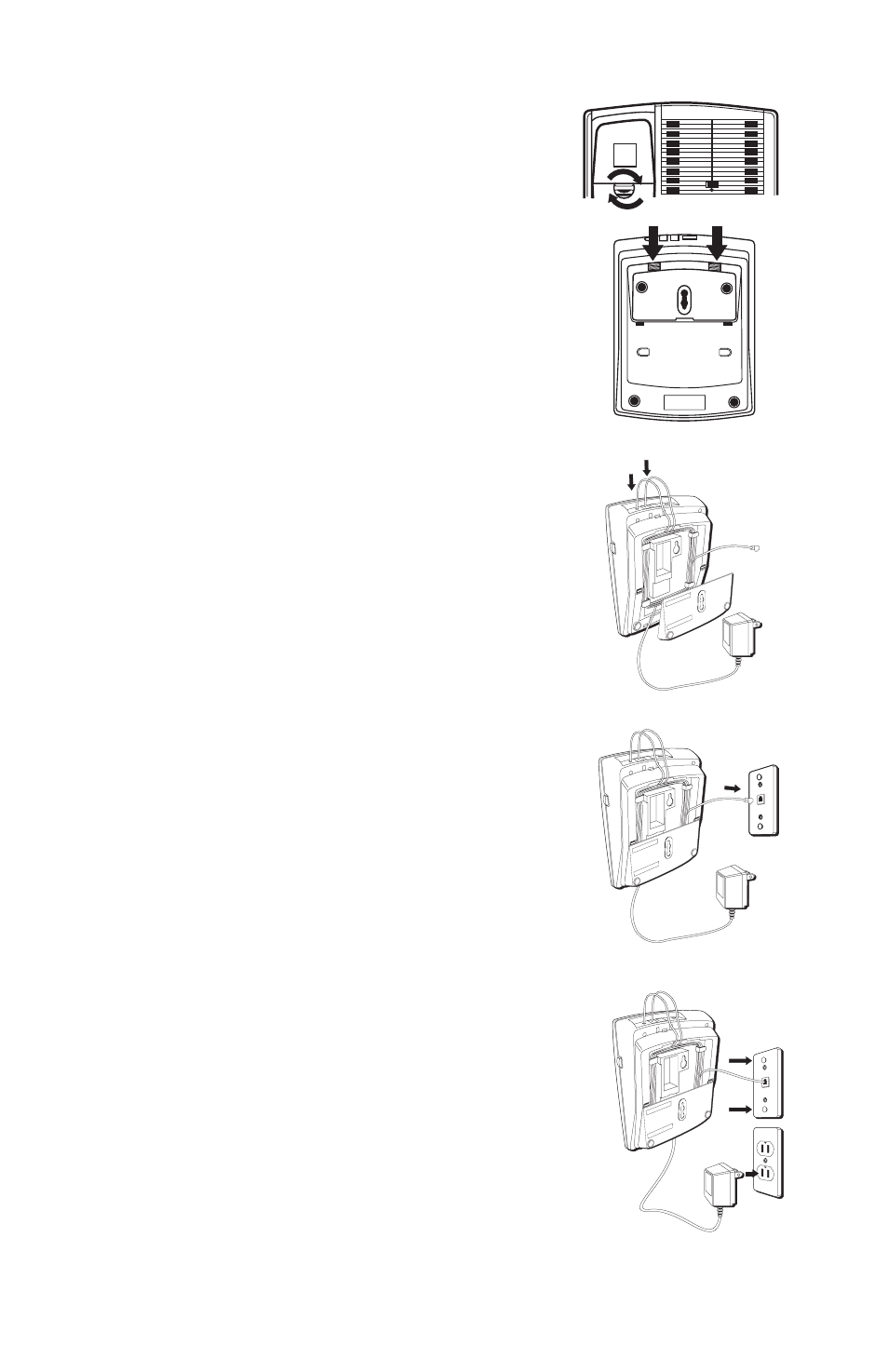

1. Rotate the handset hook.

2. Remove the base plate from the back by

pressing down on the snap tabs located at
the top, and then lifting the base plate off.

3. Plug the phone line cord into the phone

jack on the back of the unit, wrap the extra
line cord around the cord wrap on the
bottom of the base, and then thread it
through the bottom of the base plate.

4. Plug the power supply adapter into the

POWER 9V AC jack on the back of the unit,
and then thread it through the bottom of
the base.

5. Reverse the direction of the base plate and

replace it by putting the tabs into bottom
slots in the middle of the unit first, and
then snapping the bottom tabs into place.

6. Set the PULSE/TONE switch (located on the

side of the unit) to TONE if you have touch-
tone service; set it to PULSE if you have
rotary service.

7. Connect the phone cord to the modular

jack on the wall.

8. Slip the mounting holes over the wall plate

posts and slide the unit down firmly into
place. (Wall plate not included.)

9. Plug the handset cord into the handset and

into the unit, and then hang up the
handset.

10. Connect the AC Power supply adapter to an

AC outlet.
