Raypak 302-902 - Manual (Page 40)

40
HI DELTA OUTDOOR VENT INSTRUCTIONS CONTINUED

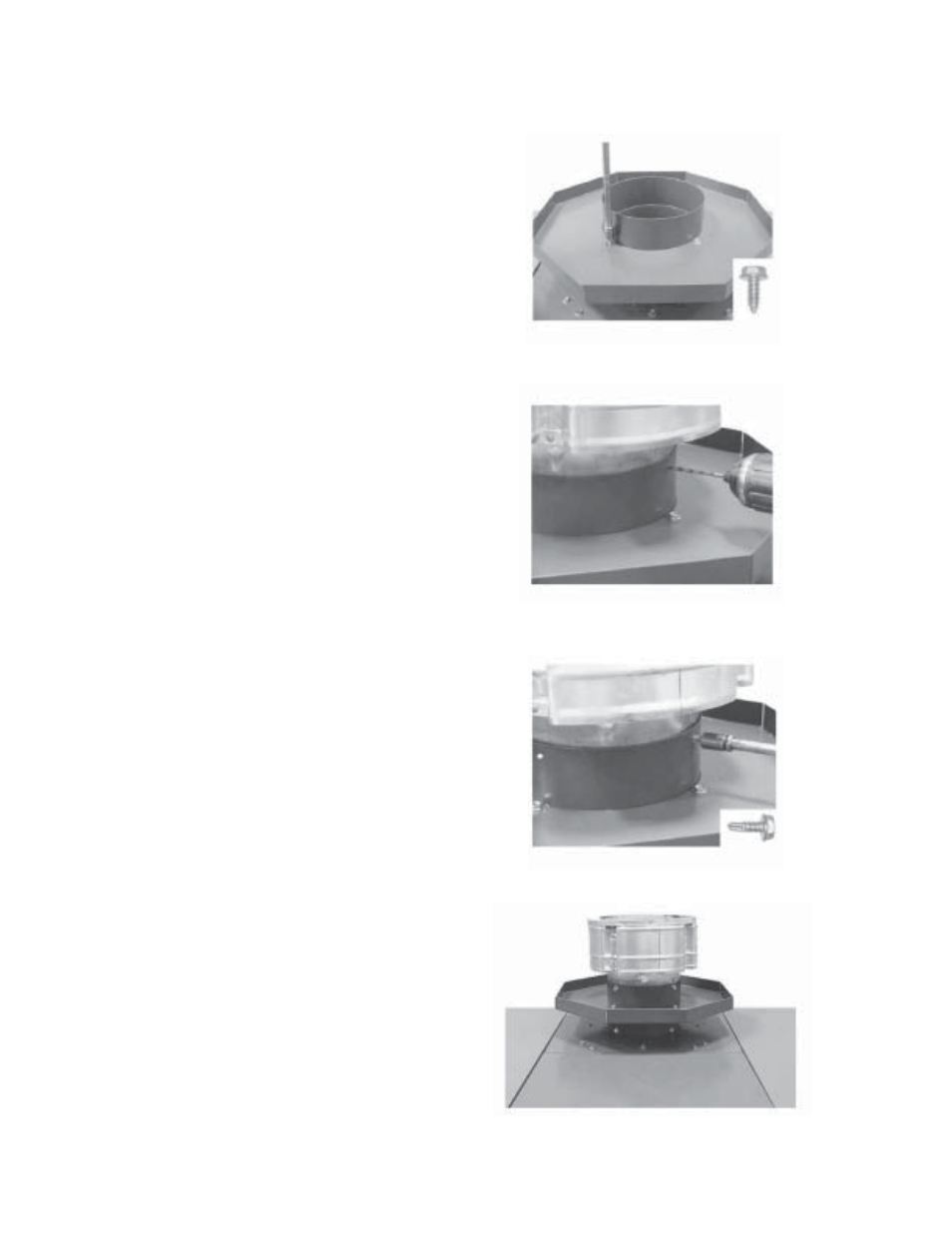

6. Slide the collector over vent collar, aligning the holes
over the openings in the tinnerman clips as shown
in Fig. 4.
Fig. 4
7. Take four of the screws from the kit and screw into the
holes as shown in Fig. 4.
8. Slide the vent cap down into the vent collar as shown
in Fig. 5.
Fig. 5
9. Drill a 3/16” pilot hole into the vent cap through each
of the upper holes in the vent collar. See Fig. 6. Also
see finished assembly below.
Fig. 6
10. Take four of the self tapping screws from the kit and
screw into the holes as shown in Fig. 6. Also see
finished assembly below.
11. Turn the power on and turn gas on.
Finished assembly
