11

2.6

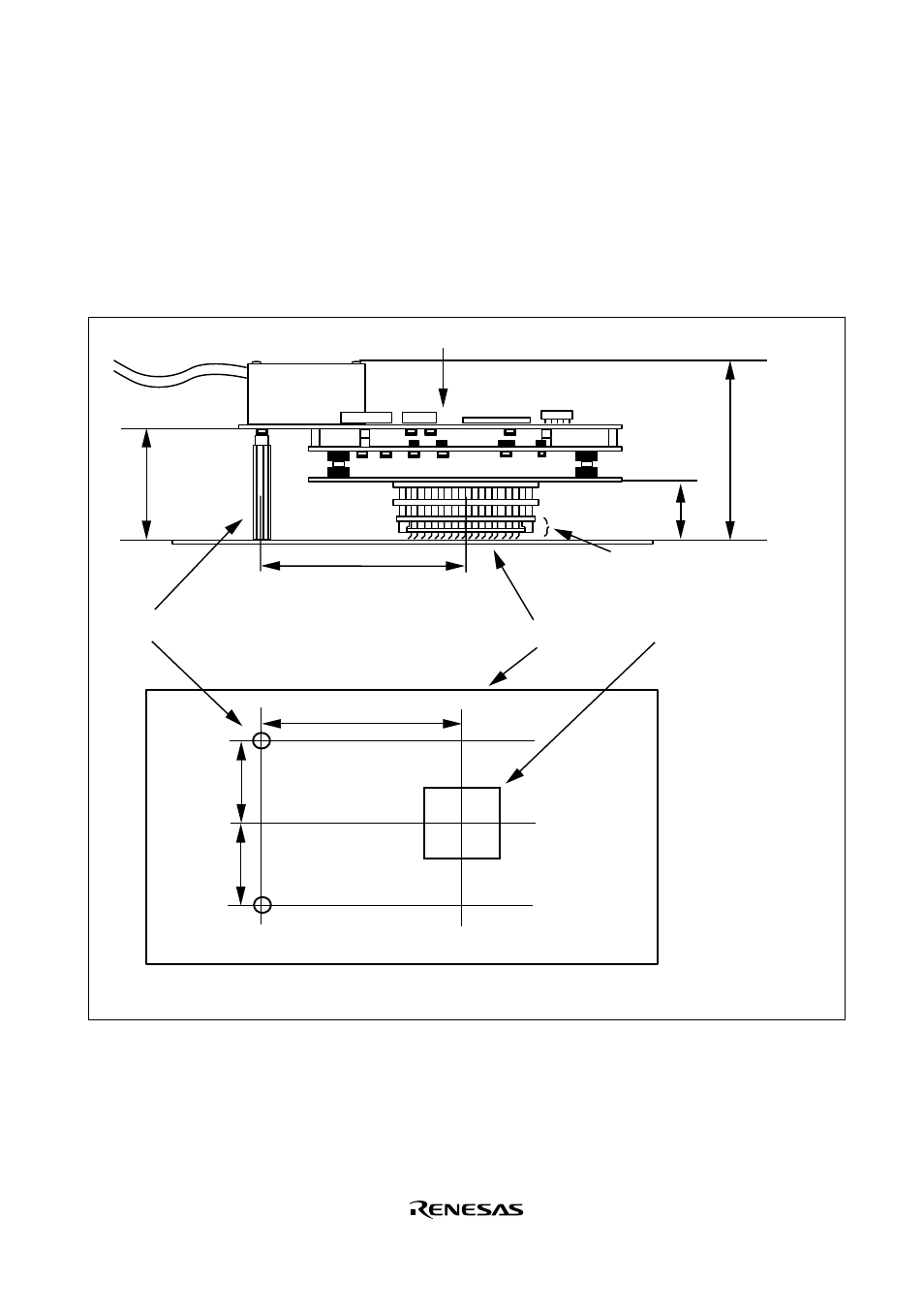

Resulting Dimensions after Connecting User System Interface Board

The resulting dimensions, after connecting the user system interface board to the user system, are
shown in figure 7.

Unit: mm
Tolerance: ±1.0 mm

35.6

16.0

57.6

User system

EV-chip board

IC socket
(IC149-120-043-B51
manufactured by
YAMAICHI ELECTRONICS Co., Ltd.)

56.5

56.5

45.0

45.0

SPACER (

φ

5.8)

Figure 7 Resulting Dimensions after Connecting User System Interface Board
