10
2.5 Dimensions for EV-Chip Board and User System Interface Board
The dimensions for the EV-chip board and the user system interface board are shown in figure 6.
Unit: mm
Tolerance: ±0.5 mm
140.0
100.0
EV-chip board
User system interface board
102.5 16.0
118.5
84.5
69.0
78.5
34.5

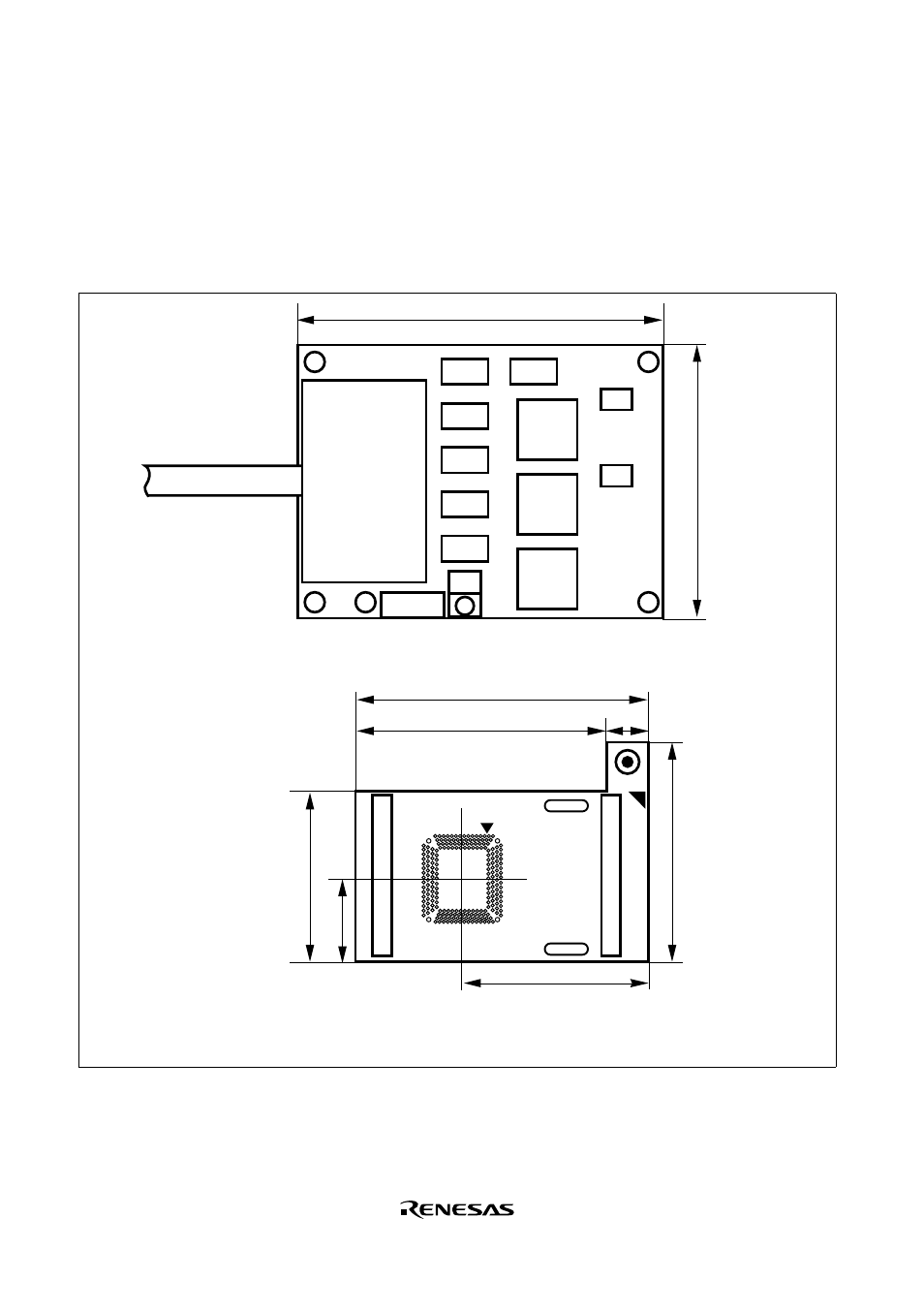

Figure 6 Dimensions for EV-Chip Board and User System Interface Board
