Install a separate disconnect means for each load.
Use appropriate-sized wire as defined by NEC, CSA
and/or local code. All primary wiring should be 125% of
minimum rating.
It is strongly recommended that all individually-pow-
ered control modules and the heater should be
supplied from the same power source.
Surge Protection
Microprocessor-based and solid state controls are vul-
nerable to damage from voltage and amperage
fluctuations in the power supply. All sensitive control
components should be protected by a suitable com-
mercial-grade surge protection device.
If any of the original wire as supplied with the heater
must be replaced, it must be replaced with 105°C wire
or its equivalent.
Check the Power Source
Making the Electrical Connections
Refer to Fig. 14 and the Wiring Diagram.
1. Verify circuit breaker is properly sized by referring
to heater rating plate. A dedicated circuit breaker
should be provided.
2. Turn off all power to the heater. Verify that power
has been turned off by testing with a volt-ohm
meter prior to working with any electrical connec-
tions or components.
3. Observe proper wire colors while making electrical
connections. Many electronic controls are polarity
sensitive. Components damaged by improper
electrical installation are not covered by warranty.
4. Provide an external surge suppressor capable of
maintaining system integrity.

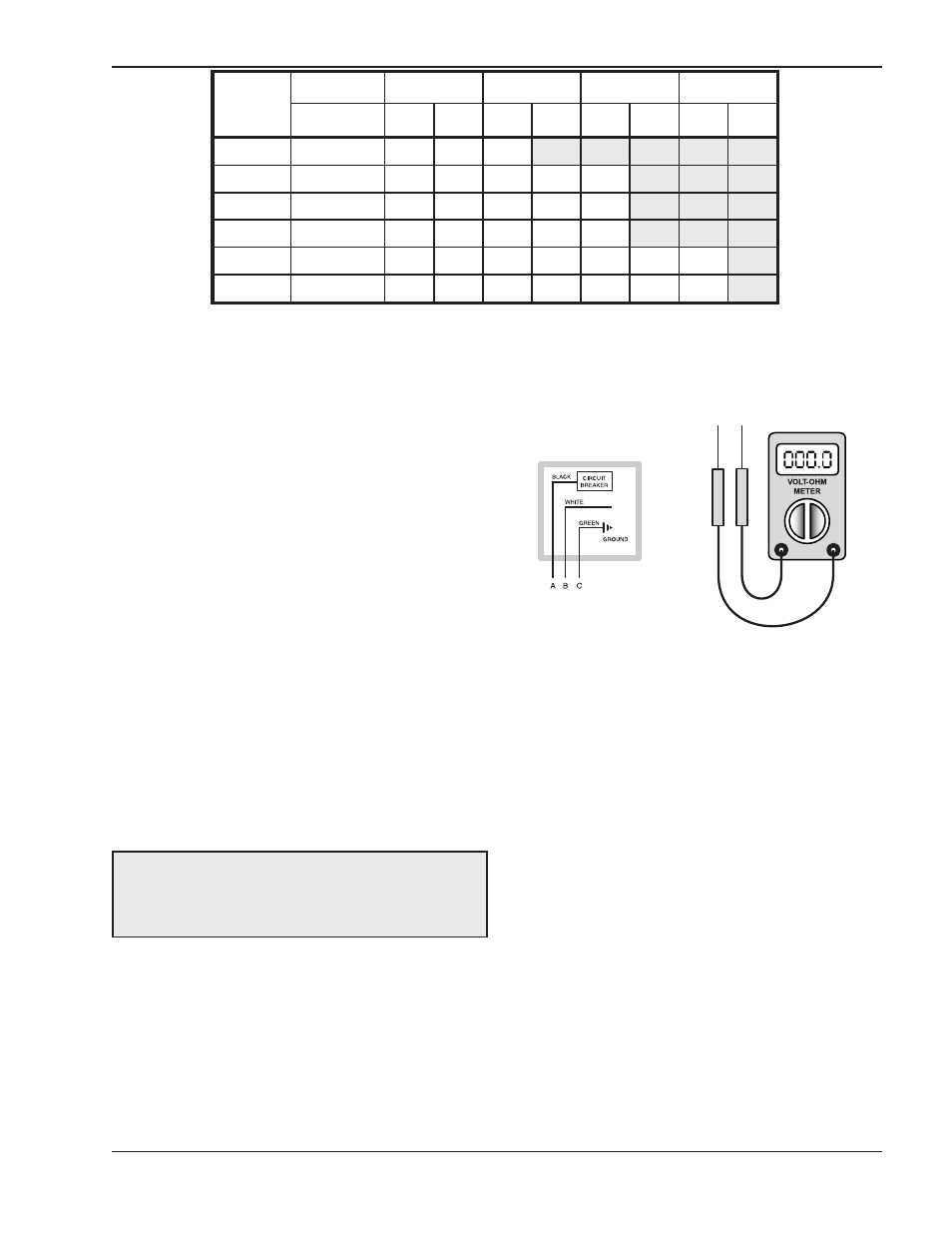

Fig. 14: Check Power Source
WARNING: Using a volt-ohm meter (VOM), check
the following voltages at the terminal block inside the
unit. Make sure proper polarity is followed and house
ground is proven.
Model
No.
Input
3/4”
1”
1-1/4”
1-1/2”
(KBTUH)
N
P
N
P
N
P
N
P
HD101
100
105
385
340
HD151
150
50
180
160
530
600
HD201
199
30
95
95
355
360
HD251
250
20
50
60
230
240
HD301
299
15
35
45
170
170
550
360
HD401
399
5
20
25
80
100
365
210
Table H: Maximum Equivalent Pipe Length
Natural gas – 1,000 BTUH per ft
3
, .60 specific gravity at 0.5 in. WC pressure drop
Propane gas – 2,500 BTUH per ft
3
, 1.50 specific gravity at 0.5 in. WC pressure drop
AC = 108 Volts AC Minimum, 132 Volts AC MAX
AB = 108 Volts AC Minimum, 132 Volts AC MAX
BC = < 1 Volt AC
