Remington ST3010A - Manual (Page 8)

4 |
118336
3 trimmer assembly
Assembling Trimmer
Attaching Cutting Guard
1. Remove three mounting screws taped
to underside of cutting guard.
2. Align key tabs on inside of cutting
guard hole with cutouts on motor
housing and slide cutting guard over
cutting head (see Figure 3-1). Slip
cutting guard past the tabs.
3. Rotate guard 90° until it stops (see
Figure 3-2).
4. Insert one mounting screw into center
screw hole at top of cutting guard (see
Figure 3-3). Tighten screw firmly.

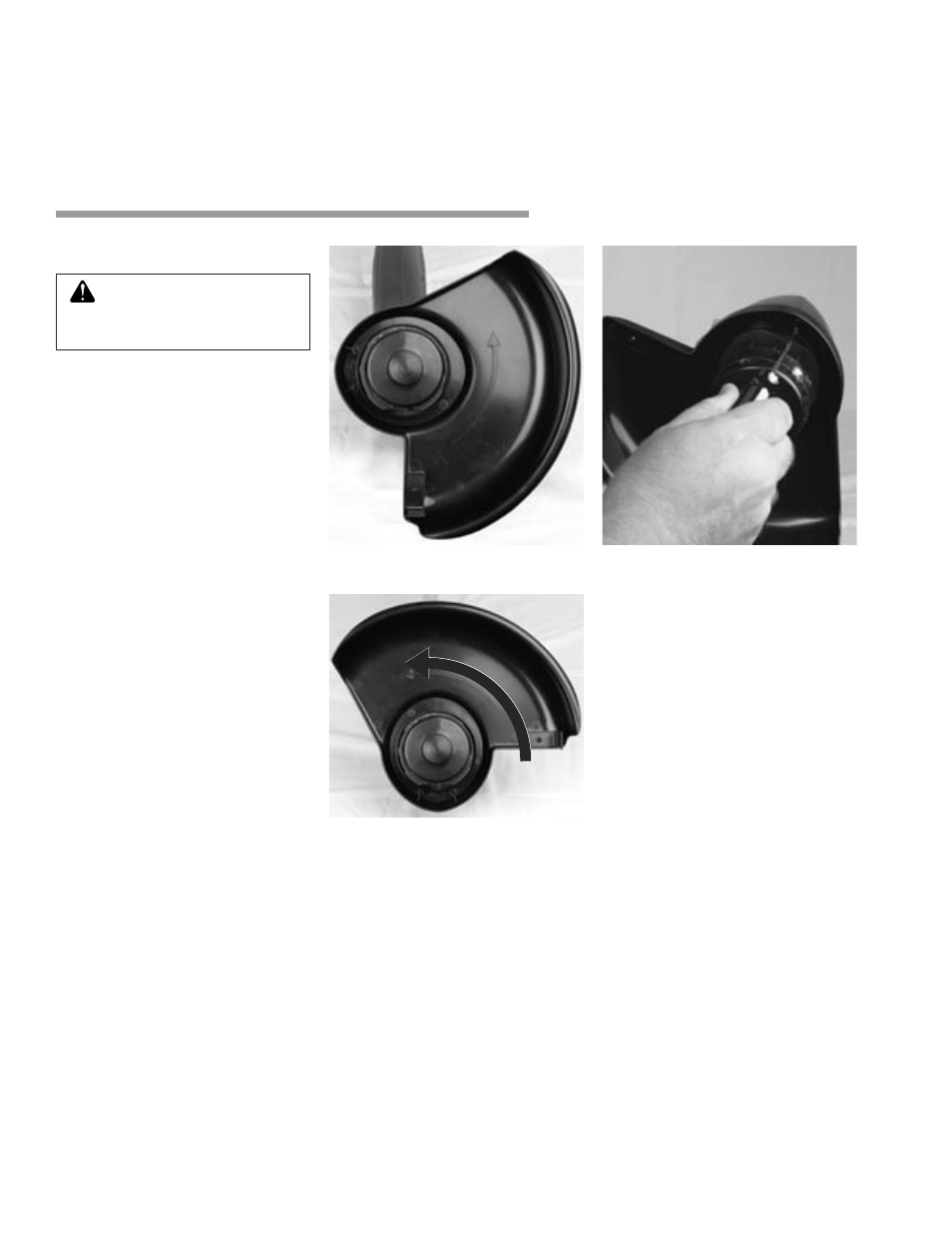

Figure 3-3: Attaching mounting screw Figure 3-1: Placing cutting guard over cutting head
Figure 3-2: Rotating cutting guard into place
WARNING: Do not operate
trimmer without guard or handle
in place.
