– 3 –

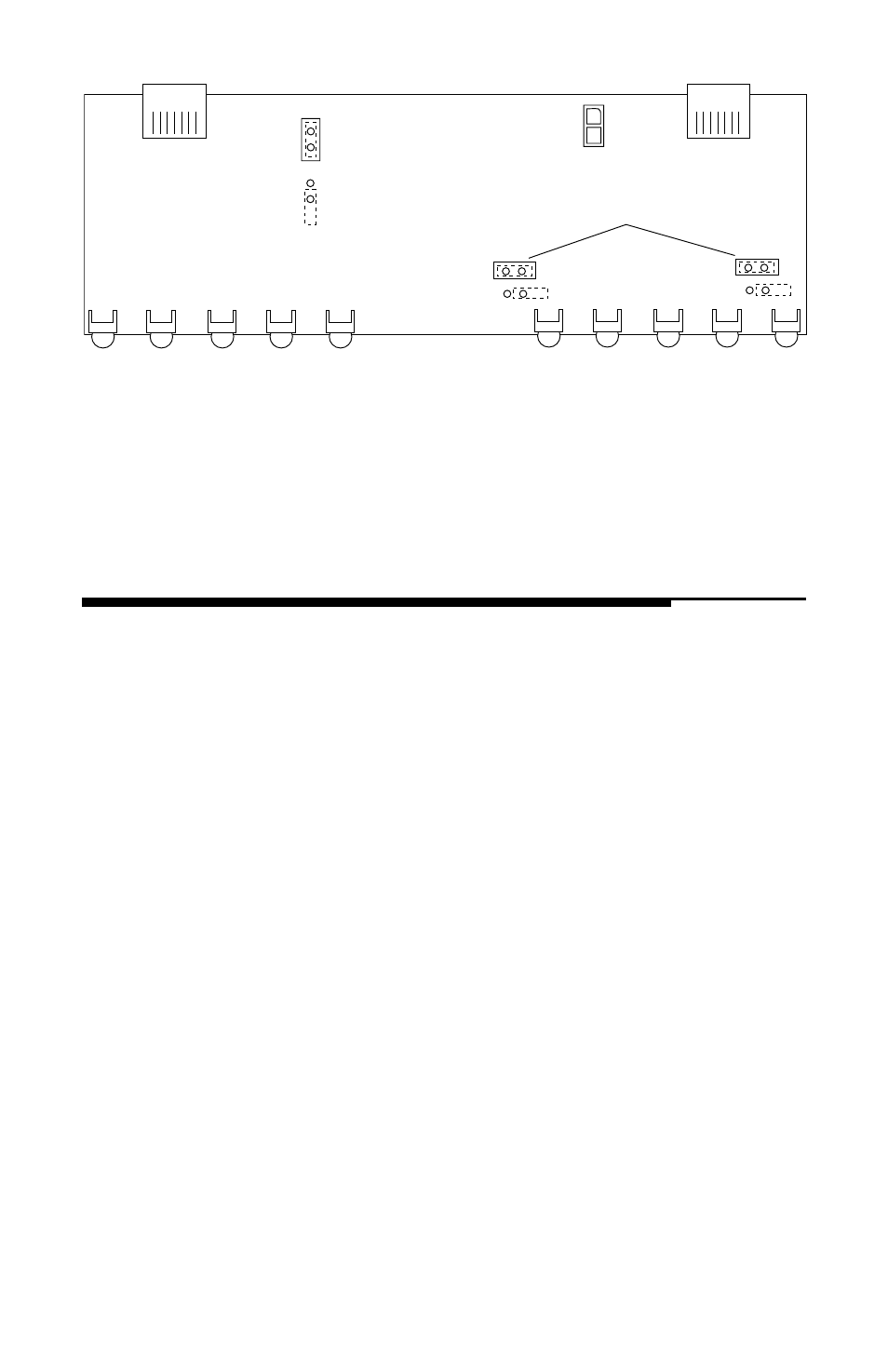

Remote

Dimmer

Remote

Disable

Remote

Enable

Stereo Amp
Mono Amp(s)

Stereo/Mono

Left

Mono Right

8. Remote Disable/Enable Jumper –The position of this jumper

determines whether the PSD is turned on and off by the amplifier
or with a separate switch.

9. Stereo/Mono Jumpers – These jumpers are used to configure the

PSD for Stereo or Mono amplifier input(s).

N S TA L L AT I O N

O N S I D E R AT I O N S

The following is a list of tools you will need for installing the PSD:

Battery Post Wrench

Soldering Iron (optional)

#1 Phillips Screwdriver

Solder (optional)

Wire Strippers (optional)

Heat Gun (optional)

1/8" diameter heat shrink tubing (optional)

This section focuses on some of the vehicle considerations for installing
your new PSD. Pre-planning your layout and best wiring routes will save
installation time.

1. For safety, disconnect the negative lead from the battery prior to

beginning the installation.

2. For easier assembly, we suggest you run all wires prior to mounting

your Punch Status Display.

3. Think before you drill! Be careful not to cut or drill into vacuum lines

or electrical wiring when working on any vehicle.

4. Never run wires underneath the vehicle. Running the wires inside the

vehicle provides the best protection.

5. Avoid running wires over or through sharp edges. Use rubber or

plastic grommets to protect any wires routed through metal.

6. ALWAYS protect the battery and electrical system from damage with

proper fusing. Be sure the Remote and Dimmer wires are connected
to an appropriately fused electrical system.
