– 8 –
I
N
S
T
A
L
L
A
T
I
O
N
® ®

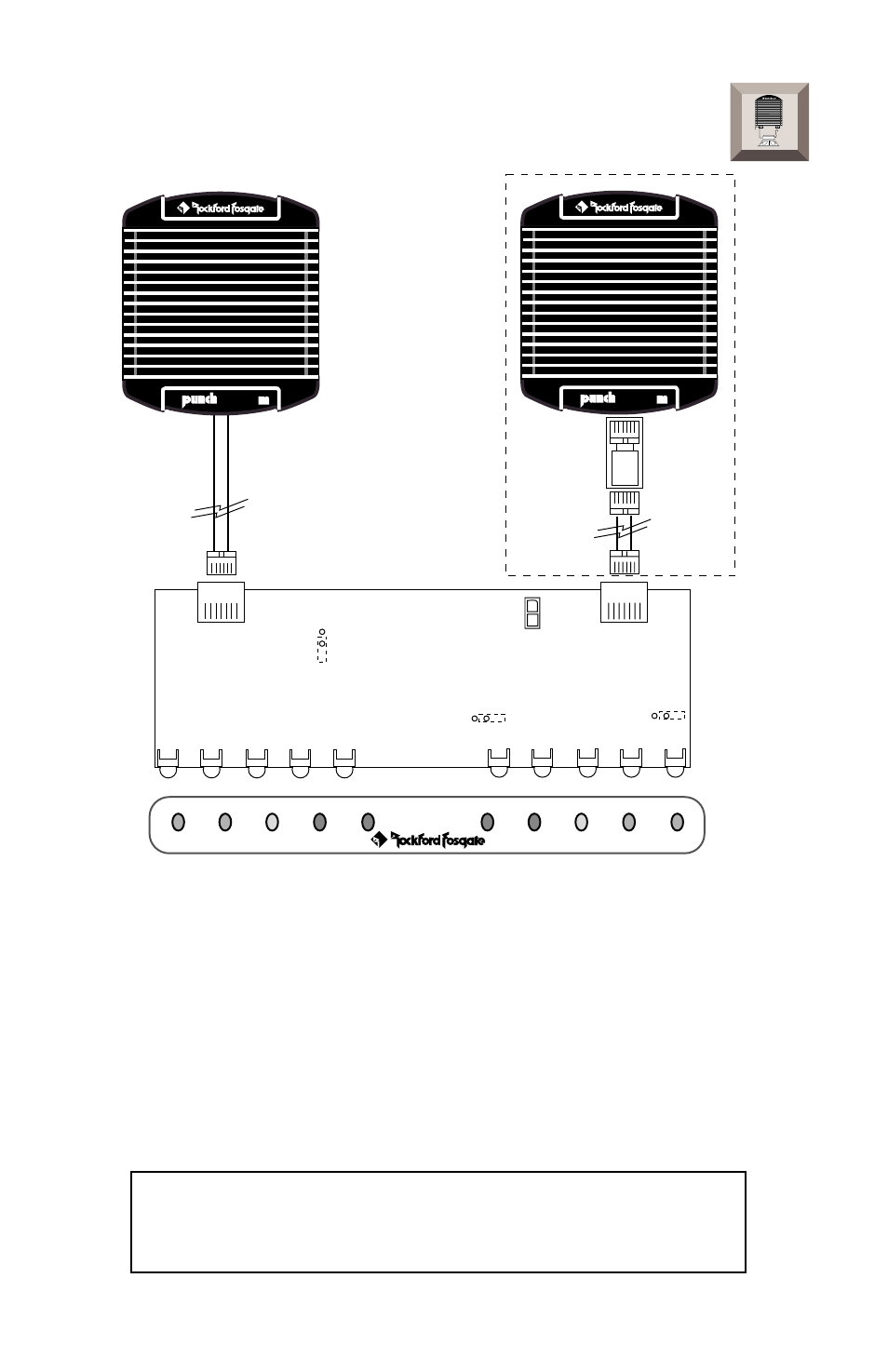

Stereo/Mono Jumper Configuration (Mono Amp/s)
Remote
Dimmer
Remote
Enable
Mono Amp(s) Mono Amp(s)
® ®
POWER SIGNAL MAX CLIP THERMAL THERMAL CLIP MAX SIGNAL POWER
PSD-1
® ®
P O W E R
®
250
® ®
P O W E R
®
500
✧
(if using 2 amps)
• Stereo/Mono Jumpers are removed from jumper pins
• Single Mono Amp connects to Stereo/Mono Left input
• Left Mono Amp connects to Stereo/Mono Left input
• Right Mono Amp connects to Mono Right input
✧ Adapter used on Power 500m amplifier only
• Power 500 Adapter must connect to the amplifier side of the
Data Interface Cable for proper operation
NOTE: The Power 250m
2
, Power 250m and Power 500m must
use the ENABLED Remote Turn-On for proper operation.
DO NOT connect Power 500m amplifiers to the PSD
without the appropriate adapter. Please contact Rockford
Customer Service (800-669-9899) for information
