D
ESIGN
F
EATURES
– 2 –
® ®
1 2 3 4 5 5 4 3 2 1
6 7 6
POWER SIGNAL MAX CLIP THERMAL THERMAL CLIP MAX SIGNAL POWER
PSD-1

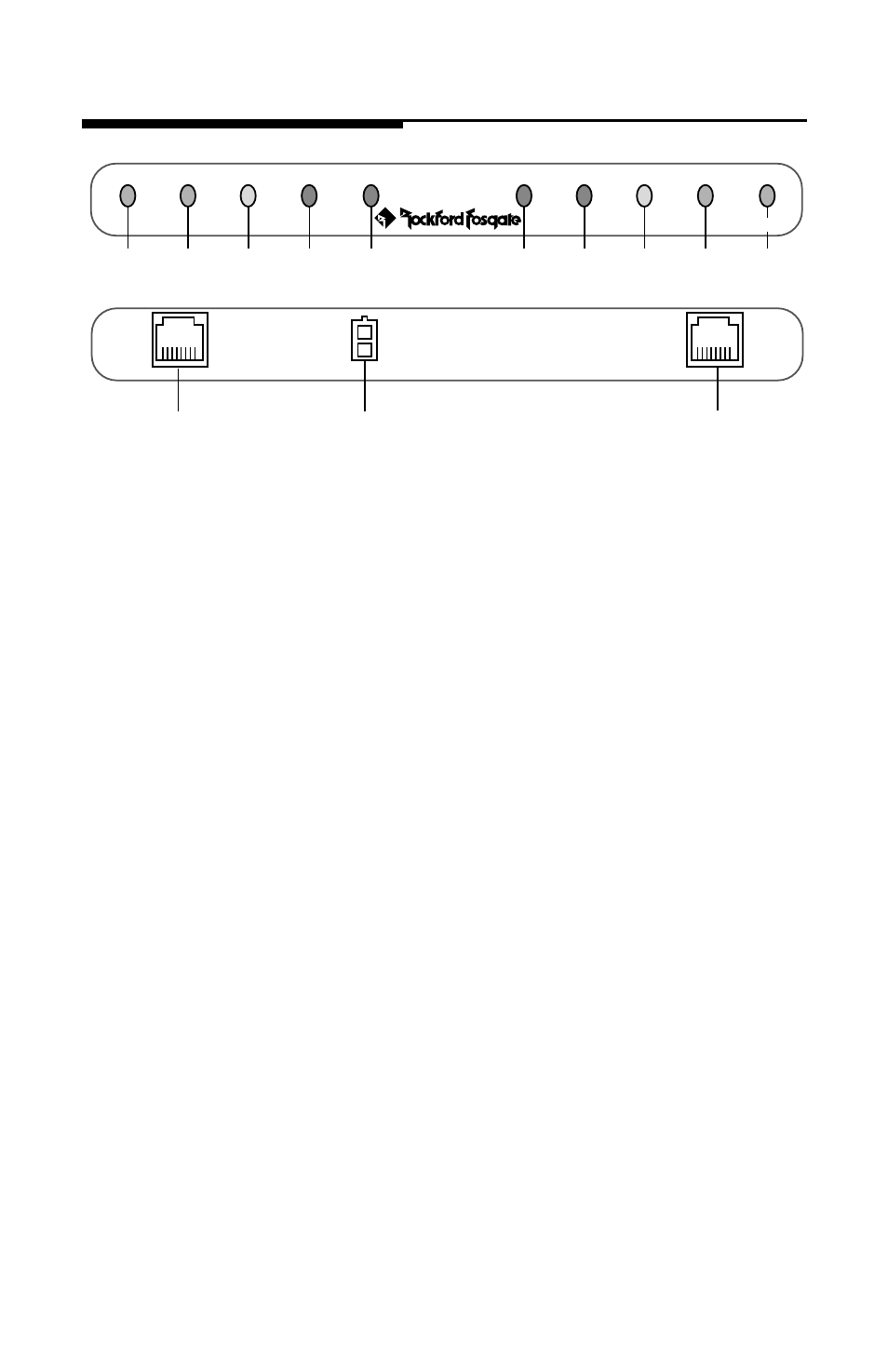

1. POWER Indicator – The POWER LED will illuminate when the
amplifier turns on.
2. SIGNAL Indicator – The SIGNAL LED will illuminate when audio
signal is present at the amplifier.
3. MAX Indicator – The MAX LED will illuminate when the audio signal
has reached its maximum amplified level (approximately –2dB from
clip).
4. CLIP Indicator – The CLIP LED will illuminate when the audio signal
has exceeded (clipped) its maximum amplified level.
5. THERMAL Indicator – The THERMAL LED will illuminate when a
fault is detected by the protection circuitry in the amplifier's power
supply. The power supply protection circuitry monitors overvoltage,
undervoltage and thermal conditions.
6. Data Interface Jacks – The RJ45 interface provides a convenient
connection for the data interface cable.
7. Remote/Dimmer Connector – The mini 2-pin connector provides a
convenient connection for Remote Turn-On and Dimmer input.
