5. Connection Procedure (See Figure 3)
The procedure for connecting the R0E0100TNPFK00 is shown
below.
(1) Mount the NQPACK100SD-ND on the user system.
(2) Attach the YQPACK100SD on the NQPACK100SD-ND.
(3) Secure the four corners of the YQPACK100SD with the
YQ-GUIDEs.
● Do not use the screws included with the
YQPACK100SD for fixing the YQPACK100SD.
● Do NOT use the screwdriver included with the
NQPACK100SD-ND for fixing the YQ-GUIDEs. That
is used only for the HQPACK100SD.
(4) Mount the R0E0100TNPFK00 on the YQPACK100SD.
(5) Attach the flexible cable R0E001000FLX10 of the
emulator to the R0E0100TNPFK00.
100-pin 0.5mm pitch
(PLQP0100KB-A) foot pattern
YQPACK100SD
NQPACK100SD-ND
YQ-GUIDE (×4)
R0E0100TNPFK00
●: No.1 pin
Be sure to align the pins.
(1)
(2)
(3)
(4)
(5)
Use a slotted screwdriver.
Flexible cable
R0E001000FLX10

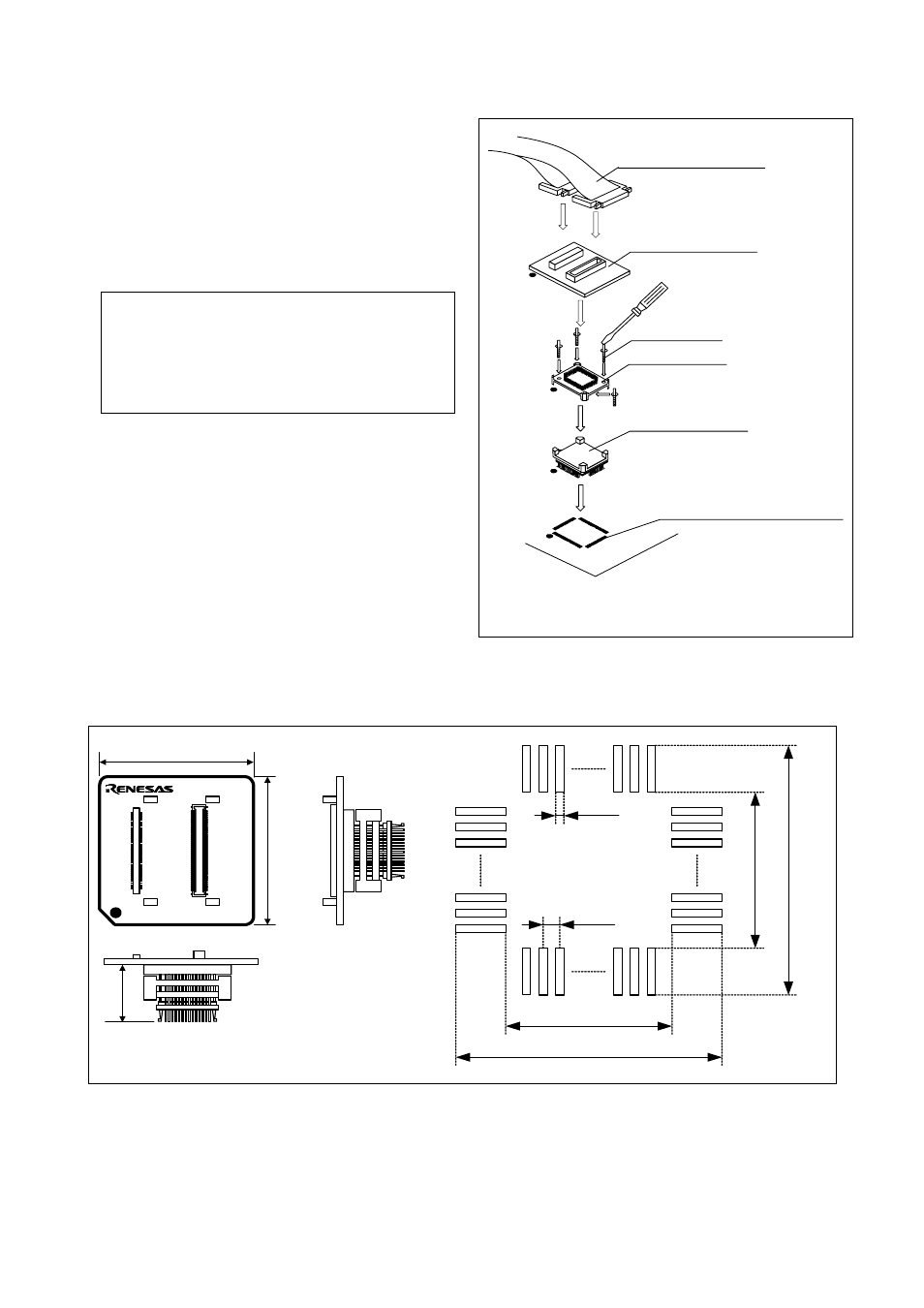

Figure 3 Connection procedure of the R0E0100TNPFK00
6. External Dimensions and a Sample Foot Pattern
R0E0100TNPFK00
REV.A
CN1
1
50 51
100
CN2
1
50 51
100
MADE IN JAPAN
38
.0
0
37.00
13
.0
17
.0
13.0
17.0
0.50
0.25
Unit: mm
16
.50
Figure 4 External dimensions and a sample foot pattern of the R0E0100TNPFK00
