1. Outline
The R0E0100TNPFK00 is a converter board for connecting the
flexible cable R0E001000FLX10 to a foot pattern for 100-pin
0.5mm pitch LQFP (PLQP0100KB-A).
2. Package Components (See Figure 1)
Check to see if the R0E0100TNPFK00 package has all the
following contents before using this product.
(1) R0E0100TNPFK00 converter board ........................... 1 pc.
(2) YQPACK100SD
(made by Tokyo Eletech Corporation)
................ 1 pc.
(3) NQPACK100SD-ND (made by Tokyo Eletech Corporation) ....... 1 pc.
(4) YQ-GUIDE (made by Tokyo Eletech Corporation) .....................4 pcs.
(5) R0E0100TNPFK00 User's Manual (this manual)
3. Specifications
Table 1 Specifications
Applicable package
PLQP0100KB-A:
formerly 100P6Q-A
(100-pin 0.5mm pitch LQFP)
Insertion/removal
iterations of connector
50 times guaranteed
4. Usage (See Figure 2)
The R0E0100TNPFK00 can be used for debugging and
board-mounted evaluation in common by mounting the
NQPACK100SD-ND on the user system.
(1) For debugging
Mount the NQPACK100SD-ND on the foot pattern of the
user system and attach the YQPACK100SD on it. In
addition, connect the R0E0100TNPFK00 to the
YQPACK100SD, and then connect the flexible cable
R0E001000FLX10 of the emulator to the upper connector
of the R0E0100TNPFK00.
(2) For onboard evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK100SD (not included) in order
on the NQPACK100SD-ND on the user system.
Before using the R0E0100TNPFK00, be sure to read "7.
Precautions" on page 4.
R0E0100TNPFK00
converter board
YQ-GUIDE (×4)
YQPACK100SD
NQPACK100SD-ND

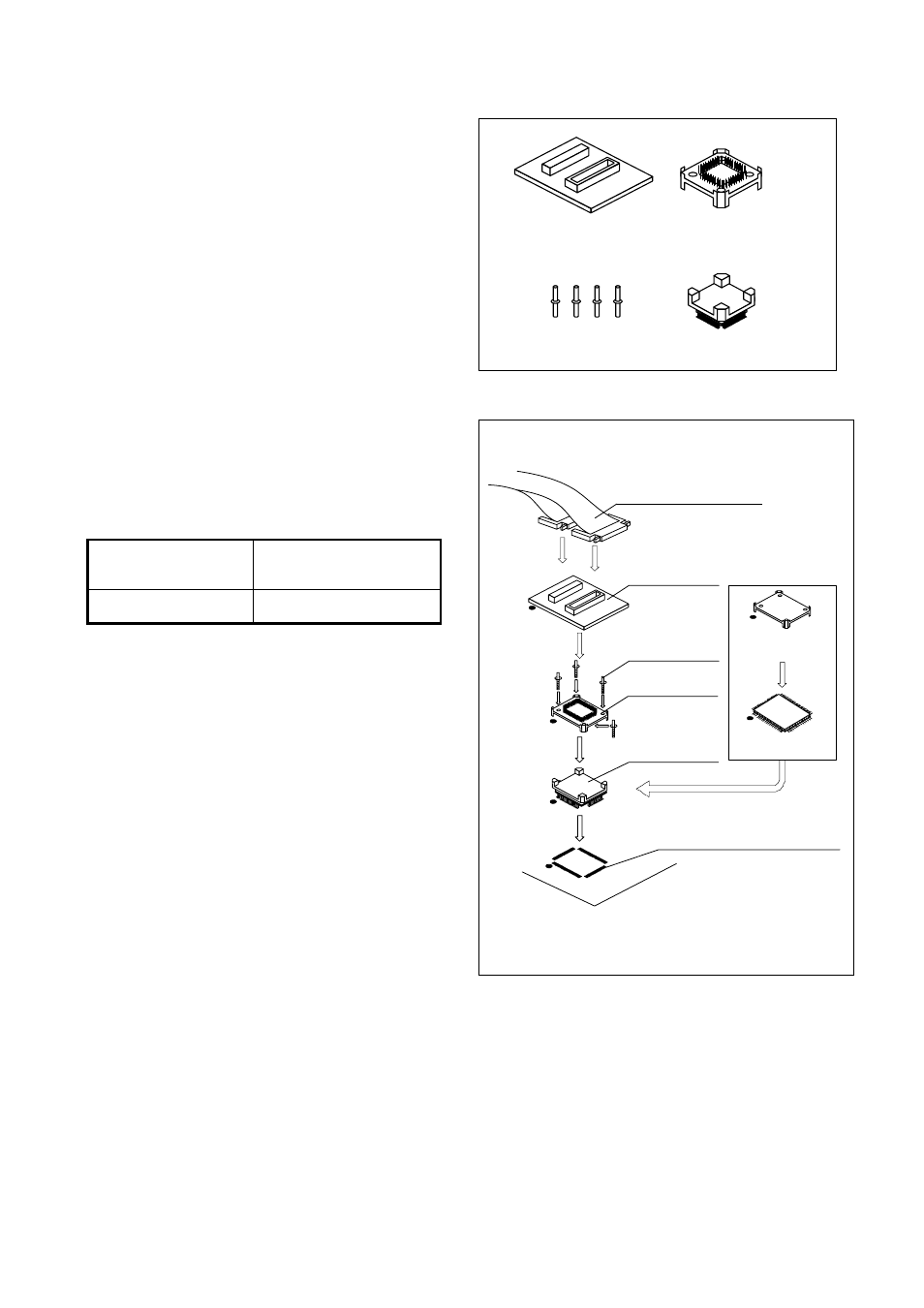

Figure 1 Package components of the R0E0100TNPFK00
100-pin 0.5mm pitch
(PLQP0100KB-A) foot pattern
FLASH MCU, etc.
(2) For on-board
evaluation
YQPACK100SD
NQPACK100SD-ND
YQ-GUIDE (×4)
HQPACK100SD
(not included)
R0E0100TNPFK00
(1) For debugging
●: No.1 pin
Be sure to align the pins.
Flexible cable
R0E001000FLX10
Figure 2 Usage of the R0E0100TNPFK00
(2/4)
