3.6.6 Connecting to a 100-pin 0.5-mm-pitch Foot Pattern (Part 1)
Here following is a procedure of connecting to a 100-pin 0.5-mm-pitch foot pattern on the target
system using the M3T-F160-100NSD (not included). For details on the M3T-F160-100NSD, refer
to its user's manual.
(1) Attach the NQPACK100SD included with the M3T-F160-100NSD to the target system.
(2) Attach the YQPACK100SD included with the M3T-F160-100NSD to the NQPACK100SD
and secure it with the YQ-GUIDE's.
(3) Attach the CN2 side of the M3T-F160-100NSD to the J4 side of the M3062PT-EPB.
(4) Attach the M3T-F160-100NSD to the YQPACK100SD.

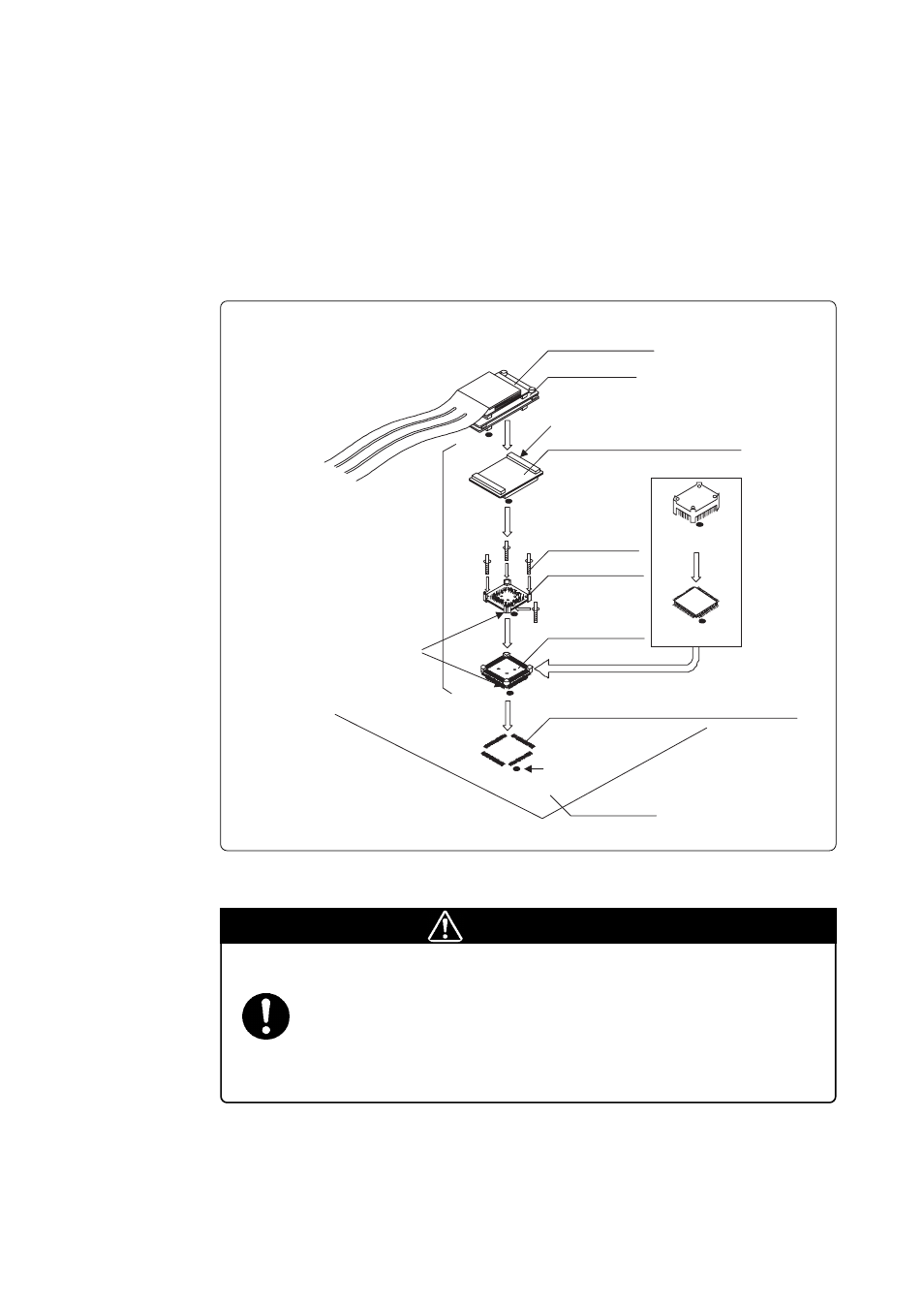

Figure 3.17 Connecting to a 100-pin 0.5-mm-pitch foot pattern (Part 1)
CAUTION
Notes on Connecting the Target System:
• Take care not to attach a converter board in a wrong direction. It may cause a fatal
damage to the emulator and targets system.
• The connectors of the M3T-F160-100NSD are guaranteed for only 50 insertion/
removal iterations.
M3062PT-EPB
100-pin 0.5-mm-pitch (100P6Q) foot pattern
M3T-F160-100NSD (not included)
YQPACK100SD
YQ-GUIDE (x4)
HQPACK100SD
(not included)
MCU with flash
ROM etc.
NQPACK100SD
These corners are not round.
*
Target board
No. 1 pin
CN2 side
M3T-FLX160-EPB
Evaluation with
actual MCU
(1)
(2)
(4)
(3)
* Available in one package
