3.5 Connecting the PC7501

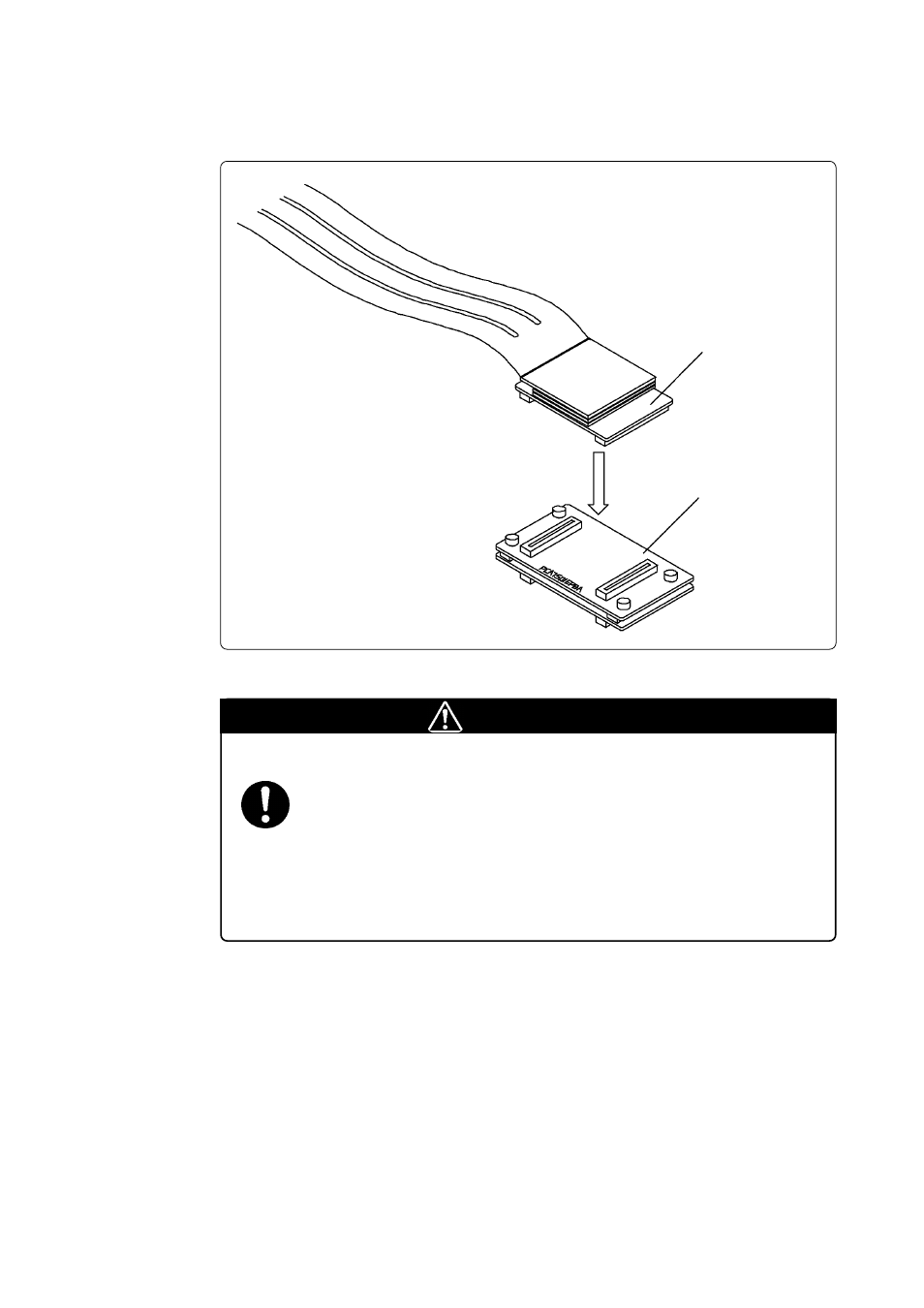

Figure 3.10 shows how to connect the PC7501 and the emulation probe.
Figure 3.10 Connecting the PC7501 and the emulation probe
CAUTION
Note on Connecting the PC7501:
• When connecting the emulation probe, be sure to hold the both sides of the emulation
probe horizontally and insert it directly.
• Always shut OFF power before connecting the emulation probe. Otherwise, internal
circuits may be damaged.
• The connectors of the M3062PT-EPB are guaranteed for only 50 insertion/removal
iterations.
M3T-FLX160-EPB
M3062PT-EPB
