20

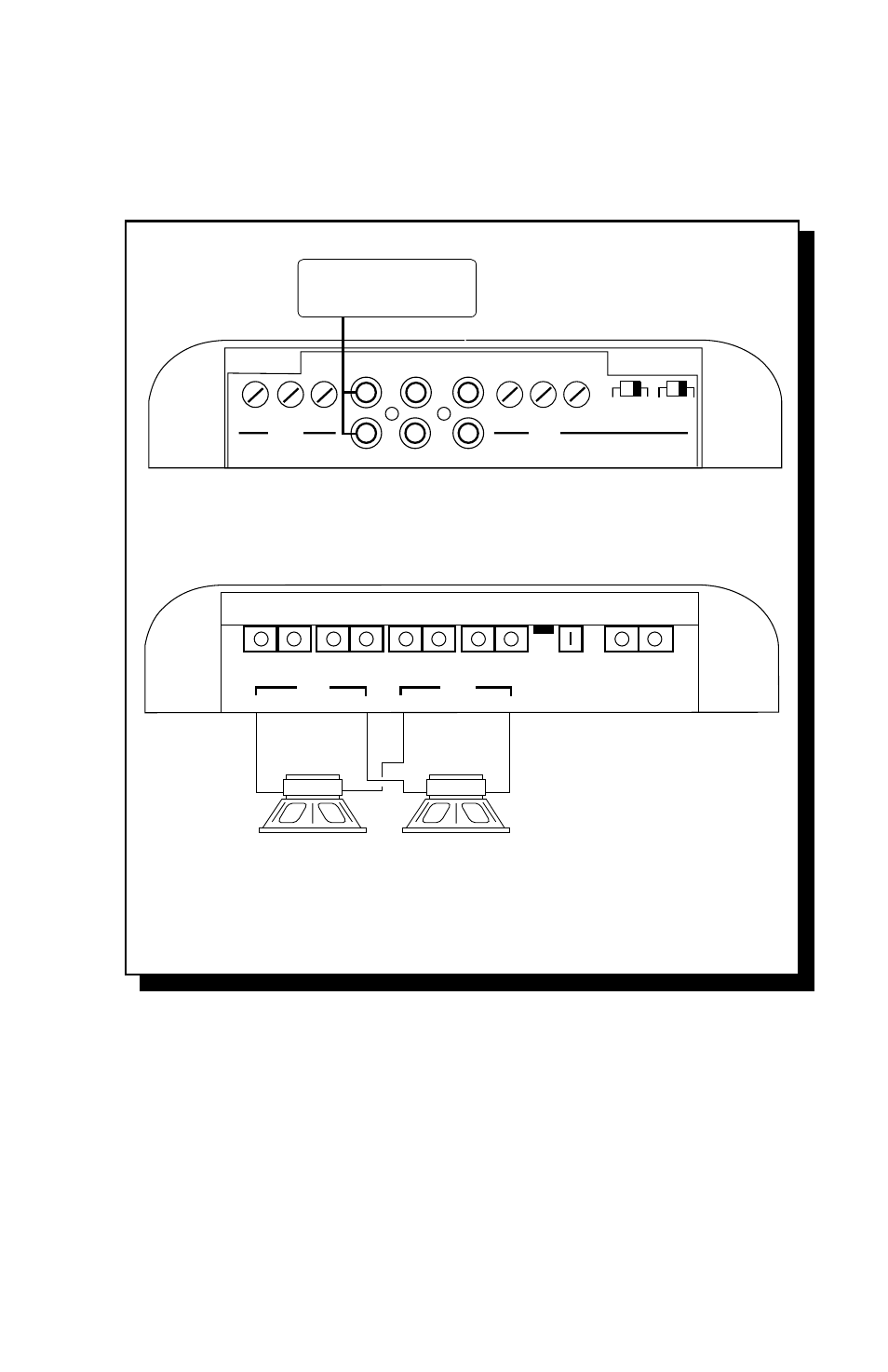

2-CHANNEL BRIDGED STEREO
*
* In this mode the phase switch should always be at 180
°
. Switching to the 0
°
position will result in an "out of phase" condition and a loss of output.
(Alternate Version: 100Hz High Pass Front & Rear -4
Ω
Full Range)
Input switch set to F
Set Front & Rear crossover to the same point
Front+Rear summed output not used
Phase switch set to 180
°
+ R I G H T –
REM B+ GND
+ L E F T –
REAR
(bridge)
+ R I G H T – + L E F T –
FRONT
(bridge)
4 Ω
Subwoofer
– +
SOURCE UNIT
TREBLE GAIN BASS
FRONT
FRONT FRNT+REAR REAR
OUT IN IN
R
L
R
L
TREBLE GAIN BASS
REAR
0 180 R F
PHASE INPUT
4 Ω
Subwoofer
– +
Left Right
