Protecting the module from flyback voltages – National Instruments NI 9476 User Manual
Page 10
NI 9476 Operating Instructions and Specifications
10
ni.com
Protecting the Module from Flyback Voltages
If the module is switching an inductive or energy-storing device
such as a solenoid, motor, or relay, and the device does not have
flyback protection, install an external flyback diode as shown in
Figure 4.

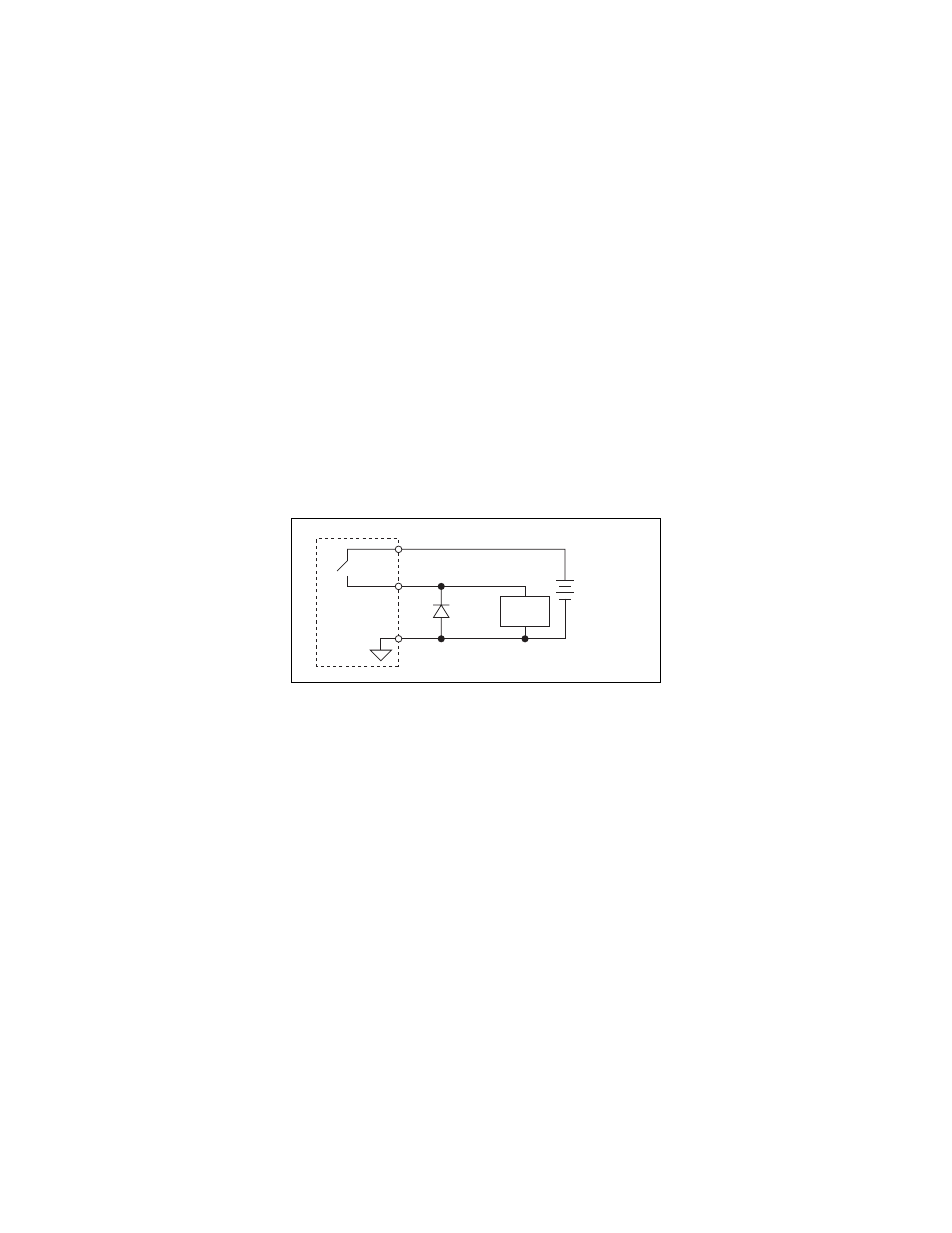

Figure 4. Connecting a Flyback Diode to the NI 9476
External
Power
Supply
NI 9476
+
_
COM
V
sup
Inductive
Device
DO
Flyback
Diode
