5
W45-0536 / C / 09.06.06
Objects placed in front of the fireplace must be kept a
minimum of 48” from the front face of the unit.
Minimum clearance to combustible construction
from fireplace and vent surfaces:
f
ireplace framing -
0” to stand-offs (top, rear and sides)
fireplace finishing - 4” from the sides of firebox opening
21 3 / 4
” to top of fireplace opening.
vent pipe - 2 inches*
recessed depth - 22
1 / 4 inches
* The first 2 feet of outer 7 inch diameter vent pipe from the appliance
must be wrapped in the 1” thick insulation sleeve (supplied).
FOR YOUR SATISFACTION, THIS FIREPLACE HAS BEEN
TEST-FIRED TO ASSURE ITS OPERATION AND QUAL-
ITY! There must be a 1” air gap in addition to the insulation
sleeve. Maximum input is 6,000 BTU/hr for both natural
gas and propane. When the fireplace is installed at elevations
above 4,500ft, and in the absense of specific recommenda-
tions from the local authority having jurisdiction, the certified
high altitude input rating shall be reduced at the rate of 4%
for each additional ,000ft. Maximum output for natural gas
is 16,150 BTU/hr at an efficiency of 62%; and 16,150 BTU/hr
for propane at an efficiency of 62%. Minimum inlet gas supply
pressure is 4.5 inches water column for natural gas and
inches water column for propane. Maximum inlet gas pressure
is 7 inches water column for natural gas and 3 inches water
column for propane. Manifold pressure under flow conditions
is 3.5 inches water column for natural gas and 0 inches water
column for propane.
This fireplace is approved for bathroom, bedroom and bed-
sitting room installations and is suitable for mobile home
installation. The natural gas model can only be installed in
a mobile home that is permanently positioned on its site and
fueled with natural gas.
This fireplace may be installed in an aftermarket permanently
located, manufactured (mobile) home, where not prohibited
by local codes.
This fireplace is only for use with the type of gas indicated
on the rating plate. This fireplace is not convertible for use
with other gases, unless a certified kit is used.
No external
e l e c t r i c i t y
(110 volts or
24 volts) is re-
quired for the
gas system op-
eration.

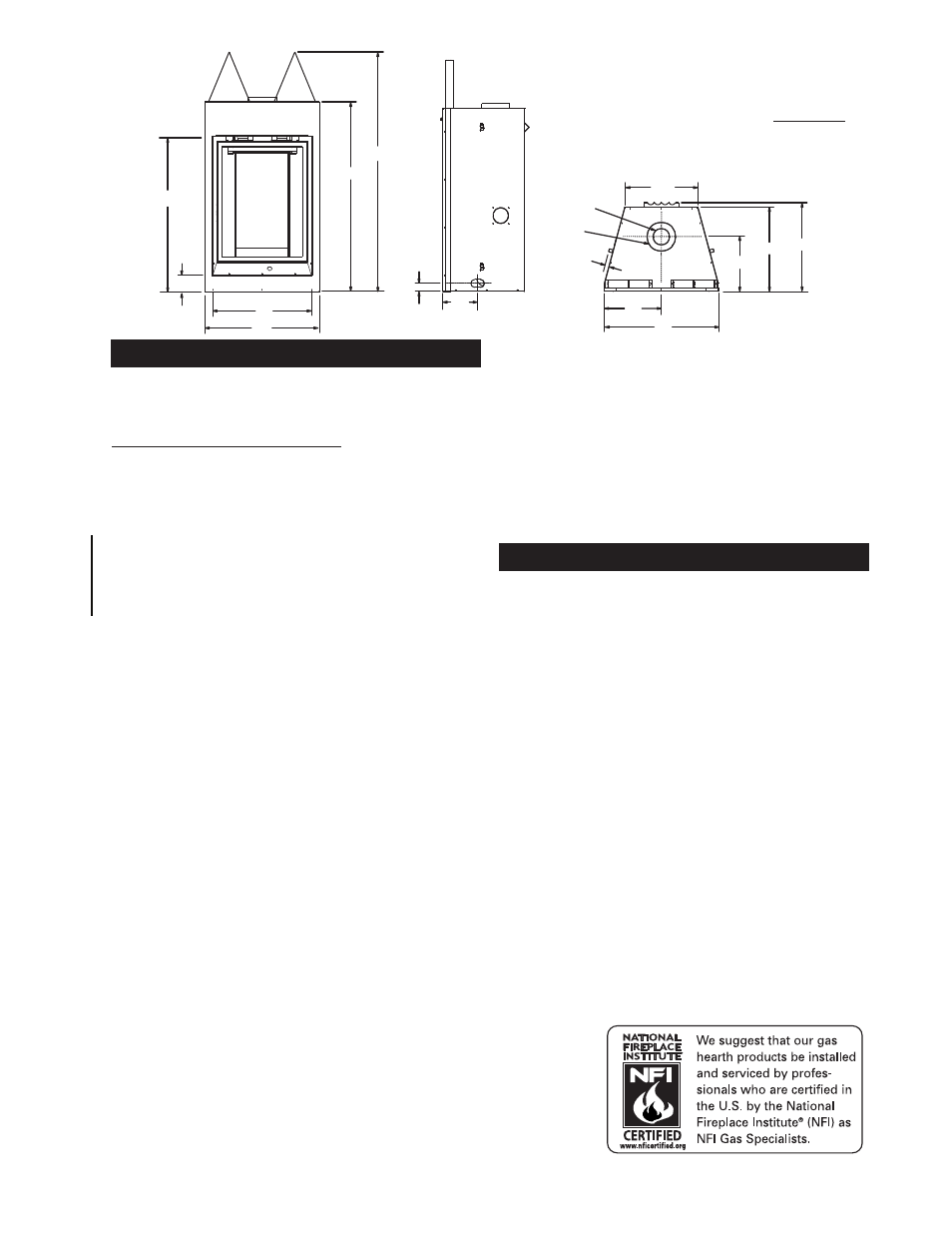

figure 1
THIS gAS FIREPLACE SHOULD BE INSTALLED AND SER-
VICED BY A QUALIFIED INSTALLER to conform with local
codes. Installation practices vary from region to region and it
is important to know the specifics that apply to your area,
for example: in Massachusetts State:
• The fireplace damper must be removed or welded in the
open position prior to installation of a fireplace insert or
gas log.
• A carbon monoxide detector is required in all rooms containing
gas fired appliances.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches.
• The appliance is not approved for installation in a bedroom or
bathroom unless the unit is a direct vent sealed combustion
product.
• WARNING: This product must be installed by a licensed
plumber or gas fitter when installed within the
commonwealth of Massachusetts.
In absence of local codes, install to the current CAN/CGA
-B49 Installation Code in Canada or to the National Fuel
Gas Code, ANSI z3., and NFPA 54 in the United States.
Suitable for mobile home installation if installed in accordance
with the current standard CAN/CSA z40MH Series, for gas
equipped mobile homes, in Canada or ANSI z3. and NFPA
54 in the United States.
The fireplace and its individual shutoff valve must be discon-
nected from the gas supply piping system during any pressure
testing of that system at test pressures in excess of / psig
(3.5 kPa). The fireplace must be isolated from the gas supply
piping system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping system
at test pressures equal to or less than / psig (3.5 kPa).
When the fireplace is installed directly on carpeting, vinyl tile
or other combustible material other than wood flooring, the
fireplace shall be installed on a metal or wood panel extending
the full width and depth.
The optional heat circulating blower is supplied with a cord. If
installed, the junction box must be electrically connected and
grounded in accordance with local codes. In the absence of
local codes, use the current CSA C. CANADIAN ELEC-
TRICAL CODE in Canada or the ANSI/NFPA 70 NATIONAL
ELECTRICAL CODE in the United States.
Purge all gas lines with the glass door of the fireplace open.
Assure that a continuous gas flow is at the burner before
closing the door.
Under extreme vent configurations, allow several minutes
(5-15) for the flame to stabilize after ignition.
Provide adequate ventilation and combustion air.
Provide adequate accessibility clearance for servicing and
operating the fireplace. Never obstruct the front opening of
the fireplace.
GENERAL INSTRUCTIONS
GENERAL INFORMATION
22 1 /
8
"
21"
4" DIA.
7" DIA.
17 3 /
4
"
13 7 /
8
"
28"
14"
7 /
8
"
46"
58"
2"
8 7 /
8
"
28"
37 5 /
8
"
24"
5"
