Spacers are attached to the inner flex liner at predetermined intervals to maintain a 1-1/4” air gap to the outer flex liner. These
spacers must not be removed.
1. Fasten the roof support to the
roof using the screws provided.
The roof support is optional. In
this case the venting is to be ad-
equately supported using either an
alternate method suitable to the
authority having jurisdiction or the
optional roof support. (Fig.a)
2. Stretch the inner aluminum
flex liner to the required length.
Slip the liner a minimum of ” over the inner sleeve of the
air terminal connector and secure
with 3 #8 screws. Seal using a
heavy bead of the high temperature
sealant. (Fig.b)
3. Repeat using the outer aluminum
flex liner. (Fig.b)
4. Thread the air terminal connector
/ liner assembly down through
the roof. The air terminal must
be located vertically and plumb.
Attach the air terminal connector to
the roof support, ensuring that the
top of the air terminal is 6” above
the highest point that it penetrates
the roof. (Fig.c) if the attic space is
tight, we recommend threading
the Wolf steel vent pipe collar or
equivalent loosely onto the air
terminal assembly as it is passed
through the attic.
wall and make weather tight by
5. Apply a heavy bead of the
high temperature sealant, (W573-
0007 not provided), to the inside of
the 4” liner approximately ” from
the end. Slip the liner a minimum
of 2” over the fireplace vent collar
and secure with 3 #8 screws.
6. Using the 7” diameter flexible
aluminium liner,
apply sealant,
slide a mini -
mum of ” over
t h e f i r e p l a c e
combustion air
collar and se-
cure with 3 #8
screws.
1. Cut or frame a hole in an exterior wall with a minimum
round or square opening of
/ ” W x / ” H. Secure the
firestop spacer over the opening to the interior wall.
Secure the terminal to the terminal extension plate if required
(see figure 18). The cover plate of the GD-R terminal is
3”x3” and will cover the /” x /” opening but if the
opening is made any larger - the terminal extension plate is
required.
2. Stretch the 4” diameter aluminum flexible liner to the
required length taking into account the additional length
needed for the finished wall surface. Slip the liner a minimum
of ” over the inner sleeve of the air terminal and secure with
3 #8 screws. Apply a heavy bead of the high temperature
sealant.
3. Using the 7” diameter flexible aluminum liner, slide over
the outer combustion air sleeve of the air terminal and secure
with 3 #8 screws. Seal as before.
4. Insert the liners through the firestop maintaining the
required clearance to combustibles. Secure to the exterior
4
7
7
figure 18
Use only approved aluminum flexible liner kits
marked:
“Wolf Steel Approved venting” as
identified by the stamp only on the
7” outer liner.

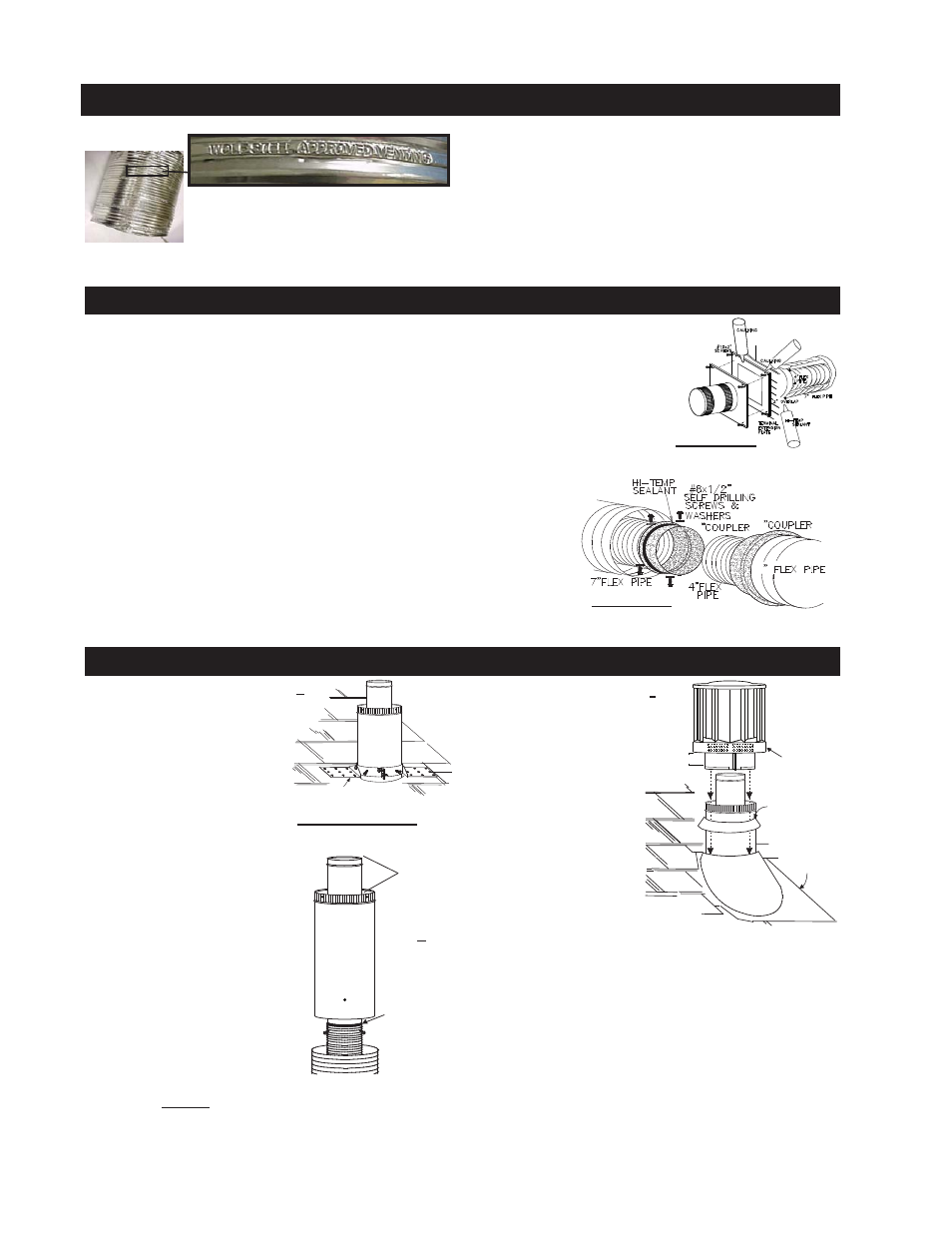

USING FLEXIBLE vENT COMPONENTS
HORIzONTAL AIR TERMINAL INSTALLATION
For safe and proper operation of the fireplace, follow the
venting instructions exactly.
All inner exhaust and outer intake vent pipe joists may
be sealed using either red rTv high temp silicone seal-
ant or Black high temp mill Pac with the exception of the
fireplace exhaust flue collar which must be sealed using
mill Pac (not supplied).
vERTICAL AIR TERMINAL INSTALLATION
figure 19a,b&c
ROOF SUPPORT
a
do not clamp tHe
flexible
AlUmiNiUm liNer.
AIR
TERMINAL
CONNECTOR
INNER FLEX
LINER
OUTER FLEX
LINER
INNER
SLEEVE
HIGH
TEMPERATURE
SEALANT
b
STORM COLLAR
FLASHING
CAULKING
WEATHER
SEALANT
2” AIR INLET
BASE
c
CAULKING
SCREWS
#10x2"
PIPE 7" FLEX
2" OVERLAP
4"FLEX
PIPE
SEALANT
SEALANT
HI-TEMP TERMINAL
EXTENSION
PLATE
CAULKING
figure 17
5. Remove nails from the
shingles, above and to the
sides of the chimney. Place
the flashing over the air
terminal connector leaving a
min. 3/4” of the air terminal
connector showing above
the top of the flashing. Slide
the flashing underneath the
sides and upper edge of
the shingles. Ensure that
the air terminal connector
is properly centred within
the flashing, giving a 3/4”
margin all around. Fasten to
the roof. Do not nail through
the lower portion of the
flashing. Make weather-tight by sealing with caulking. Where
possible, cover the sides and top edges of the flashing with
roofing material. (Fig.c)
6. Aligning the seams of the terminal and air terminal
connector, place the terminal over the air terminal connector
making sure the liner goes into the hole in the terminal.
Secure with the three screws provided. (Fig.c)
7. Apply a heavy bead of weatherproof caulking inches
above the flashing. Note: Maintain a minimum 2” space
between the air inlet base and the storm collar. Install the
storm collar around the air terminal connector and slide
down to the caulking. Tighten to ensure that a weather-tight
seal between the air terminal connector and the collar is
achieved. (Fig.c)
