. Carefully remove the glass door and all logs. (Refer to
the installation manual)
. Remove the two screws holding the front portion of the
rear air deflector
. Remove the pilot shield by removing the
two screws as illustrated. (Fig. 4)
3. Remove the 3 screws holding
the burner down and carefully
remove the burner. (Fig. 43)
4. Install t he right brick panel by sliding the bottom edge of
the panel down the right firebox side then pivot the top e
dge
of the panel into place against the firebox wall. Hold in place
with the brick retainers. (Fig. 44)
Note: Due to the brittle material of the bricks, care must
be taken not to bend or force them into place.
Note: Refractory panels require a 24 hour curing period
on a low flame.
3 2 1
HERRINGBONE PATTERN ILLUSTRATED
When shipped, the brick panels range in varying shades of
tan. During initial use, the panels will emit a slight odor for
a few hours. This is a normal condition that will not occur
again. Simply open a window to sufficiently ventilate the
room. The appearance of the panels will permanently
lighten in colour with use.
STEP
#3
5. Rest the bottom edge of the rear panel on top
of the rear portion of the air deflector at the back of
the firebox and push into place. The rear panel is
held in place when both side panels are in position.
6. Install the left brick panel us ing the same method
described in step 4.
7. Replace the burner, air deflector, logs and glass door.
STEP
#2
PILOT SHIELD
DECORATIvE BRICK PANEL INSTALLATION

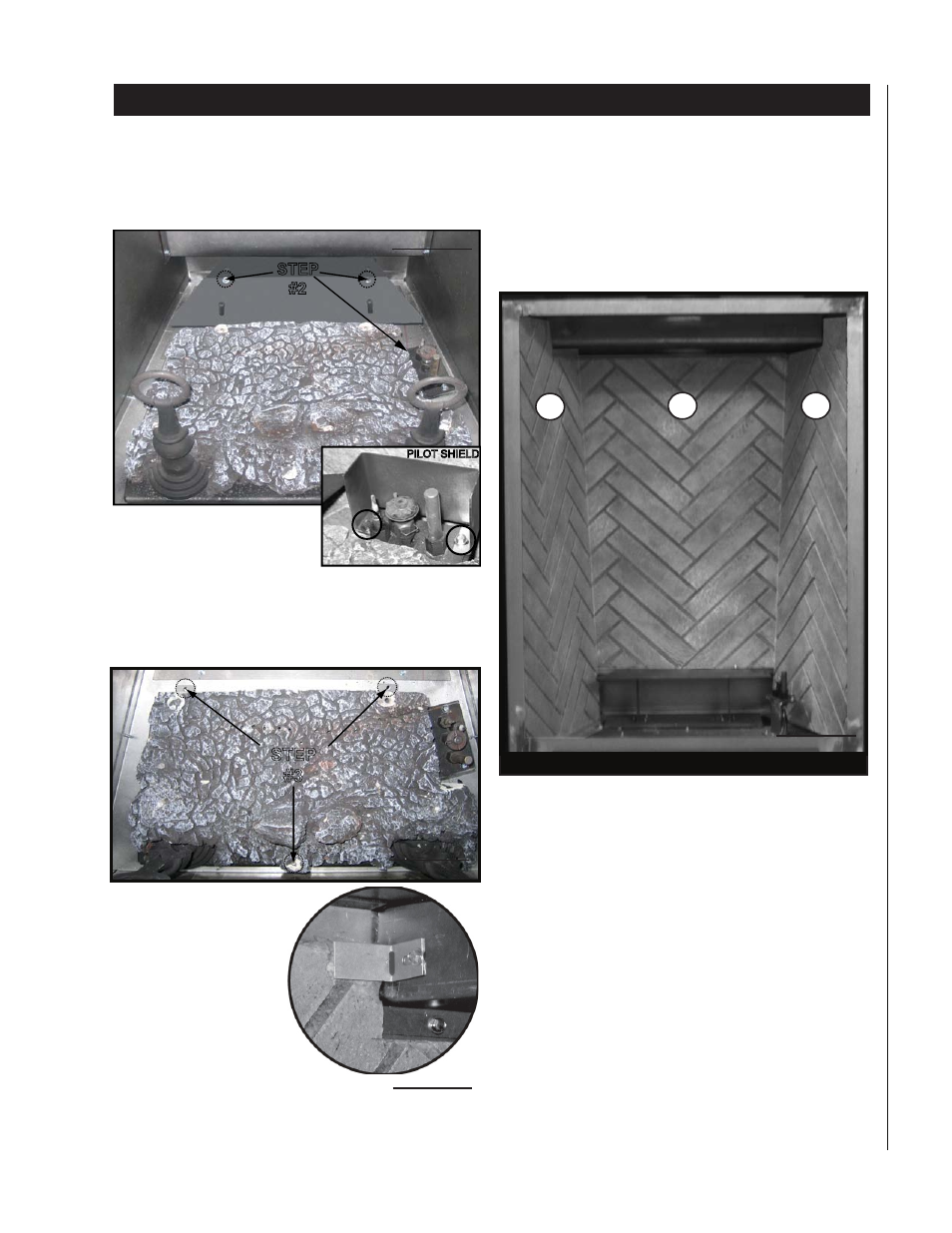

figure 42
