NTI RACKMUX RACKMOUNT ANSI TERMINAL DRAWER
3

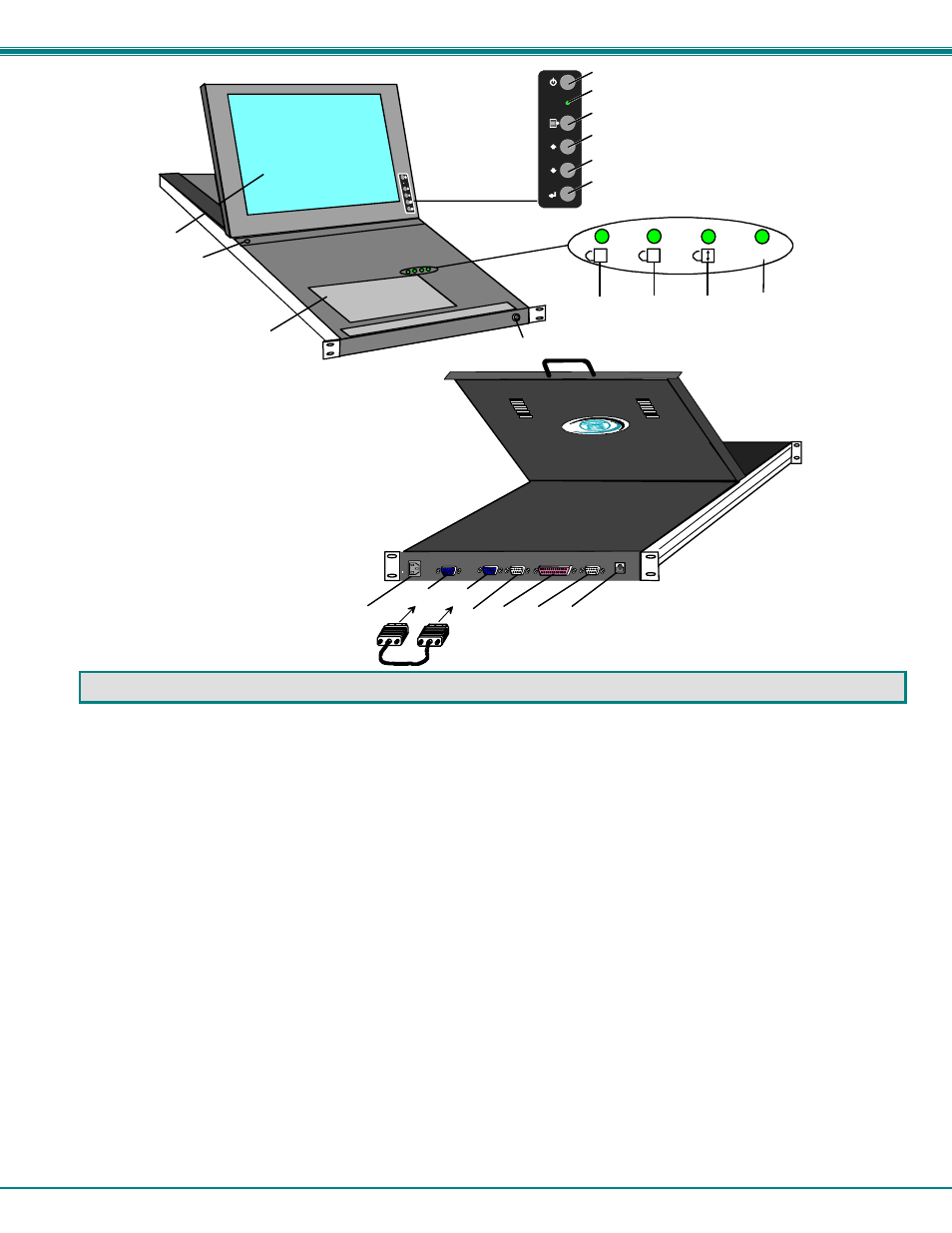

FEATURES AND FUNCTIONS
1.
Power Button-
press to turn the LCD monitor ON and OFF
2.
Power LED
- indicates operation status
Green=Power-On, Video Input Signal OK
Red = Suspend / Stand-by, or no Video Input Signal
3.
Menu Button- press to turn ON the OSD menu
4.
Up Arrow Button- press to move the cursor in the OSD menu up
5.
Down Arrow Button- press to move the cursor in the OSD menu down
6.
Select Button- press to select a menu item (when OSD menu is ON) or press to auto adjust the video quality (when OSD
menu is OFF)
7.
NumLock LED- illuminates when the number lock is ON
8.
CapsLock LED- illuminates when CapLock is ON
9.
Scroll Lock LED- illuminates when ScrollLock is ON
10.
Fn LED- illuminates when Function Features (page 43) are enabled.
11.
Keyboard- for manual data entry and computer control
12.
LCD Display- for viewing the video signal from the connected CPU
13.
Key Lock
- to secure the keyboard in a closed position preventing unauthorized use
14.
Auto Shut OFF Switch- automatically shuts OFF the LCD display when the monitor is folded down
15.
IEC Connector- for attachment of the IEC power cord to power the keyboard and mouse
16.
VGA
- for connection of the VGA cable from the MONITOR port for the LCD display
17.
Monitor
- for connection of the VGA cable to support the LCD display
18.
Serial #2
-male SUB D 9 connector- for attaching a local printer serially
19.
Parallel
- female SUB D 25 connector- for attaching local printer with parallel printer cable
20.
Serial #1
- male SUB D 9 connector- for attaching the serial interface cable from CPU
21.
10 Base T
- female RJ45 connector- for connecting 10 Base-T Cat 5 Ethernet cable
22.
VEXT-1,5-MM
- 1-1/2 foot 15HD male-male VGA cable- to connect the VGA port to the Monitor port
16
Rear View
RACKMUX-T15
17
18 19 20
15
21
22
12
Front View
RACKMUX-T15
11
13
14
1
A
9
8
7
Fn
10
1
2
3
4
5
6
