NTI RACKMUX RACKMOUNT ANSI TERMINAL DRAWER
48

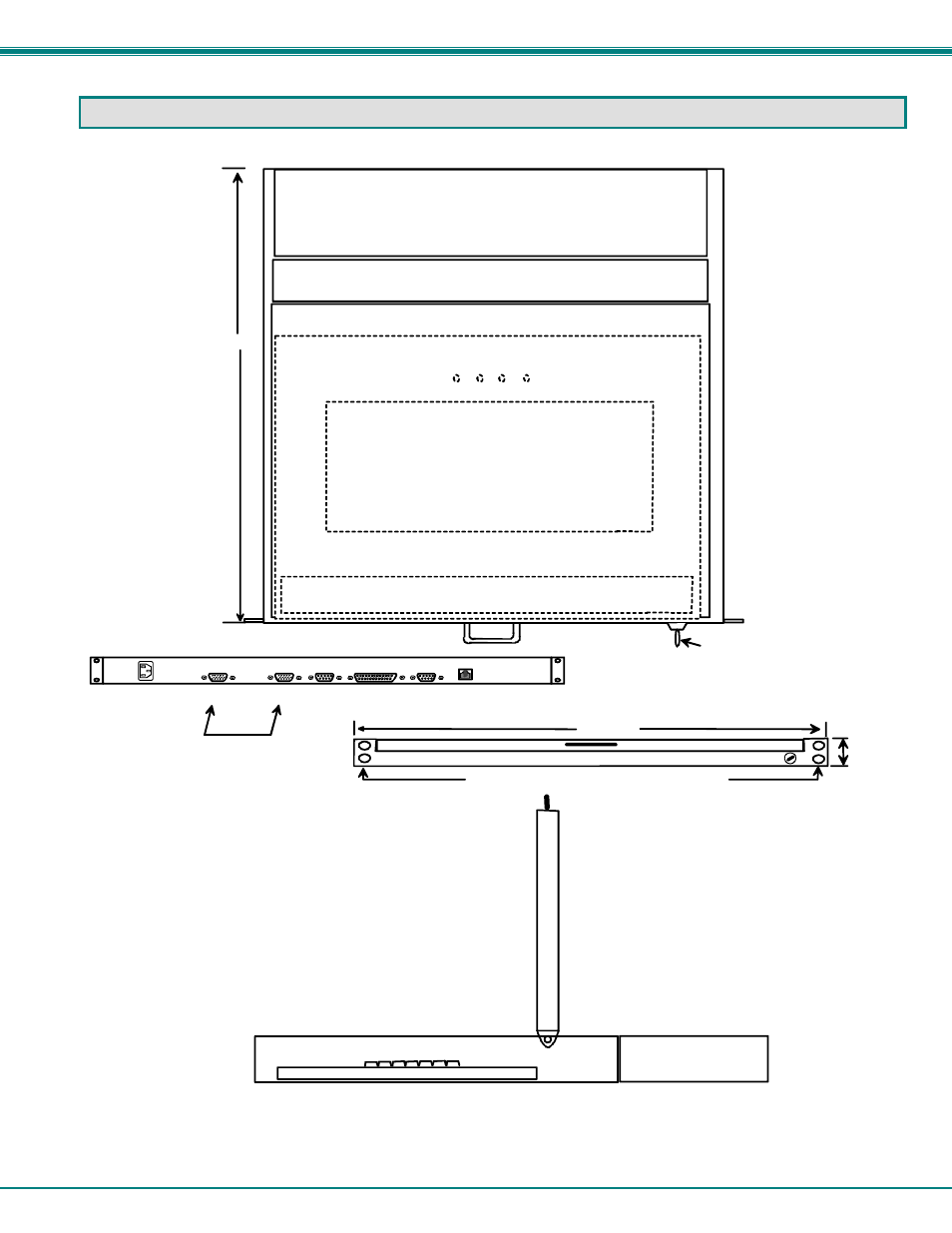

DIMENSIONAL DRAWINGS
1 . 7 5 IN .
1 9 .0 0 IN .
Front View of RACKMUX-T15
Slotted holes for securing terminal drawer to rack
15" LCD Display
2 1 .9 IN .
Rear View of RACKMUX-T15
VGA SERIAL 2 PARALLEL SERIAL 1 10BaseT IEC CONNECTOR MONITOR
(OUT) (IN)
Overhead View of RACKMUX-T15
Keyboard
Lock
Side View of RACKMUX-T15
CONNECT PORTS WITH
VEXT-1,5-MM (SUPPLIED)
Wristpad
