9.3 Other Uses of the Function Key
The Function ("
Fn
") key (page 43) will enable other standard keyboard features in addition to the Number Pad keys (page 44) .
Key Function when Fn key is
not locked ("Fn" LED is OFF)
Key Function when Fn key is
Locked ("Fn" LED is ON)
Numlck (Number lock)
Scr Lck (Scroll Lock)
Insert
Prt Sc (Print Screen)
Delete
Sys Rq (System Requirements)
Pause
Break
Up Arrow
Page Up
Down Arrow
Page Down
Left Arrow
Home
Right Arrow
End

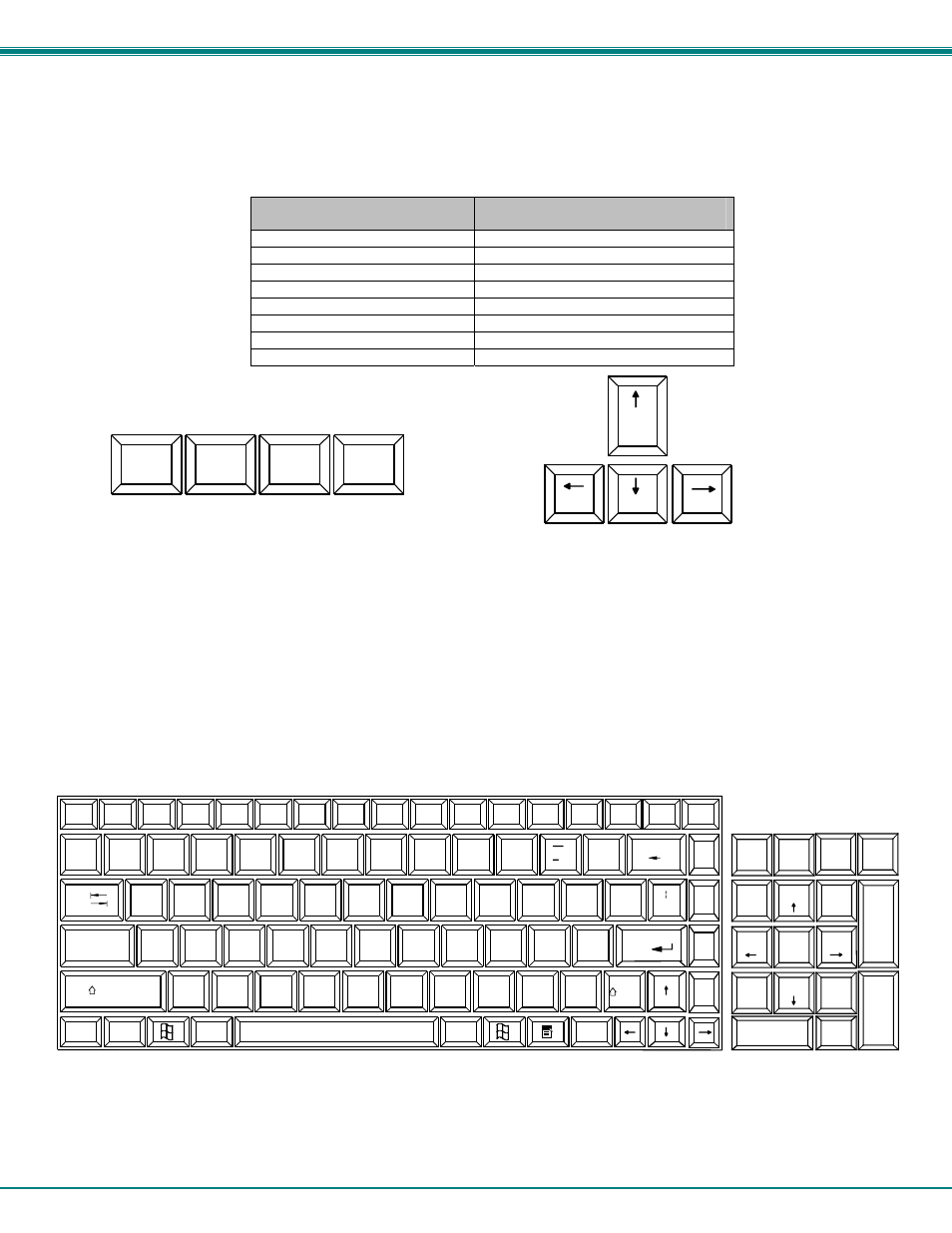

Figure 11- Additional multi-function keys
Note: The "Fn" key will also operate similar to the shift key (with only momentary effect).
9.4 Numeric Keypad Option
Models with the Numeric Keypad option (
-N
) (i.e. RACKMUX-T15-
N
) have a standard Windows keyboard with 17-key numeric
keypad.
Note: The “Fn” key is not an active key on this keyboard
.
Figure 12- U.S. (English) Keyboard with numeric keypad
