Realtek ALC888 Audio
Connecting the Speakers
W hen you have set the Multi-Channel Audio Function mode properly in the software
utility, connect your speakers to the correct phone jacks in accordance with the
setting in software utility.

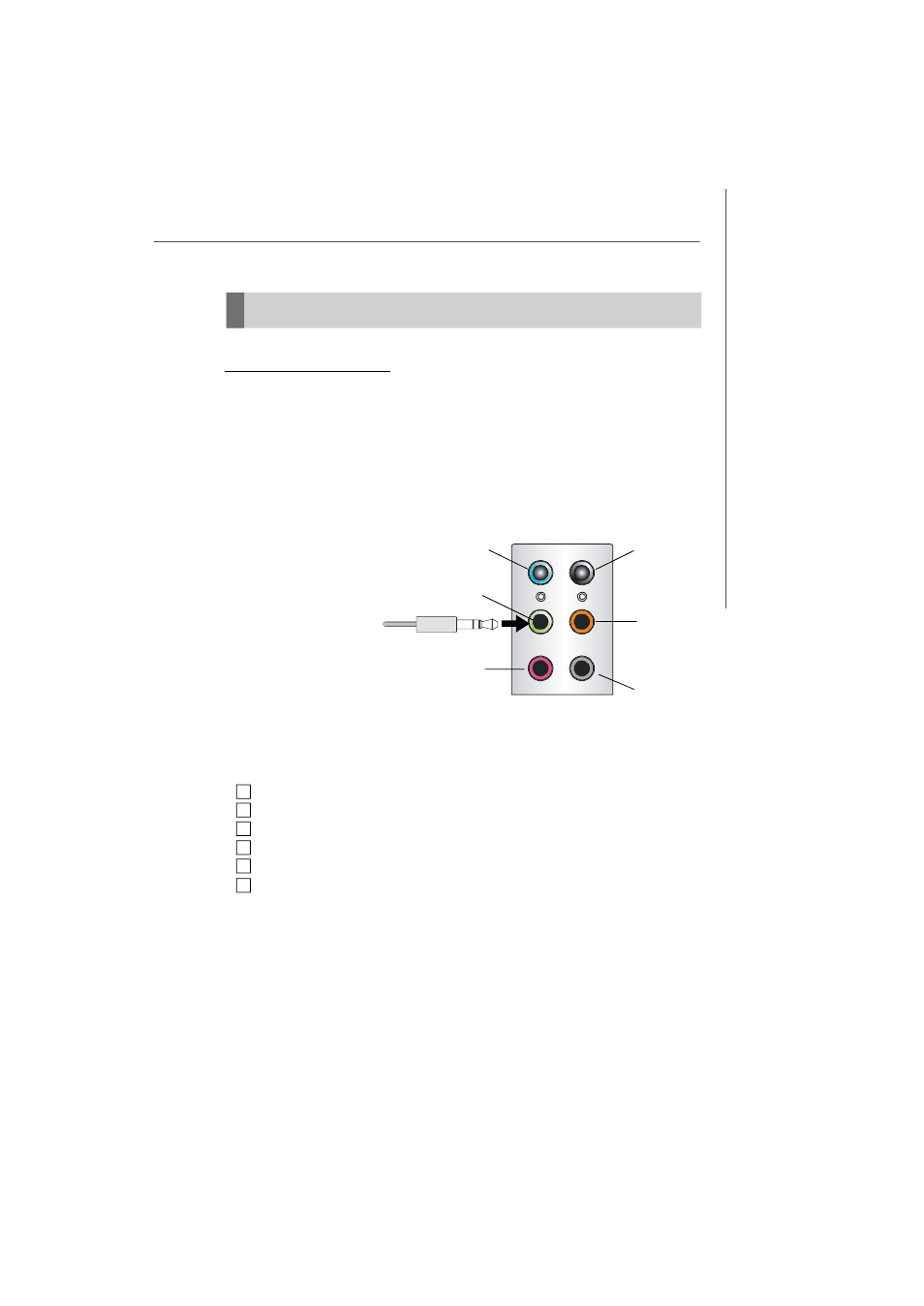

n 2-Channel Mode for Stereo-Speaker Output
1
Line In
2
Line Out (Front channels)
3
MIC
4
No function
5
No function
6
No function
Hardware Setup
3
1
2
6
4
5
